Assembly Instructions

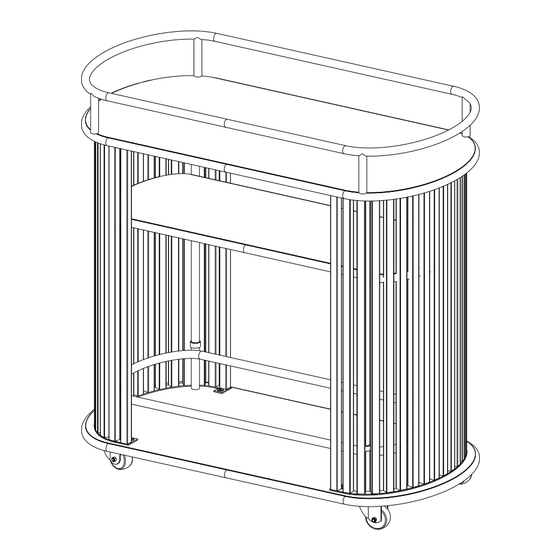

Fortaleza Rolling Bar Cart
SKU 629664
Thank you for your purchase. If you have any questions pertaining to the assembly of this
furniture piece, please contact the nearest World Market store. If you are not near a store,
please call our customer service call center toll free at 877-967-5362 for assistance.
ALL PRODUCTS SOLD AT WORLD MARKET ARE NOT
FOR COMMERCIAL USE AND ARE INTENDED FOR
RESIDENTIAL USE ONLY.
2023.09.25
PAGE 01
Advertisement
Table of Contents
Related Manuals for World Market Fortaleza 629664
Summary of Contents for World Market Fortaleza 629664
- Page 1 Thank you for your purchase. If you have any questions pertaining to the assembly of this furniture piece, please contact the nearest World Market store. If you are not near a store, please call our customer service call center toll free at 877-967-5362 for assistance.
-
Page 2: Component List
Component List LABEL PICTURE DESCRIPTION QTY. Top Shelf Bottom Shelf Middle Shelf Side Frame Non Locking Caster Locking Caster Hardware List PICTURE LABEL DESCRIPTION QTY. Flat Head Allen Bolt (M6 mm x 15 mm) Tool List PICTURE DESCRIPTION LABEL QTY. Allen Key 4 mm Wrench 10 mm PAGE 02... -
Page 3: Assembly Preparation
Assemble on a clean non-marring surface (such as the product’s packing foam). Do not discard any packaging until the product has been fully assembled. In case of missing parts, please contact your nearest World Market store or call our customer service call center at 1-877-967-5362. -
Page 4: Assembly Steps
Assembly Steps Step 1 (T-1) Allen Key (H-1) Flat Head Allen Bolt x 4 Place the Top Shelf (A) in upside down position on a padded non-marring surface. Insert Legs (E) & Align the hole of Top Shelf (A) with the pre-drilled holes of Legs (E). Secure connection using Allen Bolt (H-1) as shown, tighten it with the help of the provided Allen Key (T-1). - Page 5 Assembly Steps Step 3 (T-1) Allen Key (H-1) Flat Head Allen Bolt x 4 Carefully position the Side Frames (D) with the assembly as shown. Align the holes in the Side Frames (D) with the receiving holes in the Top Shelf (A). Engage all Allen Bolts (H-1) using the provided Allen Key (T-1).
- Page 6 Assembly Steps Step 5 (T-2) Wrench Tighten all hardware from previous steps. Insert Non-Locking/Locking Casters (F/G) into the assembly as shown. NOTE: it is suggested to install one Locking Caster (G) on each side of the assembly (Left and Right). They will not function as well if they are both on the same side.
- Page 7 Assembly Steps Step 7 Assembled View Locking Caster Assembly is now complete and the product is ready for use. Ensure the Locking Casters (G) are engaged when the Bar Cart is stationary. NOTE: Hardware may loosen over time. Periodically check that all connections remain tight and adjust as needed.
- Page 8 Outdoor Warnings All products sold at World Market are not for commercial use and are intended for residential use only. IMPORTANT: ALWAYS store furniture or use appropriate furniture covers during cold or inclement weather or during periods of non-use. WARNING: Small parts are a choking hazard. Adult supervision is required before, during, and after assembly.
- Page 9 Center, Toll Free at 877-967-5362. For valid warranty claims, World Market will repair or replace the product, or offer a full or par�al credit, in the sole discre�on of World Market. This LIMITED ONE-YEAR WARRANTY gives you specific legal rights and you may also have other rights which vary from state to state.
