Assembly Instructions

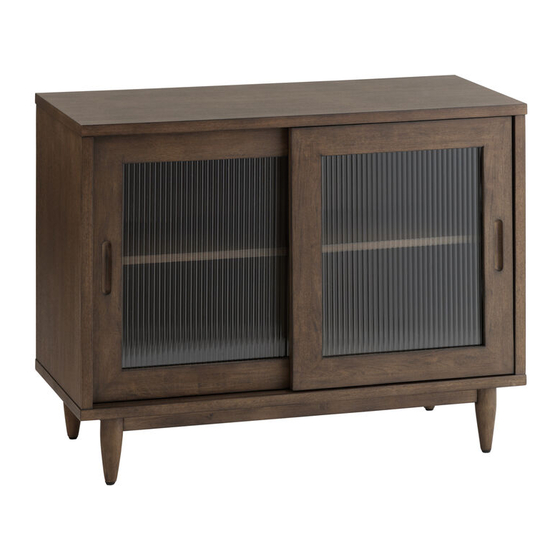

Kellen Low Fluted Glass Cabinet
SKU 626640
Thank you for your purchase. If you have any questions pertaining to the assembly of this
furniture piece, please contact the nearest World Market store. If you are not near a store,
please call our customer service call center toll free at 877-967-5362 for assistance.
ALL PRODUCTS SOLD AT WORLD MARKET ARE NOT
FOR COMMERCIAL USE AND ARE INTENDED FOR
RESIDENTIAL USE ONLY
2023.07.26
PAGE 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Kellen 626640 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for World Market Kellen 626640

  • Page 1 Thank you for your purchase. If you have any questions pertaining to the assembly of this furniture piece, please contact the nearest World Market store. If you are not near a store, please call our customer service call center toll free at 877-967-5362 for assistance.
  • Page 2: Component List

    Component List Q.TY LABEL PICTURE DESCRIPTION Top Frame FRONT Bottom Frame FRONT Left Side Frame Right Side Frame Divider Frame Support Rail Adjustable Shelf PAGE 2...
  • Page 3 Component List Q.TY LABEL PICTURE DESCRIPTION Left Back Panel Right Back Panel Left Sliding Door (Tempered Glass) FRONT Right Sliding Door (Tempered Glass) FRONT PAGE 3...
  • Page 4: Hardware List

    Hardware List Q.TY LABEL PICTURE DESCRIPTION Cam lock Ø15 mm Cam Screw Short Connecting Screw M7 x 50 mm Long Connecting Screw M7 x 70 mm Long Pan Head Screw M4 x 60 mm Shelf Pin Ø6 Short Pan Head Screw M3.5 x 15 Medium Flat Washer Ø6 x Ø19 x T1 mm Connector Bolt M6 x 10 mm...
  • Page 5: Tool List

    Tool List LABEL PICTURE DESCRIPTION Allen Key 4 x 110 x 30 mm Wrench 13 mm Triangle Phillips Screwdriver (Not Included) PAGE 5...
  • Page 6: Assembly Preparation

    Assemble on a clean non-marring surface (such as the product's packing foam). Do not discard any packaging until the product has been fully assembled. In case of missing parts, please contact your nearest World Market store or call our customer service call center at call 1-877-967-5362.
  • Page 7: Assembly Steps

    Assembly Steps Step 1 (H-2) Cam Screw x 8 (T-4) Phillips Screwdriver Step 1.1: FRONT OF PANELS Step 1.2: Make sure Cam Screws are tightened fully as shown IMPORTANT: Please make note of the different hardware sizes and ensure you are using the correct size hardware (bolts, screws, and washers) for each step.
  • Page 8 Step 2 (H-3) Short Connecting Screw x 3 (T-1) Allen key (H-4) Long Connecting Screw x 2 IMPORTANT: Please make note of the different hardware sizes and ensure you are FRONT using the correct size hardware (bolts, screws, and washers) for each step. Step 2.1: Step 2.2: Step 2.1: Using a second person to assist you, Install and secure Bottom Frame (B) to Right Side Frame (C-2) using...
  • Page 9 Step 4 (T-3) Triangle (T-1) Allen key (H-1) Cam Lock x 2 (H-3) Short Connecting Screw x 3 90° FRONT Triangle Step 4.2: Step 4.1: Follow arrow direction Step 4.1: Install Cam Locks (H-1) into the corresponding holes along Support Rail (E) as illustrated. Make sure arrows on Cam Locks point to the screw upon insertion.
  • Page 10 Step 6 (T-3) Triangle (T-1) Allen key (H-1) Cam Lock x 6 FRONT Triangle 90° Follow arrow direction Using a second person to assist you, carefully position Top Frame (A) onto the assembly. Align all of the cam screws (installed in Step 1) with their corresponding holes on Left/ Right Side Frame (C-1/ C-2) and Divider Frame (D) following the orientation directions above.
  • Page 11 Step 8 (H-9) Connector bolt x 2 (T-1) Allen key (H-10) Allen bolt x 2 H-10 (H-11) Large Flat washer x 2 H-11 FRONT Position Lids (K) to Left/Right Back Panels (G-1/G-2). Secure with Connector Bolts (H-9), Large Flat Washers (H-11) and Allen Bolts (H-10) using provided Allen Key (T-1), stacking the hardware through Back Panels in the order as shown.
  • Page 12 Step 10 (H-6) Shelf pin x 8 Step 10.1 Step 10.2 Step 10.2 FRONT Step 10.1: Using a second person to assist you, carefully turn assembly upright. Insert Shelf Pins (H-6) into the desired hole locations on Left Side Frame (C-1), Right Side Frames (C-2), Divider Frame (D). Step 10.2: Turn Adjustable Shelf (F) diagonally and carefully insert into position as shown, making sure they rest evenly on each Shelf Pin (H-6).
  • Page 13 Step 11 Step 11.2b Step 11.2a Step 11.1 NOTE: There are adjustment screws on the lower wheels as illustrated above. Turn the set screw clockwise to adjust the wheels INWARD which will decrease the gap between the bottom track and the bottom of the door. Adjust the set screw counter-clockwise to adjust the wheels OUTWARD which will increase the gap between the bottom track and the bottom of the door.
  • Page 14 Step 12: Leveling Instruction ADJUSTABLE LEVELER NOTE: Levelers can be used for adjustment if needed. If RIGHT DOOR appears higher than Adjust the FRONT LEFT leveler until the LEFT DOOR doors are even. LEFT RIGHT DOOR DOOR If LEFT DOOR appears higher than the Adjust the FRONT RIGHT leveler RIGHT DOOR until doors are even.
  • Page 15 Anti-Tip Measures WARNING Furniture tip overs can result in death or serious injuries. To reduce the likelihood of tip over, this product should be used with the enclosed Anti-Tip Kit. This Anti-Tip Kit is only a deterrent. It is not a substitute for proper adult supervision. Manufacturer and retailer assume no liability for improper installation or excess loads placed on screws, brackets, or straps.
  • Page 16: Care And Maintenance

    • Place heaviest items in the lowest drawers. Not intended for clothing storage use. All products sold at World Market are not for commercial use and are intended for residential use only. Care & Maintenance DO NOT put hot items directly on furniture surface.
  • Page 17 Customer Service Call Center, Toll Free at 877-967-5362. For valid warranty claims, World Market will repair or replace the product, or offer a full or par�al credit, in the sole discre�on of World Market. This LIMITED ONE-YEAR WARRANTY gives you specific legal rights and you may also have other rights which vary from state to state.
