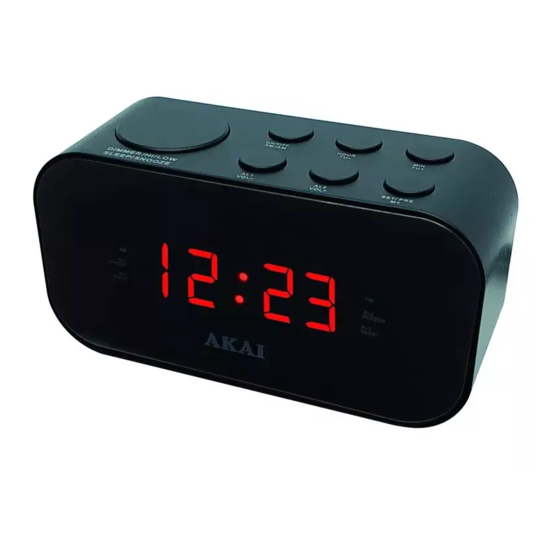

Akai ACR-3088 PORTABLE User Manual

EN - ENGLISH
DESCRIPTION
1. ON/OFF/FM/AM
2. HOUR/TU-
3. MIN/TU+
4. SLEEP/SNOOZE
DIMMER HI/LOW
5. AL 1 / VOL-
6. AL 2 /VOL+
7. SET/PRE M+
8. LED DISPLAY
9. BATTERY COMPARTMENT
10. SPEAKER
11. AC POWER CORD
12. WIRE ANTENNA
CONNECTING THE DEVICE
PLUG THE AC CORD INTO THE POWER OUTLET. WHEN ELECTRICAL POWER
HAS BEEN INTERRUPTED AND RESTORED, THE CLOCK DISPLAY WILL SHOW
THE TIME. MAKE SURE TO RESET BOTH THE CORRECT TIME AND ALARM
TIME FOR PROPER OPERATION.
TIME SETTING
ON TIME DISPLAY MODE, PRESS AND HOLD THE SET/PRE M+ (7), THEN THE
CLOCK DISPLAY WILL BLINK. PRESS THE MIN/TU+ (3) OR HOUR/TU- (2) TO
SET THE CLOCK DISPLAY TO THE CORRECT TIME. PRESS SET /PRE M+ (7)
AGAIN WHEN FINISHED THE SETTING, THE TIME DISPLAY WILL NOT BLINK.
IT IS 12-HOUR DISPLAY FORMAT, LED INDICATOR WILL LIGHT UP WHEN THE
DISPLAY TIME IS PM.
DISPLAY BRIGHTNESS
ON TIME DISPLAY MODE, USE THE DIMMER HI/LOW (4) TO ADJUST THE
DISPLAY BRIGHTNESS. SELECT FROM: LIGHT AND DARK.
RADIO OPERATION
1. UNCOIL THE WIRE ANTENNA (12).
2. PRESS ON/OFF (1) ONCE, IT WILL TURN ON THE RADIO.
3. PRESS FM/AM (1) TO SELECT FM OR AM RADIO.
4. WHEN THE RADIO IS TURN ON IN FM MODE, LED INDICATOR NEXT TO
"FM" WILL LIGHT UP. THE LED INDICATOR WILL OFF WHEN RADIO IS IN
AM MODE.
5. PRESS MIN/TU+ (3) OR HOUR / TU-(2) TO ADJUST YOUR DESIRED
FREQUENCY.
ACR-3088 PORTABLE
USER MANUAL
P. 1
6. PRESS AL 2/VOL + (6) TO INCREASE THE VOLUME, THE MAXIMUM LEVEL
UP TO LEVEL 16. PRESS AL 1/VOL-(5) TO DECREASE THE VOLUME, THE
MINIMUM LEVEL OF VOLUME IS LEVEL 0.
Note:
If the reception is too weak and there is interference on the received station, try to improve the reception
by altering the position and uncoiling or coiling the antenna.
MEMORY OPERATION
THE CLOCK RADIO CAN STORE 10FM PRESETS AND 10AM PRESETS.
1. ON RADIO PLAYING MODE, PRESS UP MIN/TU+ (3) OR HOUR / TU-(2) TO
CHOOSE YOUR DESIRED FREQUENCY.
2. PRESS SET/PRE M+ (7) FOR APPROX. 3 SECONDS, A PRESET NUMBER
WILL SHOW AND FLASH ON THE LED DISPLAY (8). THEN SHORT PRESS
HOUR/TU- (2) OR MIN/TU+ (3) TO SELECT YOUR DESIRED MEMORY
NUMBERS FROM P1 TO P10.
3. SELECT A PRESET LOCATION WITH BUTTONS MIN/TU+ (3) OR HOUR/TU-
(2). PRESS THE SET/PRE M+ BUTTON ONE MORE. THE STATION IS
PRESET.
REPEAT THE ABOVE STEPS, YOU CAN STORE YOUR DESIRED STATIONS.
AFTER SETTING IS OK, PRESS SET/PRE M+ (7) TO SELECT YOUR PRESET
FREQUENCY TO ENJOY RADIO BROADCASTING.
ALARM FUNCTION
•
SET THE CORRECT VOLUME AND THE STATION AHEAD OF THE TIME.
THE DEVICE SWITCHES ON WITH THE LAST SET VOLUME.
•
WHEN THE ALARM TIME IS REACHED, A DOT FLASHES NEXT TO "AL1
BUZZER" OR "AL1 RADIO" AND "AL2 BUZZER" OR "AL2 RADIO".
SETTING OF THE ALARM (IN STANDBY MODE)
YOU CAN SET TWO ALARM TIMES AS BELOW PROCEDURES:
1. PRESS THE AL1/VOL- BUTTON (5) FOR APPROX. 3 SECONDS. THE
INDICATOR BEGINS TO FLASH.
2. SET THE HOURS WITH THE HOUR/TU- BUTTON (2) AND THE MINUTES
WITH MIN/TU+ BUTTON (3).
3. THEN USE THE AL1/VOL- BUTTON TO SELECT HOW YOU WANT TO
BE WOKEN UP. SELECT FROM:
• BUZZER
A BUZZER SOUNDS WHEN THE ALARM TIME IS REACHED. THE
VOLUME OF THE BUZZER CANNOT BE ADJUSTED.
• LAST HEARD RADIO FREQUENCY
AS SOON AS YOUR SET ALARM TIME IS SHOWN, THE RADIO
SWITCHES ON. THE LAST TUNED FM STATION PLAYS AT THE LAST
SET VOLUME.
4. AFTER YOU HAVE MADE THE SETTING, THE SELECTED ALARM TIME
FLASHES FOR CA. 3 SECONDS. THE ALARM TIME IS STORED. THEN
THE CURRENT TIME IS DISPLAYED.
TO SET THE SECOND ALARM TIME, REPEAT THE ABOVE STEPS WITH THE
AL2/VOL+ BUTTON (6).
