LITEMAX
SLO1941
Sunlight Readable 19" LCD Display
(1st Edition 8/5/2008 )
All information is subject to change without notice.
Approved by
Checked by
Prepared by
David
Ming
Jack
LITEMAX
Electronics Inc.
8F-2, No.133, Lane 235, Bau-chiau Rd.,
Shin-dian City, Taipei County, Taiwan R.O.C.
Tel : 886-2-8919-1858
Fax: 886-2-8919-1300
Homepage:
http://www.litemax.com.tw
Page 1
Advertisement
Table of Contents
Related Manuals for LITEMAX SLO1941
Summary of Contents for LITEMAX SLO1941
- Page 1 LITEMAX SLO1941 Sunlight Readable 19” LCD Display (1st Edition 8/5/2008 ) All information is subject to change without notice. Approved by Checked by Prepared by David Ming Jack LITEMAX Electronics Inc. 8F-2, No.133, Lane 235, Bau-chiau Rd., Shin-dian City, Taipei County, Taiwan R.O.C.
-
Page 2: Record Of Revision
Record of Revision Version and Date Page Old Description New Description Remark Page 2... -
Page 3: Table Of Contents
Content Record of Revision......................2 Content ..........................3 Introduction ........................4 Hardware Installation ......................4 The Display Timing......................6 The Display Outline Dimensions ..................7 The Display Controls......................8 The Screen Adjustment..................... 9 Quick Installation....................... 9 Troubleshooting Tips ....................... 10 LCD Specification......................11 Product Safety Precautions..................... -
Page 4: Introduction
Introduction Welcome to enjoy the fantastic sightseeing world. This new technology will bring you the whole new feeling about the “monitor”. We show here some of the major advantages of the LCD monitor. You will really find some other advantages when you use it. Hardware Installation This chapter will guide you the correct installation procedures of your LCD monitor. - Page 5 The following picture provides the connection outline Video Input Pin Assignment This section describes the pin assignment of the LCD’s video connector. It is called 15pin Mini D-sub connector. Pin No. Signal Connector Red Video Signal Green Video Signal Blue Video Signal N.C.
-
Page 6: The Display Timing
The Display Timing The following table displays optimum quality modes that the LCD monitor provides. If the other video modes are used, the monitor will stop working or display a poor quality picture. TIMMING MODE RESOLUTION 640x480@60Hz 640x480@72Hz 640x480@75Hz SVGA 800x600@56Hz 800x600@60Hz 800x600@72Hz... -

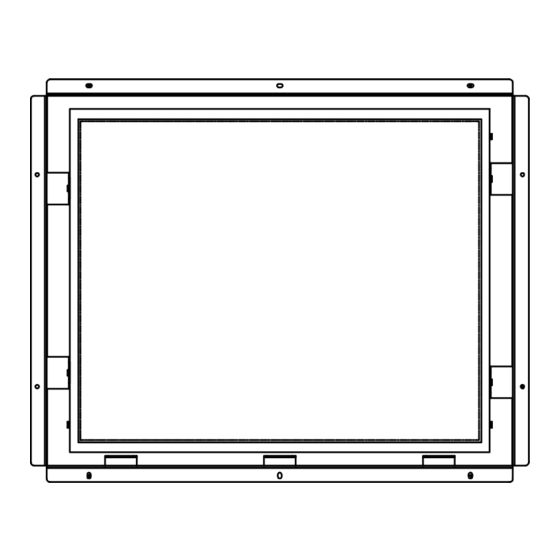

Page 7: The Display Outline Dimensions
The Display Outline Dimensions Unit: mm Page 7... -
Page 8: The Display Controls
The Display Controls Membrane Control Button POWER SWITCH: Pushing the power switch will turn the monitor on. Pushing it again to turn the monitor off. Power LED: Power ON-Green / Power off-No. Right/+ Key >: Increase item number or value of the selected item. Menu Key: Enter to the OSD adjustment menu. -
Page 9: The Screen Adjustment
The Screen Adjustment Main Menu You can adjust the brightness, contrast, display colors, the horizontal and vertical position of the display and OSD menu, etc. through the main menu display. OSD picture (may vary on different AD board.) The Down Key < and Up Key >are used to scroll through items within the menu. The selected item is highlighted as the scrolling move along. -
Page 10: Troubleshooting Tips
Troubleshooting Tips In the event that you experience trouble with your Display, check the following items before contacting the dealer from whom the Display was purchased. The most common problems usually involve an incorrectly an incorrect connection from the Video Card to the Display. -
Page 11: Lcd Specification
LCD Specification Model No. SLO1941 LCD Display 19" TFT LCD Module Display Area 376.32 (H) x 301.056 (V) mm Original Panel No. AUO M190EG02 Display Surface Non-glare hard coated 250 cd/m Luminance Resolution 1280 x 1024(SXGA) Contrast Ratio 800:1 Display Colors 16.7M colors... -
Page 12: Product Safety Precautions
Product Safety Precautions Follow all warnings and instructions marked on the product. Do not use this product near water. This display should be installed on a solid horizontal base. When cleaning, use only a neutral detergent cleaner with a soft damp cloth. Do not spray with liquid or aerosol cleaners.
