Installing The Rack Rails - Supero SuperServer 7042P-8R User Manual

Chapter 2: Server Installation

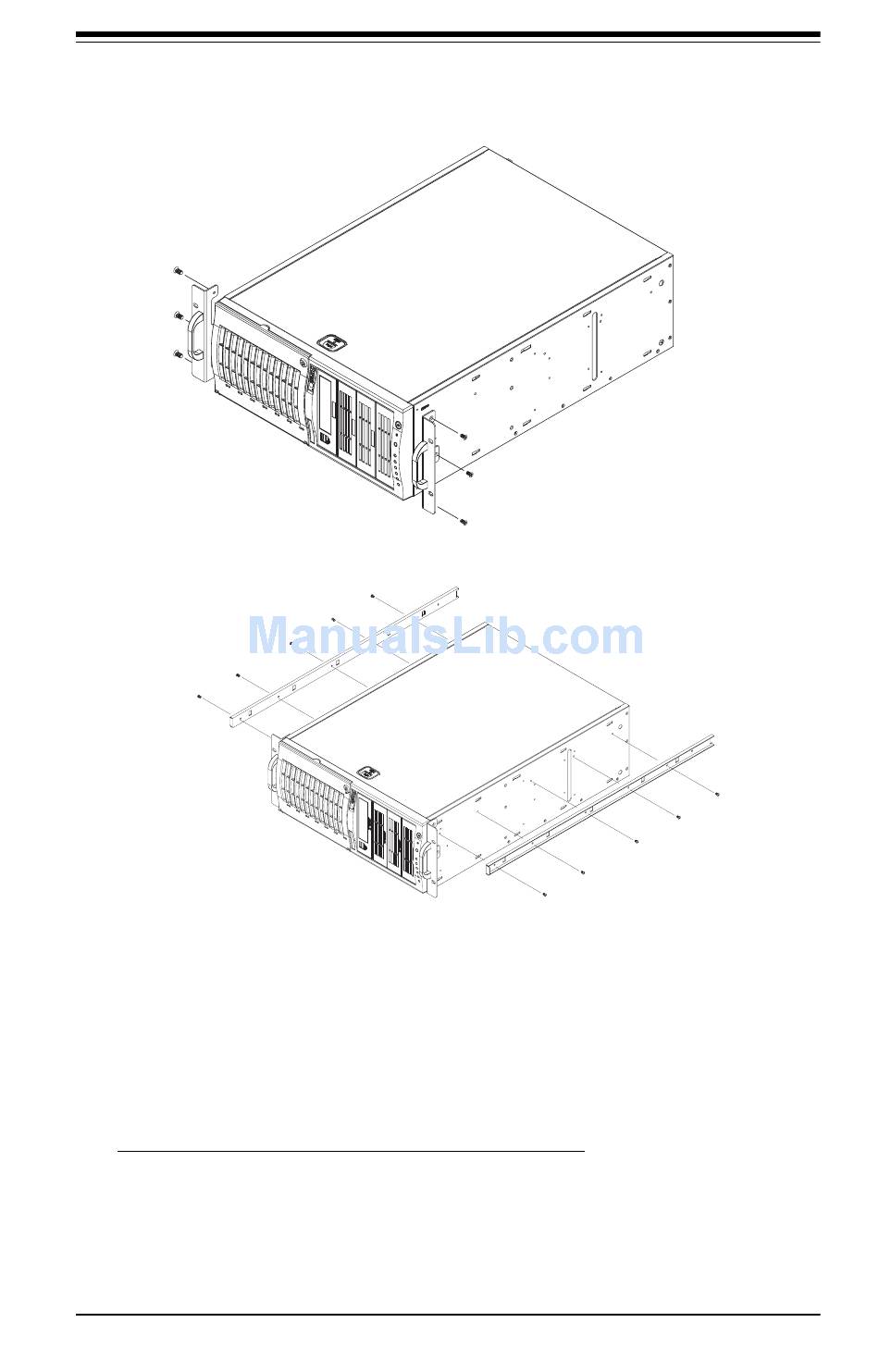

Figure 2-3. Installing the Rack Handles
Figure 2-4. Installing the Rails to the Chassis

Installing the Rack Rails:

Determine where you want to place the SuperServer 7042P-8R in the rack.
(See Rack and Server Precautions in Section 2-3.) Position the fixed rack
rail/sliding rail guide assemblies at the desired location in the rack, keeping
the sliding rail guide facing the inside of the rack. Screw the assembly
securely to the rack using the brackets provided. Attach the other assem-
bly to the other side of the rack, making both are at the exact same height
and with the rail guides facing inward.
