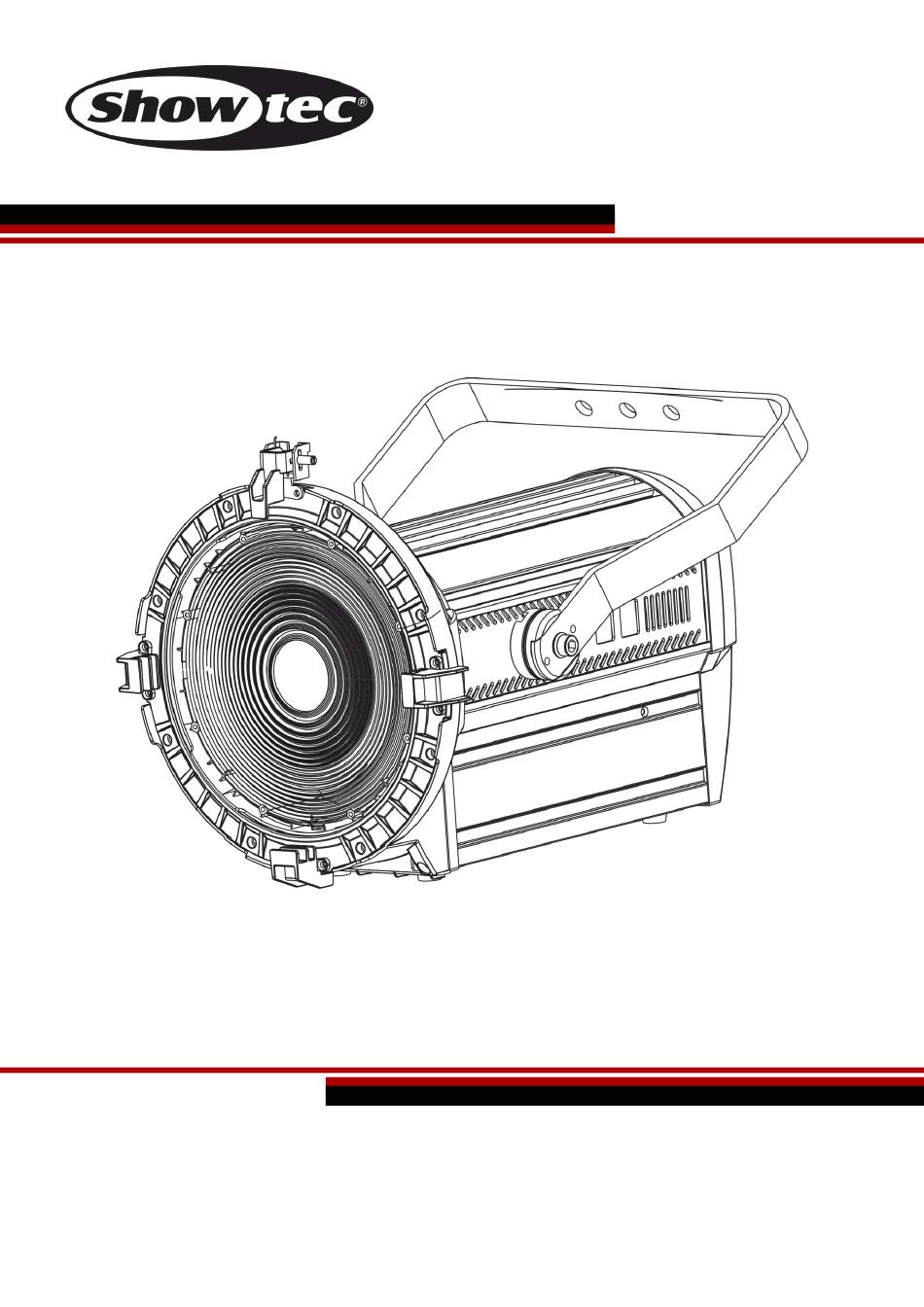

- Page 1 MANUAL ENGLISH Performer 3000 LED Ordercode: 33043 Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands...
-
Page 2: Table Of Contents
Performer 3000 LED Table of contents Warning ....................................2 Safety Instructions ................................. 2 Operating Determinations ............................4 Rigging .................................... 4 Connection with the mains............................5 Return Procedure ................................6 Claims ....................................6 Description of the device ..............................7 Features ..................................7 Overview .................................. -
Page 3: Warning
Save the carton and all packing materials. In the event that a fixture must be returned to the factory, it is important that the fixture be returned in the original factory box and packing. Your shipment includes: Showtec Performer 3000 LED 1 color frame ... - Page 4 • If your Showtec device fails to work properly, discontinue the use immediately. Pack the unit securely (preferably in the original packing material), and return it to your Showtec dealer for service.
-
Page 5: Operating Determinations
Performer 3000 LED • The user is responsible for correct positioning and operating of the Performer. The manufacturer will not accept liability for damages caused by the misuse or incorrect installation of this device. • This device falls under protection class I. Therefore it is essential to connect the yellow/green conductor to earth. -
Page 6: Connection With The Mains
Performer 3000 LED The Performer can be put on a flat stage floor or mounted to any kind of truss with a clamp. Connection with the mains Connect the device to the mains with the power-plug. Always check if the right color cable is connected to the right place. -
Page 7: Return Procedure
Performer 3000 LED Return Procedure Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued. Package must be clearly labeled with a Return Authorization Number (RMA number). Products returned without an RMA number will be refused. Highlite will not accept the returned goods or any responsibility. -
Page 8: Description Of The Device
Performer 3000 LED Description of the device Features The Showtec Performer 3000 LED is a theater spotlight fixture with high output and great effects. Light Source: 32 x 10W Cree White LED Input Voltage: 100-240V AC, 60/50Hz Power Consumption: 320W ... - Page 9 Performer 3000 LED Fig. 02 01) Barn door/lens cover 16) Tilt belt 02) Retaining clip 17) Rear cover 03) Fresnel lens 18) Rear plate 04) 5º frosted lens 19) Fuse T5AL/250V 05) Front cover 20) Control board 06) Top cover...
-
Page 10: Backside
Performer 3000 LED Backside Fig. 03 30) PowerCON power connector 100-240V IN 31) 3-pin DMX signal connector IN 32) 5-pin DMX signal connector IN 33) 3-pin DMX signal connector OUT 34) 5-pin DMX signal connector OUT 35) PowerCON power connector 100-240V OUT... -
Page 11: Installation
Performer 3000 LED Installation Remove all packing materials from the Performer 3000 LED. Check if all foam and plastic padding is removed. Connect all cables. Do not supply power before the whole system is set up and connected properly. Always disconnect from electric mains power supply before cleaning or servicing. -
Page 12: Control Modes
Performer 3000 LED Control Modes There are 3 modes: • Stand-alone • Master/Slave • DMX-512 (1CH, 2CH, 5 CH) One Performer (Stand-alone) 01) Fasten the effect light to a firm trussing. Leave at least 0,5 meter on all sides for air circulation. -
Page 13: Multiple Performers (Dmx Control)
Performer 3000 LED Multiple Performers (DMX Control) 01) Fasten the effect light to a firm trussing. Leave at least 0,5 meter on all sides for air circulation. 02) Always use a safety cable (ordercode 70140 / 70141). 03) Use a 3-pin XLR cable to connect the Performers and other devices. -
Page 14: Fixture Linking
Performer 3000 LED Fixture Linking You will need a serial data link to run light shows of one or more fixtures using a DMX-512 controller or to run synchronized shows of two or more fixtures set to a master/slave operating mode. The combined number of channels required by all the fixtures on a serial data link determines the number of fixtures the data link can support. -
Page 15: Control Panel
Performer 3000 LED The Performer 3000 LED can be operated with a controller in control mode or without the controller in stand-alone mode. Control Panel A) MENU button ENTER button C) DOWN button D) UP button ZOOM control LED display G) DIMMER control Fig. -
Page 16: Menu Overview
Performer 3000 LED Menu Overview Ordercode: 33043... -
Page 17: Main Menu Options
Performer 3000 LED Main Menu Options DMX-512 Mode Run Mode Zoom/Dimmer settings White color calibration General settings Motor reset 1. DMX-512 Mode In this mode you can set the DMX address. 01) While in the main menu, press the UP/DOWN buttons until the display shows 02) Press the ENTER button to open the menu. -
Page 18: White Color Calibration
Performer 3000 LED 4. White color calibration 01) While in the main menu, press the UP/DOWN buttons until the display shows 02) Press the ENTER button to open the menu. 03) If the display shows , you need to insert a key combination which will unlock the menu. -
Page 19: Dimming Curve Settings
Performer 3000 LED 5.1. Dimming curve settings 01) When the display shows , press the ENTER button to open the menu. 02) Press the UP/DOWN buttons to choose the desired dimming curve out of the 4 available options: 5.2. Dimmer speed 01) When the display shows , press the ENTER button to open the menu. -
Page 20: Performance Settings
Performer 3000 LED 5.5. Performance settings 01) When the display shows , press the ENTER button to open the menu. 02) Press the UP/DOWN buttons to toggle between the 3 modes: Default mode. It provides a compromise between output quality and noise level. -
Page 21: Reset Settings
Performer 3000 LED 5.10 Reset settings 01) When the display shows , press the ENTER button to enter the menu. The display will show 02) Insert the safety key combination by pressing the buttons in the following order: UP, DOWN, UP, DOWN, ENTER. -
Page 22: Cleaning
04) The electric power supply cables must not show any damages or material fatigue. The Performer 3000 LED requires almost no maintenance. However, you should keep the unit clean. Otherwise, the fixture’s light-output will be significantly reduced. Disconnect the mains power supply, and then wipe the cover with a damp cloth. -
Page 23: Troubleshooting
Suspect three potential problem areas as: the power supply, the LEDs, the fuse. 01) Power supply. Check if the unit is plugged into an appropriate power supply. 02) The LEDs. Return the Performer to your Showtec dealer. 03) The fuse. Replace the fuse. See page 21 for replacing the fuse. - Page 24 Performer 3000 LED Problem Probable cause(s) Solution • Check if power is switched on and One or more No power to the fixture fixtures do not cables are plugged in function at all Primary fuse blown • Replace fuse Fixtures reset The controller is not connected.
-
Page 25: Product Specifications
Performer 3000 LED Product Specifications Model: Showtec Performer 3000 LED Input Voltage: 100-240V AC, 60/50Hz Power consumption: 320W (full output) DMX linking: 30pcs Fuse: T5AL/250V Dimensions: 425 x 335 x 445 mm (LxWxH) Weight: 8 kg Operating and Programming: Signal pin OUT:... -
Page 26: Dimensions
Performer 3000 LED Dimensions Ordercode: 33043... -
Page 27: Notes
Performer 3000 LED Notes Ordercode: 33043... - Page 28 ©2017 Showtec...
