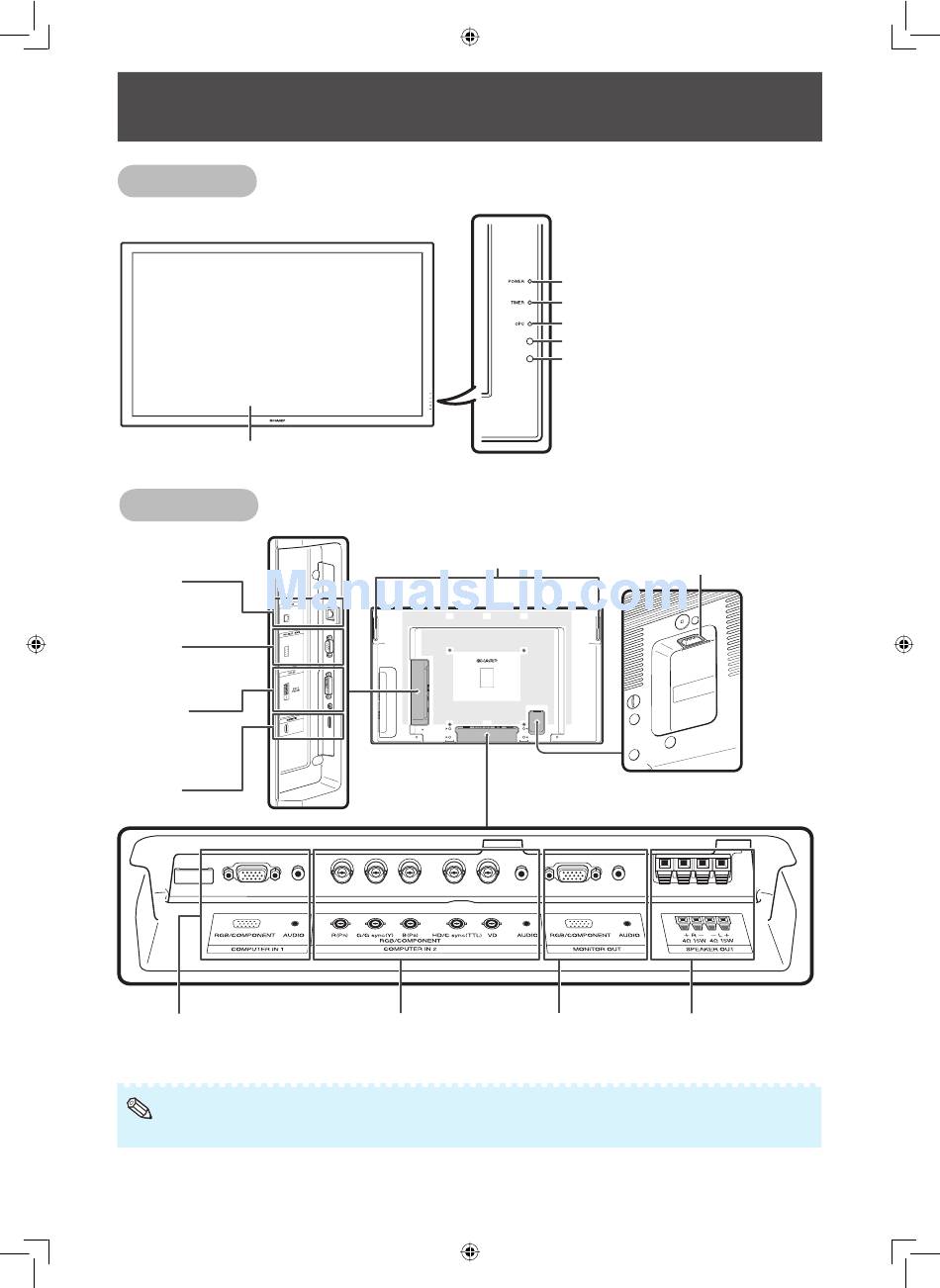

Front view

LCD panel

Rear view

LAN
terminal
(See page 20.)
RS-232C
terminal
(See page 20.)
DVI IN
terminals
(See pages
16, 17 and 18.)
HDMI
terminal
(See page 17.)
COMPUTER IN 1 terminals
(See pages 16, 17 and 18.)
Note
• The illustrations in this operation manual are for explanation purposes and may vary slightly from the actual operations.
10

Part Names

Handles
COMPUTER IN 2 terminals
(See pages 16, 17 and 18.)
POWER indicator (See page 23.)
TIMER indicator (See page 43.)
OPC indicator (See page 33.)
OPC sensor (See page 33.)
Remote control sensor (See page 22.)
AC input terminal
(See page 21.)
MONITOR OUT terminals SPEAKER OUT terminals
(See page 18.) (See page 19.)
