- Page 1 Riceter fvseries Grain Moisture Tester Riceter fv series Grain / Rice Moisture Tester Operating Manual...
- Page 2 Thank you for purchasing our Grain/Rice Moisture Tester, Riceter fv200 series. This tester can measure the moisture of grain by simple operation, but proper operation is necessary for accurate moisture measurement. Please read this operating manual carefully before use. Note: The pictures in this manual are examples and may differ from actual product.
-
Page 3: Table Of Contents
Table of contents Contents of Package ................2 Part Names ....................3 Description of Display ................. 4 How to Place Batteries ................ 6 Before Measurement ................7 Measurement ..................8 Average Value ..................15 Storage ....................16 Specifications ..................17... -
Page 4: Contents Of Package
Contents of Package Sample tray Spoon Cleaning brush Battery Carrying case (2 pcs) with tweezers (AA sizex4 pcs) <Option> Operating Inspection Rice husker Riceter manual certificate TR-130 J·m·f checker... -
Page 5: Part Names

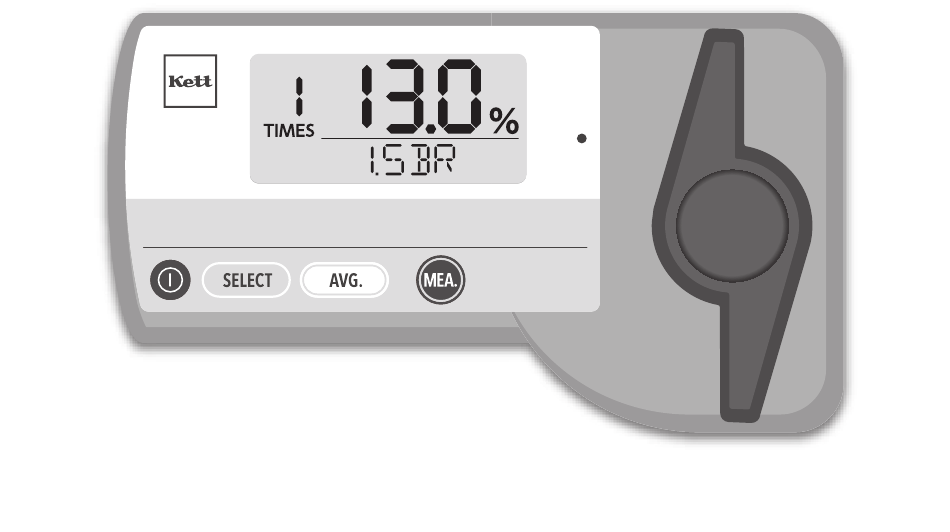

Part Names Display Handle stop mark Model No. Application table Testing Chamber Handle “POWER” button “MEA.” button (Measure) “SELECT” button “AVG.” button (Average) Note : Application table differs depending on the model number. Above example is fv201. -
Page 6: Description Of Display
Description of Display This tester adopts the auto power off Use of backlight in the display section function. The power of the tester is allows users to see the display clearly automatically turned off in approx. even in the dark. 5 minutes after turning on the power if no operation is performed. - Page 7 Description of Display Meanings of special marks The display may show marks as follows: Battery is dead. Replace the batteries with new ones. Battery mark Caution (displayed immediately after pressing the power switch and while using) Displayed when the measured result exceeded the upper limit of the Over mark Caution measurement range...
-
Page 8: How To Place Batteries
How to Place Batteries Take out the main unit Take out the batteries Open the battery box from the carrying case. from the battery holder. on the back side of the main unit, and place 4 batteries appropriately. -
Page 9: Before Measurement
How to Place Batteries Before Measurement Battery replacement Riceter fv200 series is equipped with a When the battery is running out, the temperature compensation function. bat ter y mark lights up the display. However, the test unit and samples Replace all 4 batteries (AA) with new are required to be thermally stabilized ones. -
Page 10: Measurement
Measurement Press the “POWER” button. All the characters and marks on the display section as well as the backlight light up for 2 seconds, and then model number and software version number are automatically displayed. The backlight goes out, and the tester becomes a standby state for measuring. - Page 11 Measurement The backlight turns off and “Application”, Press the "SELECT" button and repeat “Times”, “%” are displayed. It is ready until the abbreviation for the name for measurement. of the application you wish to test appears. The selected application is memorized even after turning off the power.
- Page 12 Measurement Put the test sample evenly in one layer on the sample tray. Note: Both the amount of sample is too much or insuf f icient may cause a measurement error. Over more, too Evenly in one layer on the sample tray much sample may cause wear on the ×...
- Page 13 Measurement Rotate the handle counterclockwise Note: Failure to observe this may cause the tip of the handle to damage the plastic to let the sample tray enter the portion of the sample tray. Be sure to testing chamber and insert it into the fully insert the tray.
- Page 14 Measurement Slowly rotate the handle clockwise. Press the "MEA." button, the decimal When the tip of the handle reaches point blinks, the backlight lights up, the sample (A), and fully rotate the the moisture content and measuring handle to the “handle stop mark” number are displayed thereafter.
- Page 15 Measurement For continuous measurement, perform After a lapse of 5 minutes, the power the next measurement while the last is automatically turned off and all the measured value is displayed. Replace the displayed items are cleared. test sample, fully rotate the handle, and Pressing the "POWER"...
- Page 16 Measurement Clean the inside of the testing chamber, the sample tray, and metal plate after every measurement. If the last test sample remains, proper measurement cannot be performed. For continuous measurement, disconnect the handle and remove the attached sample and contamination from the tip of the handle and contact section.
-
Page 17: Average Value
Average Value Pressing the "AVG." button after several Note1: To o b t a i n t h e a ve r a g e va l u e o f m o i s t u r e c o n t e n t s , p r e s s t h e measurements can obtain the average "AVG ."... -
Page 18: Storage
Storage Observe the following instructions to keep moisture tester for a long period of time: • Be sure to remove the batteries. • Clean every portion of the main body in a careful manner. Especially for the testing chamber, disconnect the handle and clean the inner contact section sufficiently. -
Page 19: Specifications
Specifications Measurement method : Electrical resistance Accuracy : 0.5% (SEC, 9-20% range), Environment without abnormal electromagnetic noise Operating temperature : 0 to + 40 °C Display : Digital LCD with backlight illuminator, Minimum display digit : 0.1% Number of applications : Refer to the application table Temperature correction : Automatic temperature correction with thermistor Automatic temperature : Unit and sample temperature correction... - Page 20 Notes ● Copying some or all of the contents of this user manual without prior written consent is strictly prohibited. ● The contents of this user manual may be changed at any time in the future without any prior notice. ● The appearance and/or representations of the products and parts depicted in this user manual may not ap- pear exactly as their actual counterparts, but this does not affect their operation or functionality. ● This user manual was intended to be written as clearly and accurately as possible. However, if you are unclear about anything in this user manual or notice any missing information, please contact us directly. ● We cannot be held responsible for any actions or effects resulting from the execution of any operations out- lined in this user manual. 1-8-1 Minami-Magome, Ota-ku, Tokyo 143-8507, JAPAN +81-3-3776-1121 +81-3-3772-3001 https://www.kett.co.jp/english/ overseas@kett.co.jp 060449-01...
