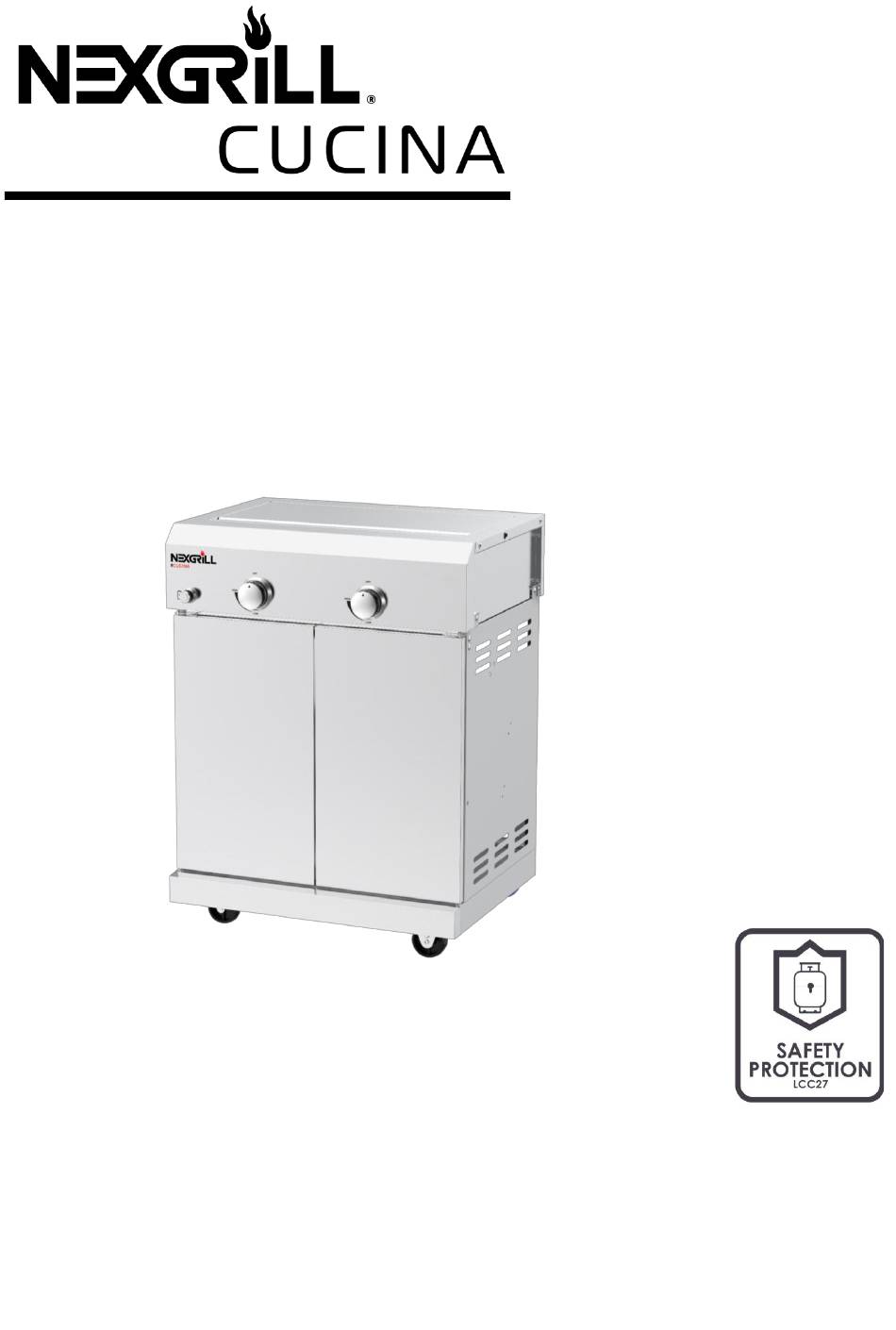

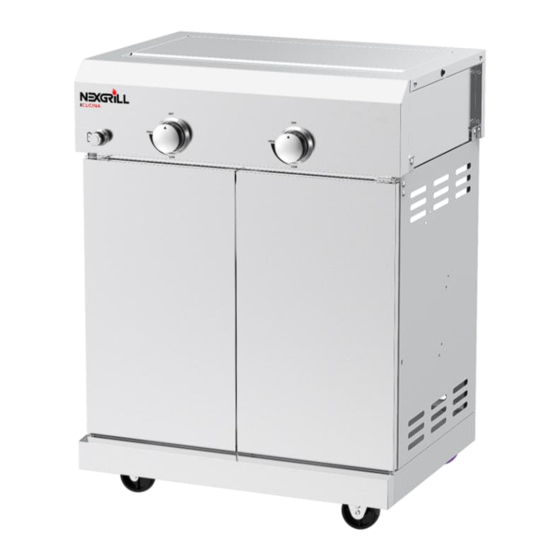

CUCINA SIDE BURNER MODULAR
Operating Instruction
Product code: CCNRANGEQ
Barbeques Galore customer care 1300 139 867,
Store locator 1 800 978 555.
THIS APPLIANCE IS DESIGNED TO SUIT ONLY LCC27 SAFETY GAS CYLINDERS. FOR LPG
CYLINDER USE, YOU WILL REQUIRE AN LCC27 VERSION GAS CYLINDER. CONTACT YOUR LOCAL
BARBEQUES GALORE STORE FOR MORE DETAILS.
FOR OUTDOOR USE ONLY. NOT FOR COMMERCIAL USE.
IMPORTANT, RETAIN FOR FUTURE REFERENCE: READ CAREFULLY.
720-1090 (LPG)
730-1090 (NG)
19001057A0
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Nexgrill CCNRANGEQ
Summary of Contents for Nexgrill CCNRANGEQ
- Page 1 CUCINA SIDE BURNER MODULAR Operating Instruction Product code: CCNRANGEQ Barbeques Galore customer care 1300 139 867, Store locator 1 800 978 555. THIS APPLIANCE IS DESIGNED TO SUIT ONLY LCC27 SAFETY GAS CYLINDERS. FOR LPG CYLINDER USE, YOU WILL REQUIRE AN LCC27 VERSION GAS CYLINDER. CONTACT YOUR LOCAL BARBEQUES GALORE STORE FOR MORE DETAILS.
-
Page 2: Table Of Contents
TABLE OF CONTENTS OUT DOO R GRILL USE …………………… .………………14 OUT DOOR GRILL SAFETY………………………… ..…………3 T ECHINCAL INFORM ATION …………………………………...4 Us ing Your Outdoor Gr ill ……………………….………….…14 OUT DOOR GRILL CARE ………………………………...……16 DIAGRAMMATICAL REPRESENTAT ION OF “OUTDOOR AREAS” …..………………………..…...….5 Replacing the Igniter Battery …….…………………..……..16 Loc ation Requir ements ………………………………...………6 General Cleaning ……………………………………….…..…16 Gas Supp ly Requirements ……………………..…………….6... -
Page 3: Outdoor Grill Safety
OUTDOOR GRILL SAFETY DANGER WARNING If you smell gas: Do not store or use gasoline or other flammable liquids or vapours in the • Shut off gas to the appliance. vicinity of this or any other appliance. • Extinguish any open flame. •... -
Page 4: T Echincal Inform Ation
Minimum clearance of BBQ to combustible surfaces is 92 cm at the rear, sides and 150 cm at the overhead. When using the BBQ with the hood closed, adjust burners to ensure the temperature does not exceed 220 ° C. Made in China. Keesung Manufacturing Co., Ltd. Vendor: Nexgrill Industries, Inc. -
Page 5: Diagrammatical Representation Of "Outdoor Areas
Diagrammatical Representation Of “Outdoor Areas” This appliance shall only be used in an above ground open-air situation w ith natural ventilation, w ithout stagnant areas, w here gas leakage and products of combustion are rapidly dispersed by w ind and natural convection. Any enclosure in w hich the appliance is used shall comply w ith one of the follow ing: An enclosure w ith w alls on all sides, but at least one permanent opening at ground level and no overhead cover (Figure 1). -
Page 6: Location Requirements
Gas Pressure Regulator Location Requirements The gas pressure regulator supplied w ith this grill must be used. Select a location that provides minimum exposure to w ind and The inlet (supply) pressure to the regulator should be as follow s traffic paths. -
Page 7: Gas Connection
Gas Connection NOTE: Alw ays keep the LPG cylinder at 90º (upright) orientation to provide vapor w ithdraw al. LPG Gas Bottle Some regulators push ON to connect and pull OFF to disconnect, w hereas others have a nut that either have a left-hand or a right-hand thread that connects to the cylinder valve. - Page 8 Turn the gas supply on at source by follow ing the Check and Adjust the Burners instructions specific to that regulator. Screw -on regulator The burners are tested and factory-set for most efficient Turn the valve handw heel, located at the cylinder, anti- operation.
-
Page 9: Gas Cov Ersion
GAS CONVERSIONS 720-1090 (LP), 730-1090 (NG) orifice sizes Liquid Propane (LP) Natural Gas (NG) Components Orifice Size (mm) MJ/h Orifice Size (mm) MJ/h Main Burner 1.02 13.5 13.5 IMPORTANT: The different burner valves in this grill have different Heat ratings. This means that the amount of gas coming from each orifice varies in order to create the Heat. - Page 10 Take out the Fire Box Assem bly Change Burner Value Orifices Remove the screw from the side panel. Remove the screw to take out the burners. Take out the burner. Remove the screw at the back. Use a 6 mm socket and w rench or 6 mm nut driver to remove the LP brass orifice from the end of gas valve.
- Page 11 Reinstall the Fire Box Assem bly Replace w ith the corresponding Natural Gas orifice. Replace the Fire Box Assembly. Reinsert the burner and ensure the burner insert to the value properly. Repeat the procedure for each main burner. Remove the screw at the back. Tighten the screw s located at the side panel.
- Page 12 Open the manual shutoff valve in the gas supply. The Make Gas Connection valve is open w hen the handle is parallel to the gas pipe. Check w ith your local gas supplier for NG conversion. NG gas regulator: RN1204A NG Hose: AG/ QH3 (Contact your distributor for details) A combination of pipe fittings must be used to connect the grill to the existing gas line.
- Page 13 Record Conversion Adjust High Flam e Setting Screw The LP appliance nameplate is located inside the grill cabinet When converting from LP Gas to Natural Gas, you w ill need to on the left-hand side. Once converted, place the NG appliance adjust the high flame setting screw for ideal burner flame nameplate as close as possible to the current LP appliance height.
-
Page 14: Outdoor Grill Use
OUTDOOR GRILL USE This manual covers several different models. The grill you have purchased may have some or all of the features listed. The locations and appearances of the features show n here may not match those of your model. Control Panel Ignition Button Main Burner Knob... - Page 15 Prepare the Grill for Lighting Manually Lighting Grill Burners Open the hood completely. Do not light burners w ith the Open the hood completely. Do not light burners w ith hood hood closed. closed. Make sure control knobs are turned to “OFF”. Do not lean over the grill.
-
Page 16: Outdoor Grill Care
OUTDOOR GRILL CARE EXTERIOR Replacing the Igniter Battery The quality of this material resists most stains and pitting, If igniters stop sparking, the battery should be replaced. providing that the surface is kept clean, polished, and covered. The igniter button cap is located on the outside of the grill’s Cleaning Method: right side panel. -
Page 17: Open A Nd Close Grill Door
OPEN and CLOSE GRILL DOORS Your grill door is equipped w ith push to open latch. Open Grill Doors To open the grill door, it take a gentle press on the door front. Then sw ing out the door. Close Grill Doors CLOSE the doors and press them to secure. -
Page 18: Troubleshooting
Excessive flare-ups TROUBLESHOOTING ▪ Is there excessive fat in the food being grilled? Keep flame on low or turn one burner off. Grill w ill not light Keep the hood up w hen grilling to avoid excessive flare- ups. ▪ Is the LPG bottle valve turned off? Move food to the w arming rack until flames subside. -
Page 19: Warrant Y
WARRANTY AND CONSUMER GUARANTEE Barbeques Galore Warranty is provided in addition to other rights and remedies as set out below under ‘Consumer Guarantees’. Warranty Term Subject to the conditions set out below , this product is w arranted to the purchaser to be free from defects in w orkmanship an d materials from the date of purchase for the terms specified below . -
Page 20: Repl Acem Ent Part S
720-1090 Replacement Parts... - Page 21 720-1090 PARTS LIST Part (Description) Part (Description) Side burner lid Rear panel Side burner cooking grid Side panel, right Side burner Cart frame, front Firebox rear panel Bottom panel Firebox top panel Push latch Swivel caster with brake Firebox left panel Swivel caster Firebox bottom panel Firebox right panel...
- Page 22 THIS PAGE INTENTIONALLY LEFT BLANK...
- Page 23 THIS PAGE INTENTIONALLY LEFT BLANK...
- Page 24 Contact your Barbeques Galore customer care at 1 300 139 867 for after sales service and support or the store locator at 1 800 978 555 .
