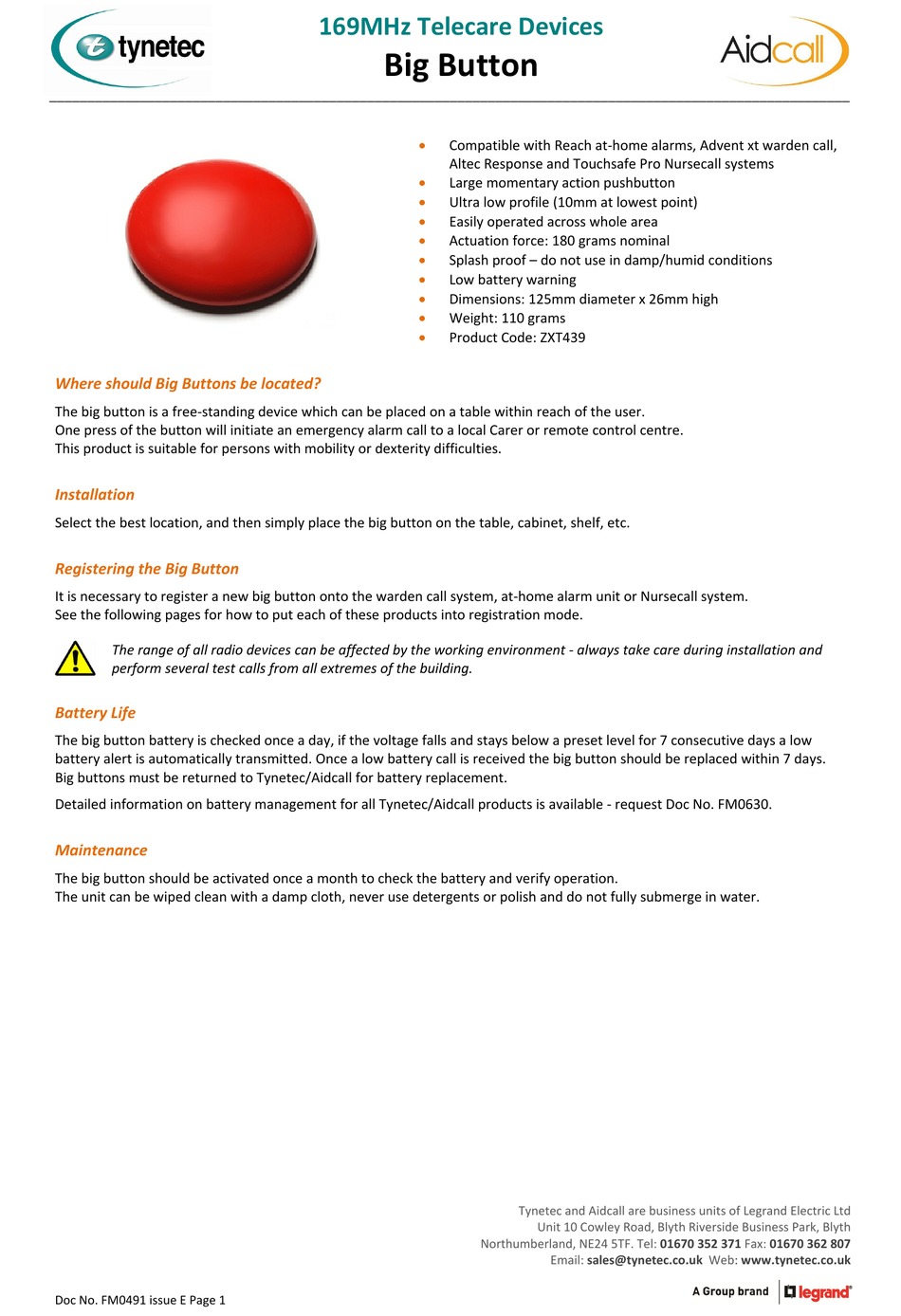

LEGRAND Tynetec Aidcall Big Button Manual

__________________________________________________________________________________________________________
Where should Big Buttons be located?
The big button is a free‐standing device which can be placed on a table within reach of the user.
One press of the button will initiate an emergency alarm call to a local Carer or remote control centre.
This product is suitable for persons with mobility or dexterity difficulties.
Installation
Select the best location, and then simply place the big button on the table, cabinet, shelf, etc.
Registering the Big Button
It is necessary to register a new big button onto the warden call system, at‐home alarm unit or Nursecall system.
See the following pages for how to put each of these products into registration mode.
The range of all radio devices can be affected by the working environment ‐ always take care during installation and
perform several test calls from all extremes of the building.
Battery Life
The big button battery is checked once a day, if the voltage falls and stays below a preset level for 7 consecutive days a low
battery alert is automatically transmitted. Once a low battery call is received the big button should be replaced within 7 days.
Big buttons must be returned to Tynetec/Aidcall for battery replacement.
Detailed information on battery management for all Tynetec/Aidcall products is available ‐ request Doc No. FM0630.
Maintenance
The big button should be activated once a month to check the battery and verify operation.
The unit can be wiped clean with a damp cloth, never use detergents or polish and do not fully submerge in water.
Doc No. FM0491 issue E Page 1
169MHz Telecare Devices

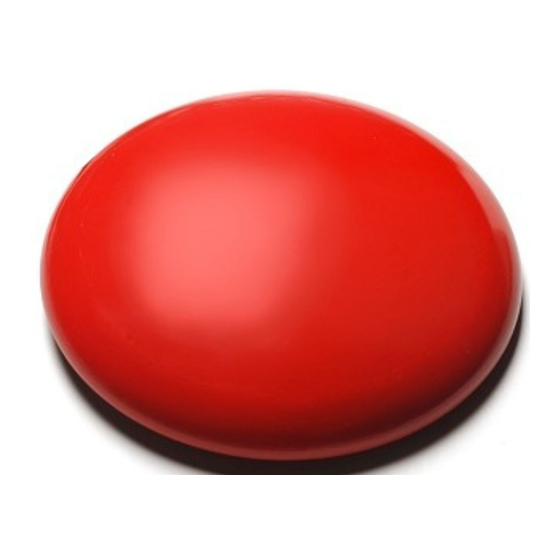

Big Button










Compatible with Reach at‐home alarms, Advent xt warden call,
Altec Response and Touchsafe Pro Nursecall systems
Large momentary action pushbutton
Ultra low profile (10mm at lowest point)
Easily operated across whole area
Actuation force: 180 grams nominal
Splash proof – do not use in damp/humid conditions
Low battery warning
Dimensions: 125mm diameter x 26mm high
Weight: 110 grams
Product Code: ZXT439
