Where should Carbon Monoxide Detectors be fitted?

Carbon Monoxide (CO) detectors should be installed in every room containing a fuel-burning appliance and every sleeping room.

Choosing a Location

When fitting in the same room as a fuel burning appliance the detector should be at a horizontal distance between 1 and 3m from
the potential source, if the room has a sloped ceiling it should be at the high side of the room.
If the detector is wall mounted, it should be at least 150mm below the ceiling and at a height greater than any door or window.
If the detector is ceiling mounted, it should be at least 300mm away from any wall or light fitting.
If fitted in sleeping rooms the detector should be located relatively close to the breathing zone of the occupants.
Do not mount the detector above any source of heat or steam.
Refer to the Manufacturer's instruction booklet for more information on positioning.

Typical Tools Required

Be careful when using step ladders – always face the direction you are working.
Always make sure the correct drill bits and screwdrivers are used.

How to Activate the Carbon Monoxide Detector

To activate the detector, remove the metal
disabling clip by pulling it out of the back of the unit.
Retain the disabling clip for future use.
When activated the green power light will flash
once every 60 seconds.

How to Install a Carbon Monoxide Detector

Make sure you have read and understood the
instructions on positioning the detector before starting.
To mount on a wall or ceiling; push-out the screw hole
blanking plugs in the rear with a screwdriver and
mark the position for the drill holes.
Please ensure that you use the screws and wall plugs
provided as they were chosen specifically for use
with this product.
Alternatively, the unit can be fixed with the self-adhesive
pads provided. Ensure the surface is smooth, clean and dry.
Press hard to make sure the self-adhesive pads are
properly adhered.
It can also be positioned free-standing on a shelf.
Doc No. FM0841 issue A Page 1

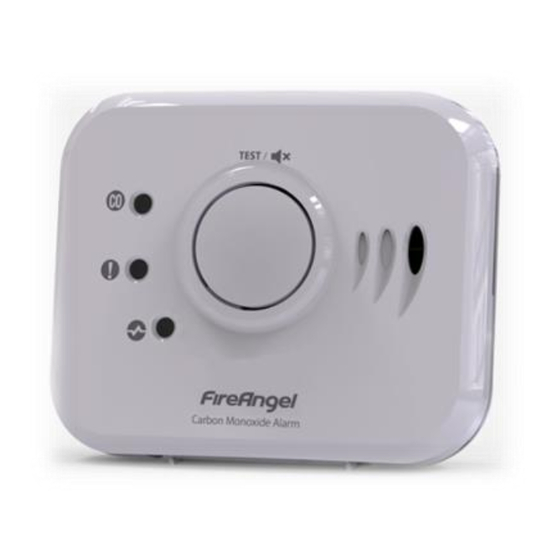

169MHz Telecare Devices
Carbon Monoxide Detector
•
•
•
•
•
•
•
•
•
•
•
Compatible with Reach at-home alarms, Advent xt warden call,
Altec Response and Touchsafe Pro Nursecall systems
Advanced electrochemical sensor technology
85dB @ 3m sounder
Indicator lights: red alarm, yellow fault & green power
10 year sealed for life Lithium battery
Low battery warning
Test & Silence button
Complies with BS EN 50291-1 & 2:2010 + A1:2012
Dimensions: 95mm x 114mm x 40mm (HxWxD)
Weight: 193 grams
Product Code: ZXT491
