Green Brook Orion ODM200 Important Safety Instructions

Microwave presence detector - ceiling mounted

Advertisement

Quick Links

Microwave Presence Detector - Ceiling Mounted
Please read these instructions carefully before installation and keep safe for future
reference.
IMPORTANT
This product should be installed by a competent person and in accordance with the
current IET Wiring Regulations and Building Regulations.
If in doubt,consult a qualified electrician.
Always turn off the mains supply before commencing work.
Switch the mains supply OFF first to prevent electric shock.
1.
Remove the transparent terminal cover by removing the small cross head screw and
levering off cover.
2.
Decide on mounting position of sensor in ceiling, and cut a 65mm hole, (ensure there
is no wiring/gas/water services directly behind the screws).
3.

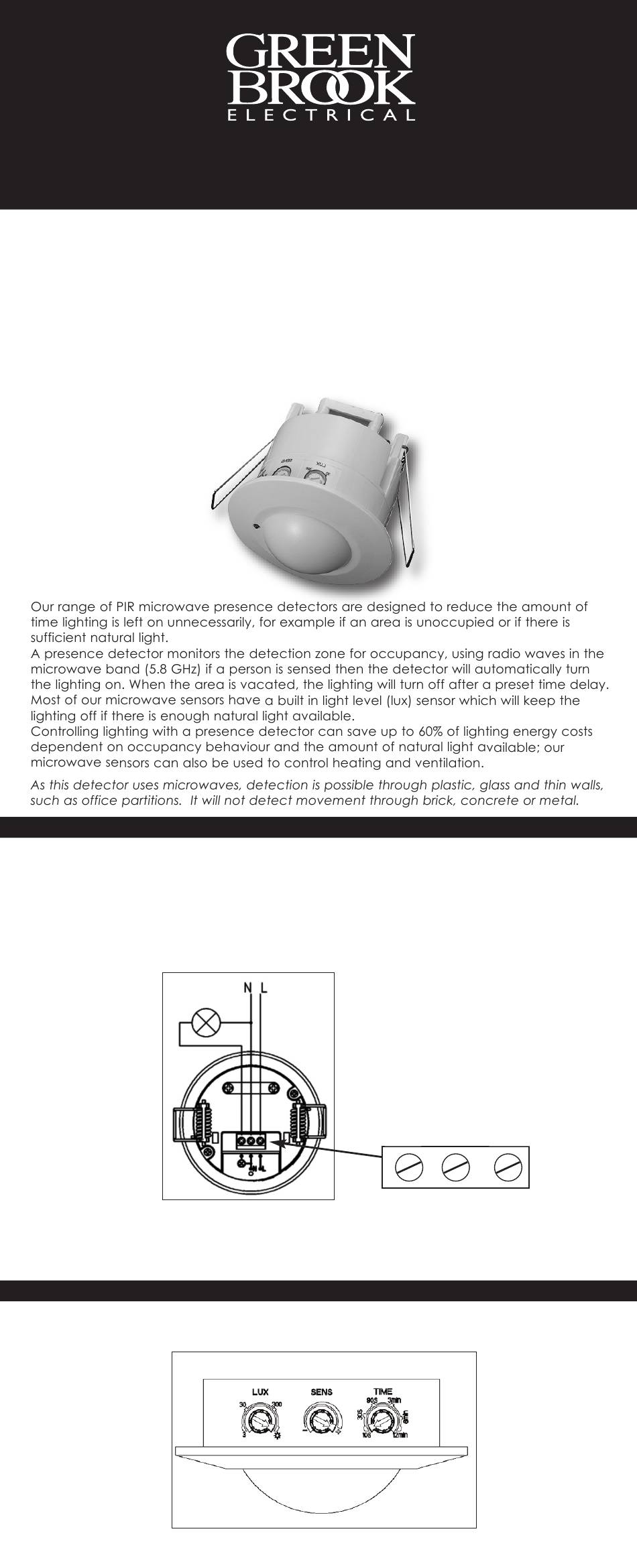

Connect the mains in and load out wires according to Dia:1.
Dia:1
Note:
Please refer to Data Sheet on the GreenBrook website -
www.greenbrook.co.uk for wiring sensor in parallel.
1. Turn 'Time' control fully anti-clockwise, 'Lux' control fully clock wise and 'Sens' control
fully clockwise refer to Dia:2.
Dia:2
'Orion Range'
Model: ODM200
Important Safety Instructions

INSTALLATION

TESTING

To
Load
Neutral
Live in
