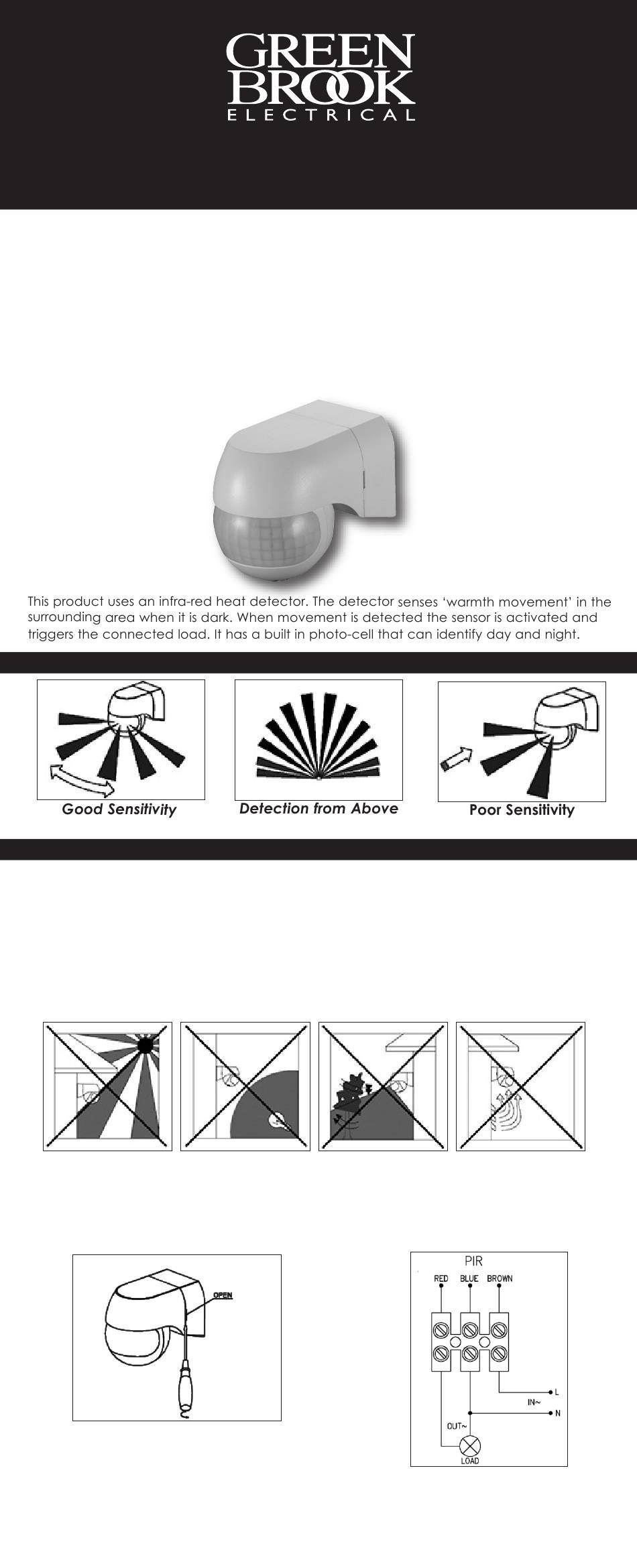

Green Brook Orion OD104 Quick Start Manual

• Please read these instructions carefully before installation and keep safe for future
reference.
IMPORTANT
This product should be installed by a competent person and in accordance with the
current IET Wiring Regulations and Building Regulations.
If in doubt,consult a qualified electrician.
• Always turn off the mains supply before commencing work.
As the detector responds to changes in temperature, avoid the following situations:-
• Avoid pointing the detector towards objects with highly reflective surfaces, such as
mirrors etc.
• Avoid mounting the detector near heat sources, such as heating vents, air conditioning
units, lights etc.
• Avoid pointing the detector towards objects that may move in the wind, such as
curtains, tall plants etc.
Switch the mains supply OFF first to prevent electric shock.
1. Remove the rear cover by inserting a small
flat-bladed screwdriver in the release slot
and twisting., refer to Dia:1.
Dia:1
Note:
Please refer to Data Sheet on the GreenBrook website -
www.greenbrook.co.uk for wiring sensor in parallel.
'Orion Range'
Infra-red Motion Detector - IP44
Model: OD104

Important Safety Instructions

FIELD OF DETECTION

INSTALLATION

2. Connect the mains in and load out
cable according to Dia:2, feeding
cables through the silicon grommets.
Dia:2
