Infra-red Motion Detector - Ceiling Mounted
•
Please read these instructions carefully before installation and keep safe for future
reference.
IMPORTANT
This product should be installed by a competent person and in accordance with the
current IET Wiring Regulations and Building Regulations.
If in doubt,consult a qualified electrician.
•
Always turn off the mains supply before commencing work.
As the detector responds to changes in temperature, avoid the following situations:-
•
Avoid pointing the detector towards objects with highly reflective surfaces, such as
mirrors etc.
•
Avoid mounting the detector near heat sources, such as heating vents, air conditioning
units, lights etc.
•
Avoid pointing the detector towards objects that may move in the wind, such as
curtains, tall plants etc.
Switch the mains supply OFF first to prevent electric shock.
1.
Decide on mounting position of sensor in ceiling, and cut a 65mm hole, (ensure there is no
wiring/gas/water services directly behind the screws) Dia:1.
Dia:1
'Orion Range'
Model: OD105
Important Safety Instructions
FIELD OF DETECTION
INSTALLATION
Advertisement
Table of Contents
Related Manuals for Green Brook OD105
Summary of Contents for Green Brook OD105

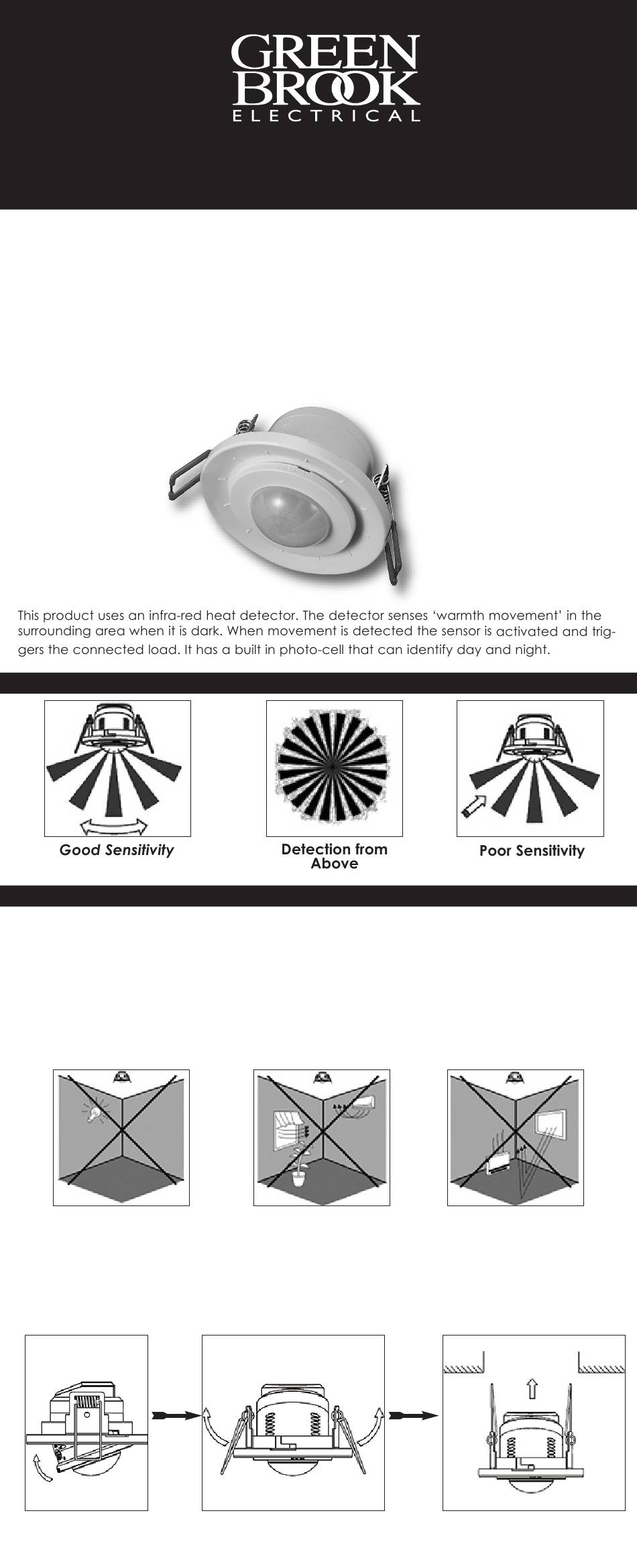

- Page 1 ‘Orion Range’ Infra-red Motion Detector - Ceiling Mounted Model: OD105 Important Safety Instructions • Please read these instructions carefully before installation and keep safe for future reference. IMPORTANT This product should be installed by a competent person and in accordance with the current IET Wiring Regulations and Building Regulations.
