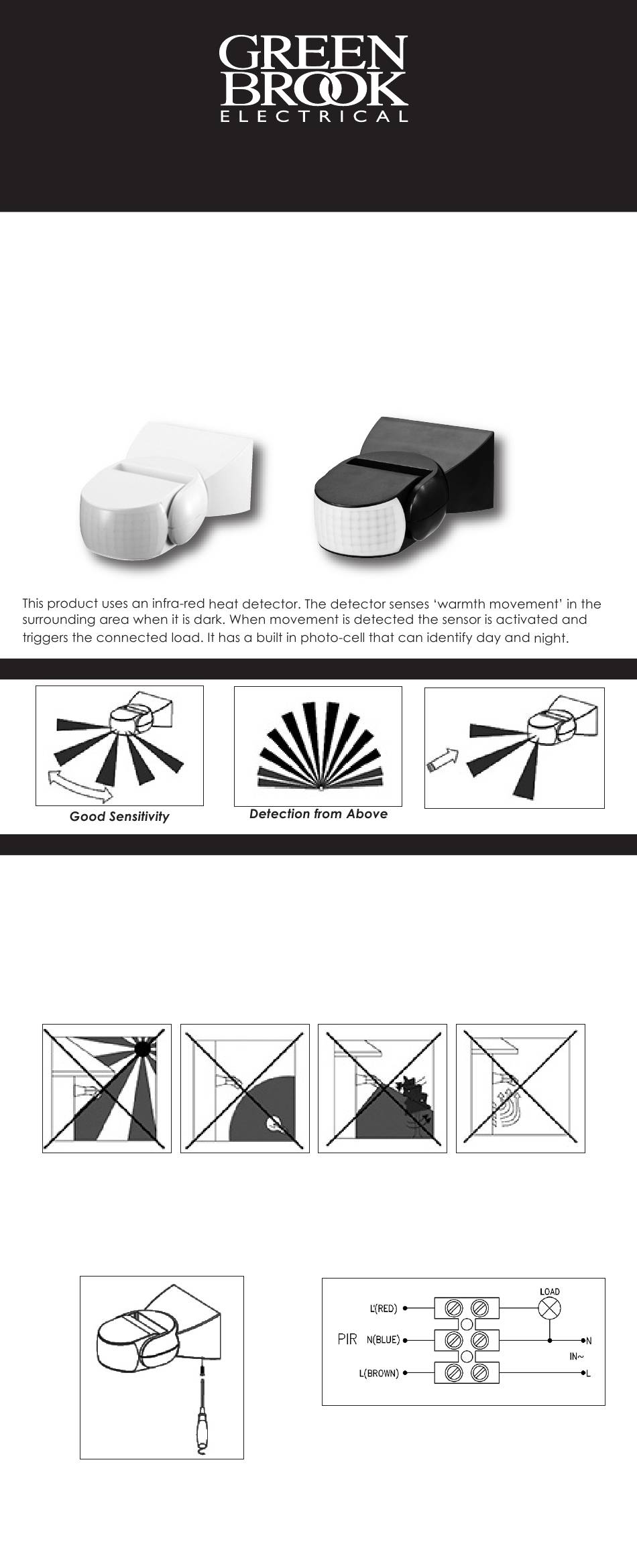

Green Brook Orion Range OD103 Important Safety Instructions

Infra-red motion detector - ip65

Advertisement

Please read these instructions carefully before installation and keep safe for future
reference.
IMPORTANT
This product should be installed by a competent person and in accordance with the
current IET Wiring Regulations and Building Regulations.
If in doubt,consult a qualified electrician.
Always turn off the mains supply before commencing work.
As the detector responds to changes in temperature, avoid the following situations:-
Avoid pointing the detector towards objects with highly reflective surfaces, such as
mirrors etc.
Avoid mounting the detector near heat sources, such as heating vents, air conditioning
units, lights etc.
Avoid pointing the detector towards objects that may move in the wind, such as
curtains, tall plants etc.
Switch the mains supply OFF first to prevent electric shock.
1.
Remove the rear cover by removing the
screw and pulling off cover, refer to Dia:1.
Dia:1
Note:
Please refer to Data Sheet on the GreenBrook website -
www.greenbrook.co.uk for wiring sensor in parallel.
'Orion Range'
Infra-red Motion Detector - IP65
Model: OD103 & OD103B
Important Safety Instructions
OD103
FIELD OF DETECTION

INSTALLATION

2.
Connect the mains in and load out
cable according to Dia: 2 feeding
cable through the silicon grommet.
Dia:2
OD103B
Poor Sensitivity

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Orion Range OD103 and is the answer not in the manual?

Questions and answers

Summary of Contents for Green Brook Orion Range OD103

  • Page 1 ‘Orion Range’ Infra-red Motion Detector - IP65 Model: OD103 & OD103B Important Safety Instructions • Please read these instructions carefully before installation and keep safe for future reference. IMPORTANT This product should be installed by a competent person and in accordance with the current IET Wiring Regulations and Building Regulations.
  • Page 2 3. Secure the sensor back plate to the wall using two wood screws (ensure there is no wiring/gas/water services directly behind the screws) Dia:3. Dia:3 4. Position sensor onto back plate and secure using the screw removed in step 1. TESTING 1.
