Infra-red Microwave Presence Detector- Adjustable
Please read these instructions carefully before installation and keep safe for future
reference.
IMPORTANT
This product should be installed by a competent person and in accordance with the
current IET Wiring Regulations and Building Regulations.
If in doubt,consult a qualified electrician.
Always turn off the mains supply before commencing work.
Switch the mains supply OFF first to prevent electric shock.

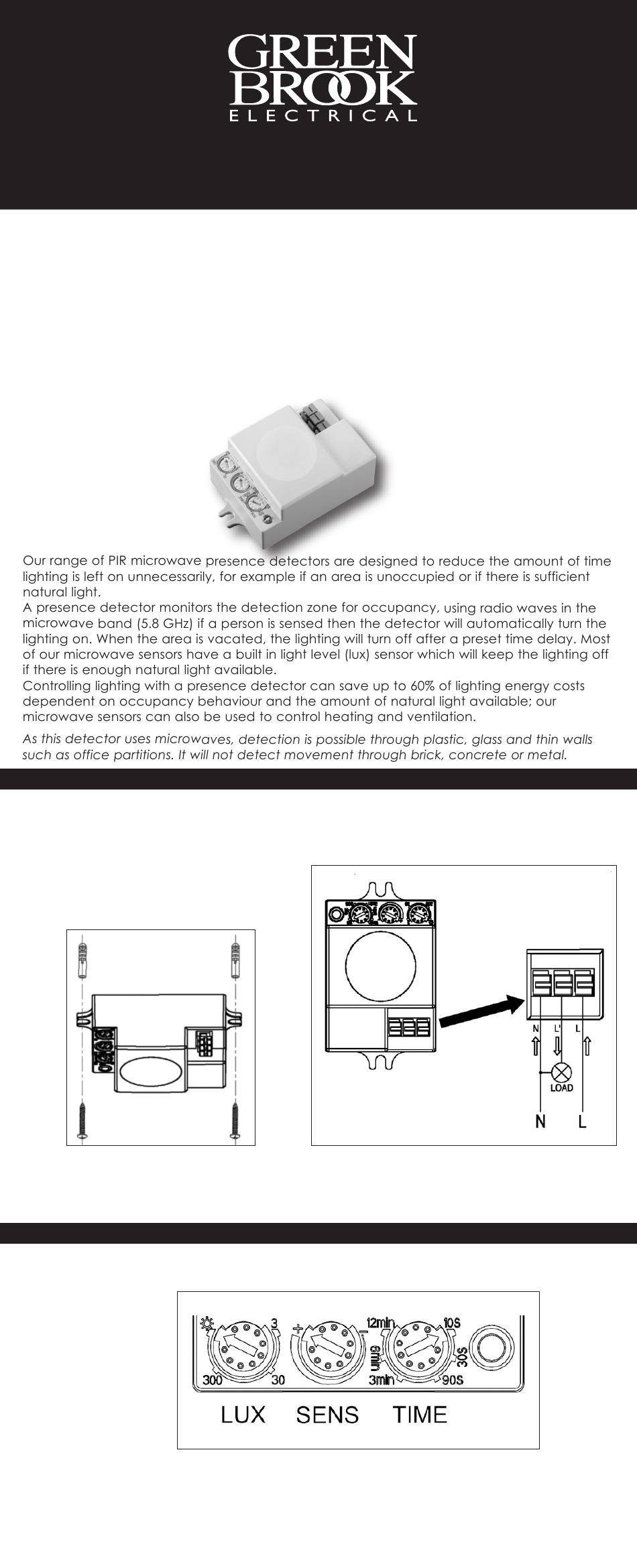

1.
Decide on mounting position of sensor
in and screw into position using the two
mounting lugs at either end. (ensure there
is no wiring/gas/water services directly
behind the screws) refer to Dia:1.
Dia:1
Note:
www.greenbrook.co.uk for wiring sensor in parallel.
1. Turn 'Time' control fully anti-clockwise, 'Lux' control fully clock wise and 'Sens' control fully
clockwise refer to Dia:3.
Dia:3
2. Re-connect mains supply, allow 30 seconds for the sensor to warm-up, and then per
form a walk-by in front of the sensor; lamp should turn on and stay on for
approximately 10 seconds, and will go off if no further movement is detected.
'Orion Range'
Model: ODM201

Important Safety Instructions

INSTALLATION

Dia:2
Please refer to Data Sheet on the GreenBrook website -
2.
Connect the mains in and load out wires
according to Dia:2.

TESTING

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Orion Range and is the answer not in the manual?

Questions and answers

Summary of Contents for Green Brook Orion Range

  • Page 1 ‘Orion Range’ Infra-red Microwave Presence Detector- Adjustable Model: ODM201 Important Safety Instructions • Please read these instructions carefully before installation and keep safe for future reference. IMPORTANT This product should be installed by a competent person and in accordance with the current IET Wiring Regulations and Building Regulations.
  • Page 2 ADJUSTING THE ‘LUX’ CONTROL 1. Turning Lux control fully clock wise, the sensor will operate in both daylight and darkness. 2. Turning Lux control fully anti-clockwise, the sensor will operate in darkness only. 3. Set control to operate at your required daylight level. ADJUSTING THE ‘TIME ON’...
