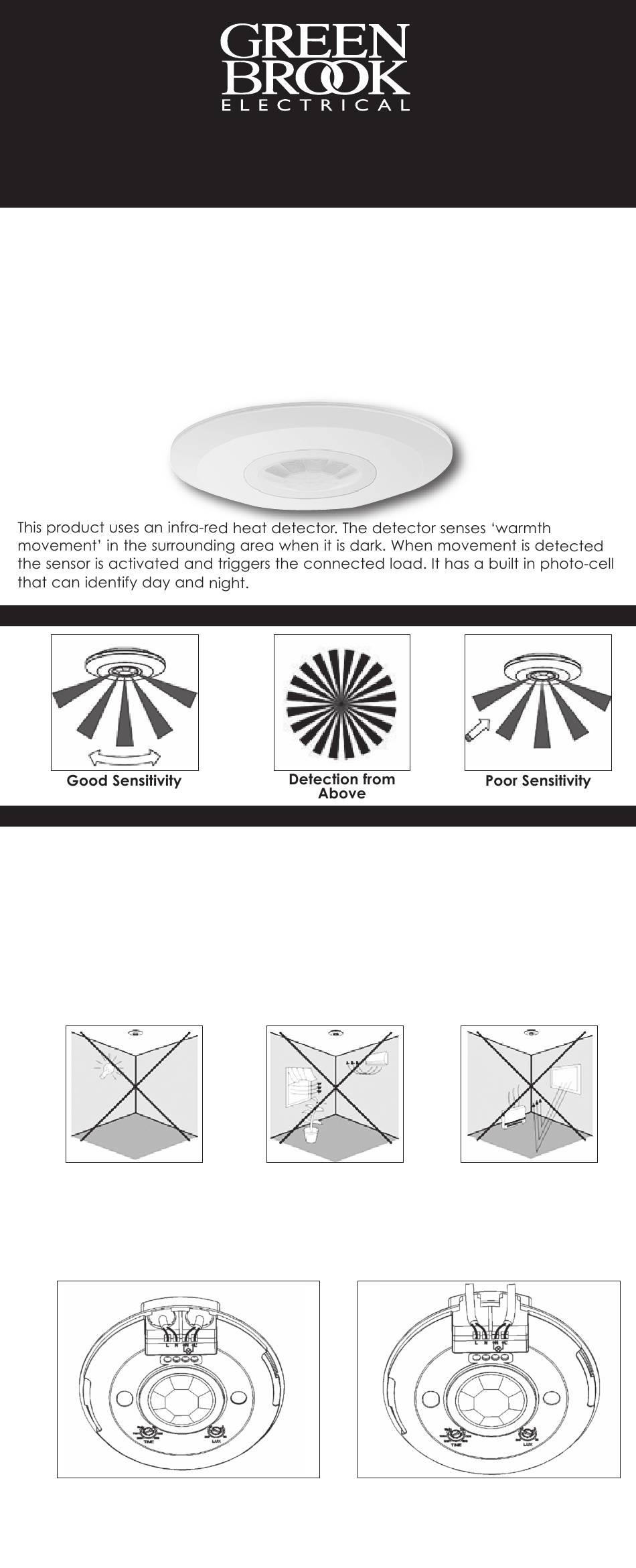

Green Brook Orion Range OD101 Manual

Infra-red Motion Detector - Ceiling Slimline
• Please read these instructions carefully before installation and keep safe for
future reference.
IMPORTANT
This product should be installed by a competent person and in accordance
with the current IET Wiring Regulations and Building Regulations.
If in doubt, consult a qualified electrician.
• Always turn off the mains supply before commencing work.
As the detector responds to changes in temperature, avoid the following
situations:-
• Avoid pointing the detector towards objects with highly reflective surfaces,
such as mirrors etc.
• Avoid mounting the detector near heat sources, such as heating vents, air
conditioning units, lights etc.
• Avoid pointing the detector towards objects that may move in the wind, such
as curtains, tall plants etc.
Switch the mains supply OFF first to prevent electric shock.
1. Remove the cover by rotating anti-clock wise.
2. Connect the mains in and load out wires according to Dia: 3, using the rear
entry or side entry knock-outs as required see Dia:1 and 2.
Dia:1 Rear-entry Knockouts
'Orion Range'
Model: OD101

Important Safety Instructions

FIELD OF DETECTION

INSTALLATION

Dia:2 Side-entry Knockouts
