Green Brook Orion ODM202 Manual

Infra-red microwave presence detector

Advertisement

Quick Links

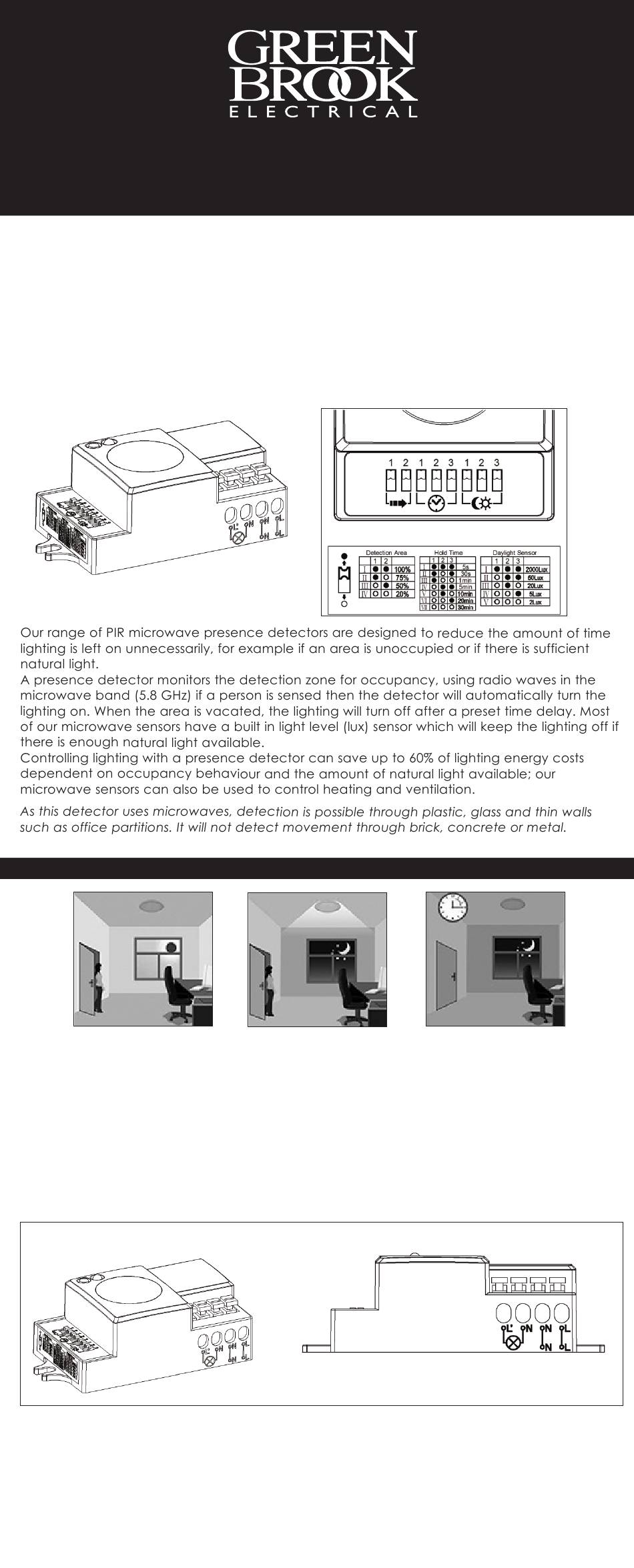

Infra-red Microwave Presence Detector
Please read these instructions carefully before installation and keep safe for future
reference.
IMPORTANT
This product should be installed by a competent person and in accordance with the
current IET Wiring Regulations and Building Regulations.
If in doubt,consult a qualified electrician.
Always turn off the mains supply before commencing work.
With ambient light
more than the setting
value, the lamp does
not switch on when
someone enters the
room.
Switch the mains supply OFF first to prevent electric shock.
1.
Decide on mounting position of sensor in and screw into position using the two mounting
lugs at either end. (ensure there is no wiring/gas/water services directly behind the screws)
refer to Dia:1.
Dia:1
2.
Connect the mains in and load out wires according to Dia:1 and Dia:2.
'Orion Range'
- Programmed Settings
Model: ODM202

Important Safety Instructions

INSTALLATION

With ambient light less
than daylight threshold,
the lamp will be on
100% when someone
enters the room.
After the hold time, the
light switches off
automatically when no
movement is detected.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Orion ODM202 and is the answer not in the manual?

Questions and answers

Summary of Contents for Green Brook Orion ODM202

  • Page 1 ‘Orion Range’ Infra-red Microwave Presence Detector - Programmed Settings Model: ODM202 Important Safety Instructions • Please read these instructions carefully before installation and keep safe for future reference. IMPORTANT This product should be installed by a competent person and in accordance with the current IET Wiring Regulations and Building Regulations.
  • Page 2 Note: Please refer to Data Sheet on the GreenBrook website - www.greenbrook.co.uk for wiring sensor in parallel. TESTING ADJUSTING THE ‘LUX’ CONTROL Table:1 1. Lux levels can be set between 2000 Lux (daylight) and 2 Lux (night), using a combination of slide switches, see Table 1.
