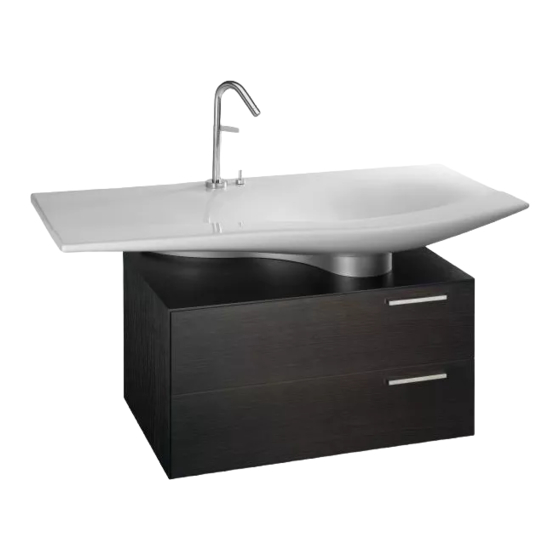

Installation and user Guide
MODel nUMBers
228W, 23W, 229W, 225W, 226W, 227W, 220W,
22W
Important! Please quote the above model number(s) when ordering spares
IMPORTANT
Installer: ThIs MANuAl Is The PROPeRTy Of The
cusTOMeR ANd MusT be ReTAINed WITh The PROducT
fOR MAINTeNANce ANd OPeRATIONAl PuRPOses.
08467-W2-A


Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 12128W and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Kohler 12128W

  • Page 1 stillness fitted bathroom furniture Installation and user Guide MODel nUMBers 228W, 23W, 229W, 225W, 226W, 227W, 220W, 22W Important! Please quote the above model number(s) when ordering spares IMPORTANT Installer: ThIs MANuAl Is The PROPeRTy Of The cusTOMeR ANd MusT be ReTAINed WITh The PROducT fOR MAINTeNANce ANd OPeRATIONAl PuRPOses.
  • Page 2: Table Of Contents

    The ceramic vanity top must be mounted on the wall before installing the base unit (refer to the manufacturer’s instructions for the washbasin for fixing dimensions). safety:WarnIngs Kohler products are precision-engineered and should give continued superior and safe performance, provided: They are installed and maintained in accordance with the recommendations given in this manual.
  • Page 3: Installation

    InstallatIOn general 600 mm Make sure that the location of the mirrors are in the correct zone away from the bathing area. Install the rectangular Mirror (800 mm) carefully remove the mirror from the housing. 08467-W2-A...
  • Page 4 X mm 45 mm 45 mm 220 - 240V decide on the location of the mirror. Mark the positions of the fixing holes for the wall hanging brackets and the incoming electrical supply to the dimensions given. Using a suitable drill, drill the hole for the fixing screws. Fit suitable wall plugs.
  • Page 5: Install The Rectangular Mirror (200 Mm)

    carefully lift the mirror back onto the housing making sure that it locates correctly on the support screws. Install the rectangular Mirror (1200 mm) X mm carefully remove the mirror from the housing. 08467-W2-A...
  • Page 6 X mm 45 mm 45 mm 220 - 240V decide on the location of the mirror. Mark the positions of the fixing holes for the wall hanging brackets and the incoming electrical supply to the dimensions given. Using a suitable drill, drill the hole for the fixing screws. Fit suitable wall plugs.
  • Page 7 carefully lift the mirror back onto the housing making sure that it locates correctly on the support screws. 08467-W2-A...
  • Page 8: Install The 800 Mm Base Unit

    Install the 800 mm Base Unit 20 mm 20 mm decide on the location of the base units. Mark the positions of the fixing holes for the wall hanging brackets to the dimensions given. Using a suitable drill, drill the hole for the fixing screws. Fit suitable wall plugs.
  • Page 9: Continue With The Installation

    Continue with the Installation note! There are no fixing screws or wall plugs supplied with this product. Special consideration should be given to the fixing arrangements when installing on to a dry lined, stud partition or laminated panel wall structures. Installers may wish to obtain alternative proprietary cavity fixing, or choose other options, however, these methods of fixing are beyond the scope of this guide.
  • Page 10 side unit Installation fully unscrew the bottom adjusting screws. This will give you enough clearance when hanging the base unit. fit the unit in position on the wall, lifting it over the wall hanging brackets. use a spirit level to make sure that the unit is level. 0.
  • Page 11: Install The Single Washbasin

    Install the single Washbasin Apply silicone sealant in accordance with the manufacturer’s instructions around the opening for the washbasin. Install the washbasin making sure that it is orientated correctly. Remove and excess sealant. Install the Base Unit for the Ceramic Vanity top 175 mm 20 mm 20 mm...
  • Page 12 decide on the location of the base units. Mark the positions of the fixing holes for the wall hanging brackets to the dimensions given. Using a suitable drill, drill the hole for the fixing screws. Fit suitable wall plugs. note! There are no fixing screws or wall plugs supplied with this product. Special consideration should be given to the fixing arrangements when installing on to a dry lined, stud partition or laminated panel wall structures.
  • Page 13 fully unscrew the bottom adjusting screws. This will give you enough clearance when hanging the base unit. fit the unit in position on the wall, lifting it over the wall hanging brackets. use a spirit level to make sure that the unit is level. level the base unit by adjusting the attachment screws.
  • Page 14: Fit The Door Handles

    Door adjustment B-Lateral A-Vertical C-Horizontal Loosen screw 'B'. Loosen screw 'A' on all Loosen screw 'B' ½ turn. Adjust door and hinges. Adjust door and Turn screw 'C' until door retighten screw. retighten screw. is positioned correctly and retighten screw 'B'. If necessary, adjust the doors to fit as shown in the above diagram.
  • Page 15: User Maintenance

    User MaIntenanCe Cleaning Caution! Risk of product damage. Many cleaners contain abrasive and chemical substances, and should not be used for cleaning stainless steel, wood, enamel, plated or plastic fittings. These finishes should be cleaned using a mild washing up detergent or soap solution, rinsed and then wiped dry with a soft clean cloth.
  • Page 16: Customer Care

    CUstOMer Care Guarantee of Quality Kohler UK guarantee products against any defect of materials or workmanship for the following periods Ceramic Ware and Cast Products Stainless Steel Products and, Acrylic Baths Shower Valves, Taps, Cistern Bathroom Furniture and Whirlpool / Spa Baths...
