INSTALLATION
INSTRUCTIONS
FURNITURE
Contemporary design and
quality construction,
providing affordable storage
for bathrooms of any size or
style.
It's the details that Englefield
cares about - from pioneering
the latest technology, to
innovative design.
1223207-A02-B
29/05/2015
VALENCIA
Wall Hung
Models
TM
Vanity
1

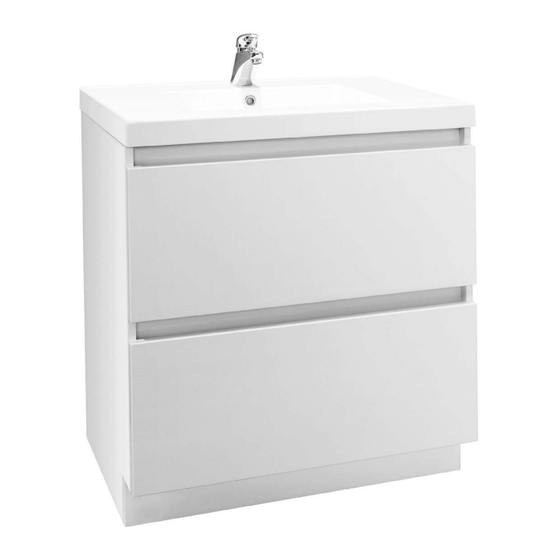

Floor Standing
Models
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Kohler Englefield VALENCIA Vanity Series
Summary of Contents for Kohler Englefield VALENCIA Vanity Series
- Page 1 INSTALLATION INSTRUCTIONS VALENCIA FURNITURE Vanity Floor Standing Models Contemporary design and quality construction, providing affordable storage for bathrooms of any size or style. Wall Hung Models It’s the details that Englefield cares about - from pioneering the latest technology, to innovative design.
-
Page 2: Before You Begin
VALENCIA INSTALLATION INSTRUCTIONS Vanity BEFORE YOU BEGIN Please read these instructions carefully to familiarise yourself with the required tools, materials, and installation sequences. Follow the sections that pertain to your particular installation. This will help you avoid costly mistakes. In addition to proper installation, read all operating and safety instructions. Prior to installation, inspect cabinet and top to ensure that no damage has occurred in transit. -
Page 3: Construction Requirements
VALENCIA Vanity INSTALLATION INSTRUCTIONS CONSTRUCTION REQUIREMENTS Floor standing models must be fixed to a nog in the wall. Wall hung models must be fixed to two nogs in the wall. The nog size should be 50 x 75mm. Floor standing models Wall Hung models 50mm from top of cabinet to centre... -
Page 4: Floor Standing Models
VALENCIA INSTALLATION INSTRUCTIONS Vanity 2 Changing drawer trims (Optional) (c) Having drilled the required holes fit the cabinet into position over the pipework. NOTE: This section is only applicable if you have purchased alternate trims for your vanity cabinet. (a) After both drawers have been removed (refer to section 1), unscrew the 2 trim fixing screws from each angle bracket located behind either side of each trim. -
Page 5: Installation Complete
VALENCIA INSTALLATION INSTRUCTIONS Vanity 5 Vanity top 7 Drawer re-installation (a) Unpack the top and check for any damage that (a) To re-install the drawers, extend the runners. might have occured in transit. Check and Place a drawer onto the runners and slide back confirm the fit of your selected tapware. -
Page 6: Cleaning And Maintenance Instructions
For cleaning instructions, please refer to the Owner’s Information Leaflet. CONTACT AND WARRANTY INFORMATION - Please refer to the Owner’s Information Leaflet for contact information. - Please visit our website for warranty and other information. NEW ZEALAND AUSTRALIA KOHLER NZ LTD KOHLER CO. www.englefield.co.nz www.englefield.com ENGLEFIELD...
