User Instructions 680KCD 780KCD DESN 515906 DESN 516830 Users Instructions PLEASE READ THESE INSTRUCTIONS BEFORE USING THIS APPLIANCE For use in GB & IE 12/15 EOPI 515873...
Contents SECTION CONTENTS PAGE INTRODUCTION USER INFORMATION CONTROLS THE COOKER MAIN OVEN AND HOTPLATE CONTROL THE HOTPLATE THE MAIN OVEN THE LOWER OVEN THE RAYBURN COOKBOOK COOKING CHART (MAIN OVEN) COOKING HINTS VENTING FAN MAIN OVEN THERMODIAL LOWER OVEN SOLID SHELF HOTPLATE ACCESSORIES LOCATION OF OVEN GRID SHELVES...
Page 3
IMPORTANT NOTICE: PLEASE READ THE ACCOMPANYING WARRANTY Any alteration that is not approved by AGA could invalidate the approval of the appliance, operation of the warranty and could affect your statutory rights.
Page 4

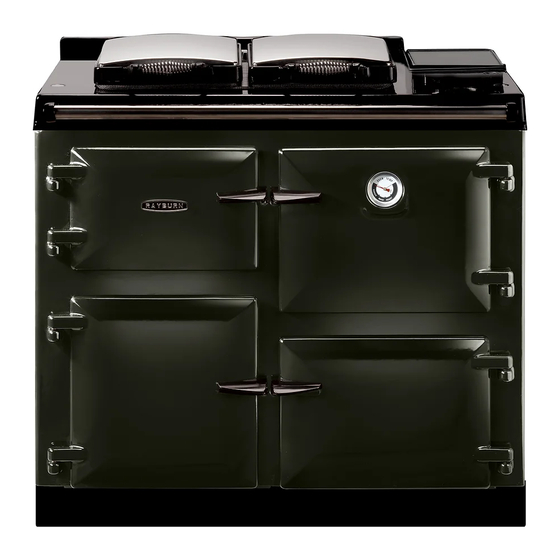

USER INFORMATION Fig. 1B - Rayburn 780KCD Fig. 1A - Rayburn 680KCD Fig. 1C...
Page 5
CONTROLS THERMODIAL GUIDE SIMMER 120ºC - 150ºC APPROX MARK BAKE 160ºC - 200ºC TEMP ROAST 220ºC - 250ºC 120ºC 140ºC 150ºC 160ºC 180ºC 190ºC 200ºC 220ºC 230ºC 240ºC HIGH 250ºC THE THERMODIAL ON THE MAIN OVEN DOOR IS A GUIDE TO THE CENTRE OVEN TEMPERATURE WHEN COOKING.
THE MAIN OVEN THE COOKER The oven thermostat control knob is marked (OFF), then temperature graduated (See diagram, Page 6). MAIN OVEN AND HOTPLATE CONTROL The Main Oven and hotplate temperatures are controlled by THE LOWER OVEN the cooker thermostat control knob which is situated behind The temperature of the cast iron Lower Oven is dependent the controls door.
LOWER OVEN COOKING HINTS A valuable oven for slower more gentle cooking when the Main Oven is turned up high, as it is roughly half The ovens are indirectly heated from the outside by hot the temperature of the Main Oven. Ideal for meringues, gases from the heat source so that no flame or elements casseroles, milk puddings, egg custards etc.
LOCATION OF OVEN GRID SHELVES DOORS To ensure the correct operation of the oven grid shelves To open the doors. Twist the handle slightly to disengage ensure that they are inserted as shown. (See section the door catch from the locking spindle and pull door open ‘USER INFORMATION’) - Page 5.
THE BOILER THE PROGRAMMER The temperature of the hot water supplied can be WHAT IT DOES adjusted by means of the boiler thermostat knob. This The Rayburn programmer is a 7-day 2 event knob can also be used to turn the boiler off. programmer which allows the user to set 2 periods of the day in which the cooker will turn on and then off.
AUTO/MANUAL CONTROL SETTING THE PROGRAMMER - WEEKLY (2) Fig. 6 DESN 514715 Fig. 8 DESN 514717 1. By pressing the AUTO/MAN button, this allows the 1. The display should alternate between OFF 1 and the oven to be used with the programmer or used time of day currently set.
1. The display should alternate between OFF2 and the SETTING THE MINUTE MINDER time of day currently set. 2. Adjust using + or - to set the time the second event is to end, 3. Press SET once to confirm. 4.
ASS. vitreous enamel Important: AGA recommend Vitreous Enamel Association approved cleaners for cleaning the vitreous enamelled surfaces of this product. But they are unsuitable for use on chrome and stainless steel components, including the hand rails and their brackets. The insulating covers should be cleaned regularly with a NON-ABRASIVE mild detergent, applied with a soft (coarse free) cloth and lightly polished up afterwards with a soft (coarse free) duster or tissue, to bring it back to its original lustre.
BURNER RESET POWER FAILURE Reset buttons are located behind burner door. The In the event of power failure your appliance will become cooker burner, under normal conditions will flash every 15 inoperative. When the power is restored it will automatically seconds.
