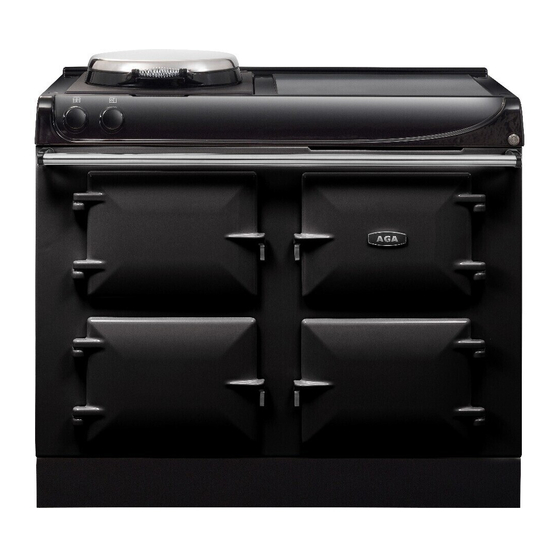

LPRT 517742
AGA eR3
Model Nos
eR3 110-4,
eR3 110-4i,
eR3 170-5,
eR3 170-5i
User Guide &
Installation Instructions
CAUTION: THIS UNIT IS HEAVY, PROPER EQUIPMENT AND ADEQUATE MANPOWER MUST BE USED IN MOVING THE
RANGE TO AVOID DAMAGE TO THE UNIT OR THE FLOOR.
REMEMBER, when replacing a part on this appliance, use only spare parts that you can be assured conform to the safety and
performance specification that we require.
DO NOT use reconditioned or copy parts that have not been clearly authorised by AGA.
PLEASE READ THESE INSTRUCTIONS BEFORE USING THIS APPLIANCE
AND KEEP IN A SAFE PLACE FOR FUTURE REFERENCE.
For use in GB and IE
08/19 EINS 517743

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the eR3 110-4 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for AGA eR3 110-4

Summary of Contents for AGA eR3 110-4

  • Page 1 REMEMBER, when replacing a part on this appliance, use only spare parts that you can be assured conform to the safety and performance specification that we require. DO NOT use reconditioned or copy parts that have not been clearly authorised by AGA. PLEASE READ THESE INSTRUCTIONS BEFORE USING THIS APPLIANCE AND KEEP IN A SAFE PLACE FOR FUTURE REFERENCE.
  • Page 2 Useful Information It maybe useful to make a note of your AGA appliance Serial Number when it is being installed. The serial number can be found on the rear of the appliance. My AGA Details: Serial No: AGA Service No:...

  • Page 3: Table Of Contents

    Heat Storage radiant ovens and main hotplate Fan Oven (Models 170, 170i) 3 zone induction hotplate (110/i & 170/i models only) AGA accessories Warming oven shelf and plate rack 10. Fan Oven Accessories 11. Cleaning & Caring 12. Maintenance 13. Installation instructions 14.

  • Page 5: Health And Safety

    WARNING : This appliance is not intended to Cooker Base or Hearth be operated by means of an external timer not approved by AGA or a separate remote-control It is essential that the base or hearth on which the cooker system.
  • Page 6 The appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

  • Page 7: Introduction

    Your AGA is a radiant heat stove cooker which combines the design values and cooking principles of the traditional AGA with the flexibility to turn each cooking area off and on as you require, thereby fitting into your lifestyle beautifully.

  • Page 8: Overview 110, 110I

    Overview 110, 110i Fig. 3.1 110, 110i This model illustrate 110/4i Cooker overview Fig. 3.1 Fig. 3.2 Controls- Radiant ovens Controls- Simmering and Boiling plate (High speed) Top Oven (Roasting and Baking Oven) Simmering Oven Warming Oven Storage Simmering and Boiling Plate (High speed) Top plate and resting area Warming Plate...

  • Page 9: Overview 170, 170I

    Overview 170, 170i Fig. 4.1 170, 170i This model illustrate 170i Cooker overview Fig. 4.1 Fig. 4.2 Controls- Simmering and Boiling plate (High speed) Controls- Radiant ovens Fan Oven Controls- Radiant ovens Controls- Simmering and Boiling plate (High speed) Top Oven (Roasting and Baking Oven) Storage Warming Oven Simmering Oven...

  • Page 10: Heat Storage Radiant Ovens And Main Hotplate

    When switching on the AGA cooker for the first few times, there are two things you may notice, neither of which should cause concern. The AGA cooker will emit an odour for a short while, this is simply due to the protective oil we put on the hotplate and Simmering ovens burning off.
  • Page 11 The main Hotplate Fig. 5.1 The cast iron hotplate is operated manually and is machined flat to give the best all-over contact with the AGA saucepans, grill pan, frying pan and kettle. The boiling plate setting is the hottest with the simmering plate setting being cooler.
  • Page 12 When stir-frying or cooking anything that is inclined to splash we would recommend using an AGA Splash Shield which will protect the insulated cover from splatter, making cleaning a doddle! Just wash the Splash Shield in hot soapy water or place in a dishwasher between two dinner plates.
  • Page 13 Warm up times As the AGA works on the principle of storing heat, time is required to gather that heat from the electric elements to saturate the castings. We recommend to allow an hour heat...
  • Page 14 The Oven Controls Fig. 5.2 To select the various oven temperature settings rotate the control knob in a clockwise direction (Fig. 5.1). Baking oven on, this setting has a modified temperature in the top left oven which is suited for baking (Fig. 5.2). Baking oven on, simmering oven on, this setting is for long, slow cooking in the bottom left hand oven (Fig.
  • Page 15 As with the roasting oven setting, the specially designed AGA The beauty of the roasting oven setting is that any fat is burnt roasting tins and bakeware slide directly onto the runners,...
  • Page 16 • To get the very best performance, we recommend to This element heats the air and the cast use AGA cookware with thick bases and stacking lids. iron within it to provide cooking results consistent with the traditional simmering •...
  • Page 17 Cooking table - Radiant Ovens Roasting oven setting Oven temperature = HIGH Top - grilling 2nd runner - scones, small pastries, grilling 3rd runner - bread rolls , Yorkshire puddings 4th runner - roasts, poultry Oven grid shelf on base of oven - bread loaves, pies, roast vegetables Floor grid on base of oven - quiches, pies Baking oven setting Oven temperature = MODERATE...

  • Page 18: Fan Oven (Models 170, 170I)

    Fan Oven (Models 170, 170i) Operation for Fan oven Fig. 6.1 Fan ovens circulate hot air continuously, which means faster, more even cooking. The recommended cooking temperatures for a fan oven are generally lower than those for a non-fan oven. Tall fan oven Operating the Oven Fan Oven...
  • Page 19 Cooking tips for your Fan Oven General oven tips The wire shelves should always be pushed firmly to the back of the oven. Baking trays with food cooking on them should be placed level with the front edge of the oven’s wire shelves. Other containers should be placed centrally.
  • Page 20 Cooking Table - Fan Oven The oven will take approx 10 minutes until it has reached the selected temperature. The oven control settings and cooking times given in the table below are intended to be used as a guide only. Individual tastes may require the temperature to be altered to provide a preferred result.
  • Page 21 Simmer Plate (low power) Fig. 6.9 A low power simmer plate is fitted above your conventional fan oven, it complements the high speed boiling plate on the right-hand side (Fig. 6.9). For simmer plate temperature guide, please refer to table opposite.

  • Page 22: Zone Induction Hotplate

    The level of sound will vary depending on the type and style of pan used. Pan detection Timer set AGA accessories can be viewed at your local AGA specialist or online at www.agacookshop.co.uk. Residual heat Pause set...
  • Page 23 Residual Heat Indicator Using the Induction Hob The hob surface will get hot when in use, this is due to heat Step 1. To switch on touch the standby. being conducted from the cooking pan. The hob surface will also remain hot for a while after use. After the cooking period the hob hot indicator (Fig.
  • Page 24 Pause Warming Function The warming function will keep cooked food warm for a set Step 1. To interrupt the cooking period, touch the pause. period of time. Level Temperature 40°C 104°F Melting 70°C 158°F Warming 94° C Simmer Step 1. To switch on touch the standby. Step 2.
  • Page 25 Auto Cook Timer Function The Auto Cook feature allows the pan contents to be brought The timer functions do not start or stop a cooking process. up to a high temperature rapidly, before reverting back to the The hob has two individual timers: set power level.
  • Page 26 1. Kitchen Timer Modify Kitchen Timer Step 1. To modify or cancel a previously set time, touch Step 1. To switch on touch the standby. the standby. Step 2. Press the “-” and “+” button together. Step 2. Press the “-” and “+” button together. Step 3.
  • Page 27 2. Minute Minder Modify Minute Minder Step 1. Press the “-” and “+” button together. Step 1. To switch on touch the standby. 1 2 3 4 5 6 7 8 9 Step 2. The time can now be set by using the - or +. The Step 2.
  • Page 28 3. Temporary Lock Step 1. Touch the power button. Temporary Lock, this feature will lock the controls for the duration of a cooking process to prevent accidental adjustment of the controls. Step 2. Touch the induction on. If power level is not set within 20 seconds the unit will automatically switch off.
  • Page 29 Bridge Function The bridge function allows the front two cooking zones/ elements to be switched on at the same time and controlled as one cooking zone only. This is ideal for an induction compatible fish kettle for example. Griddle pans can be used on the induction, it MUST be used on the rear cooking zone.

  • Page 30: Aga Accessories

    If you have not already seen a demonstration, ask your AGA Specialist for details. A demonstration will show you how Fig. 8.2 to get the best from your new AGA and will give you hints and tips. You will also see a selection of AGA utensils and accessories being used.
  • Page 31 DO NOT STORE IN THE OVENS WHEN NOT IN USE. 1x Toaster (Fig. 8.6) This is for toasting bread on the boiling plate. AGA toast is renowned for its excellence, crisp on the outside and soft in the centre. Take thick slices of bread and place in the AGA...

  • Page 32: Warming Oven Shelf And Plate Rack

    Warming oven shelf and plate rack Warming oven shelf and plate rack Fig. 9.1 Fig. 9.2 The warming oven is supplied with four flat cooking shelves (Fig. 9.1) and one plate warming shelf (Fig. 9.2). When using the tall oven, you can cook on all four shelves at ArtNo.324-0002 Oven shelf the same time, but make sure that they are well spaced out to allow the hot air to circulate.

  • Page 33: Fan Oven Accessories

    10. Fan Oven Accessories When using the tall oven, you can cook on all four shelves at Fig. 10.1 Fig. 10.2 the same time, but make sure that they are well spaced out to allow the hot air to circulate. ArtNo.324-0002 Oven shelf ArtNo.324-0010 Plate warming shelf Fig.

  • Page 34: Cleaning & Caring

    Induction Hob The easiest way to clean the ceramic top on plate and front plate is to mop up spills as they happen. VEA the AGA Induction hob is to mop up spills as soon as they approved AGA Enamel Cleaner can be purchased from www.

  • Page 35: Maintenance

    12. Maintenance • Your Aga does not need to be regularly serviced. • In the event of requiring maintenance, please call AGA Service or your authorised distributor. • Your appliance MUST only be maintained and installed by a qualified engineer, AGA engineer or an authorised distributor.

  • Page 36: Installation Instructions

    REMEMBER, when replacing a part on this appliance, use only spare parts that you can be assured conform to the safety and performance specification that we require. DO NOT use reconditioned or copy parts that have not been clearly authorised by AGA. PLEASE READ THESE INSTRUCTIONS BEFORE USING THIS APPLIANCE...

  • Page 37: Installation Introduction

    14. Installation introduction Consumer protection As a responsible manufacturer, we take care to make sure that our products are designed and constructed to meet the required safety standards when properly installed and used. WARNING - ELECTRIC SHOCK HAZARD It is the customers responsibility to contact a qualified electrical installer to make sure the electrical installation is adequate and in conformance with the regulations.

  • Page 38: Product Dimensions 110, 110I

    15. Product Dimensions 110, 110i Fig. 15.1 DESN 517618 NOTE: When surveying for a appliance installation the actual clearance required for the ‘body’ of the appliance should be increased overall by 10 mm beyond the figures quote above. This allows safe margin to take into account the natural dimensional variations found in major castings in particular the width across an appliance recess could be critical.

  • Page 39: Product Dimensions 170, 170I

    16. Product Dimensions 170, 170i Fig. 16.1 AGDN 100245 NOTE: When surveying for a appliance installation the actual clearance required for the ‘body’ of the appliance should be increased overall by 10 mm beyond the figures quote above. This allows safe margin to take into account the natural dimensional variations found in major castings in particular the width across an appliance recess could be critical.
  • Page 40 Side and Overhead Clearances Fig. 16.1 If you are installing the appliance in a new kitchen or have the opportunity to set the width between kitchen units, it is advisable to include an additional small gap each side of 3mm to assist with installation and prevent damage when moving the product.
  • Page 41 Rear Clearances (including Combustible Rear Walls) Fig. 16.5 SPECIAL NOTE: Ensure that unprotected electric cabling REAR WALL FITTING or plastic services do not pass within or on the outside of the wall behind or directly above the appliance. This type of material can age prematurely when exposed to continuous higher temperature.

  • Page 42: Electrical Connection - 110, 110I

    17. Electrical connection - 110, 110i WARNING: This appliance must be earthed. The method of connection to the mains electricity supply must facilitate complete electrical isolation of the appliance, This appliance is designed for the voltage stated on by a multi-pole switch, having a contact separation of at least the rating plate, which is situated behind the plinth 3 mm on all poles.

  • Page 43: Electrical Connection - 170, 170I

    18. Electrical connection - 170, 170i WARNING: This appliance must be earthed. The isolator should not be positioned immediately above the cooker, but must be fitted within 2 metres of the appliance. This appliance is designed for the voltage stated on the rating plate, which is situated behind the plinth The isolator maybe separate from the connection point.

  • Page 44: Installation And Levelling

    19. Installation and Levelling NOTE: Care must be taken not to trap mains cables (Fig. Fig. 19.1 19.1). When removing appliance from the pallet, the front stability feet can be raised with a spanner to allow appliance to be slid from transit pallet (Fig. 19.2). Slide cooker off transit pallet.
  • Page 45 Installation and Levelling - Fan Oven To install the conventional oven module , raise the top plate by undoing the 4 hob nuts. Fig. 19.6 Adjust the height to suit the main cooker. Lock in at the rear (Fig. 19.7). Fix with M6 bolt at front (Fig.

  • Page 46: Control Knob And Handrail Connection

    20. Control knob and handrail connection Control Knob Location 100, 100i Fig. 20.1 Ensure control knobs are located onto spindles correctly, as shown in (Fig. 20.1). Control Knob Location - Conventional Oven 160, 160i HOTPLATE CONTROL KNOB (Fig. 20.2). Handrail Location Locate handrail onto spindle, lock into position with grub screws (located on the inside of the bracket) (Fig.

  • Page 47: Circuit Diagram 110, 110I

    21. Circuit diagram 110, 110i eR3 90/100 series Wiring Diagram: Code Description Code Description Code Colour Hotplate Overheat Thermostat Lower Oven Overheat Switch Blue Code Description Code Description Code Colour Hotplate Selector Switch Hotplate Selector Settings Brown Upper Oven Overheat Switch Blue Hotplate Overheat Thermostat Hotplate Thermostat...

  • Page 48: Induction Hob (110I And 170I Only)

    Induction Hob (110i and 170i only) Code Description Code Colour 13 A Mains Plug Blue Terminal Strip Brown Component Overheat Thermostat Black Plug And Socket Terminal Block Orange Induction Unit Violet White Yellow Green/yellow Grey...

  • Page 49: Circuit Diagram Additional Fan Oven

    Circuit Diagram Additional Fan Oven (170 and 170i) 1000W Code Description Code Colour Hotplate Selector Switch Blue Hotplate Overheat Stat Brown Hotplate Thermostat Black Hotplate Element Orange Oven Selector Switch Oven Element Violet Oven Fan White Oven Thermal Preset Yellow Green/yellow Grey...
  • Page 50 Notes...
  • Page 51 Notes...
  • Page 52 Notes...
  • Page 53 Notes...
  • Page 56 For further advice or information contact your local AGA Specialist. With AGA Rangemaster’s policy of continuous product improvement, the Company reserves the right to change specifications and make modifications to the appliances described and illustrated at any time. Manufactured By...
