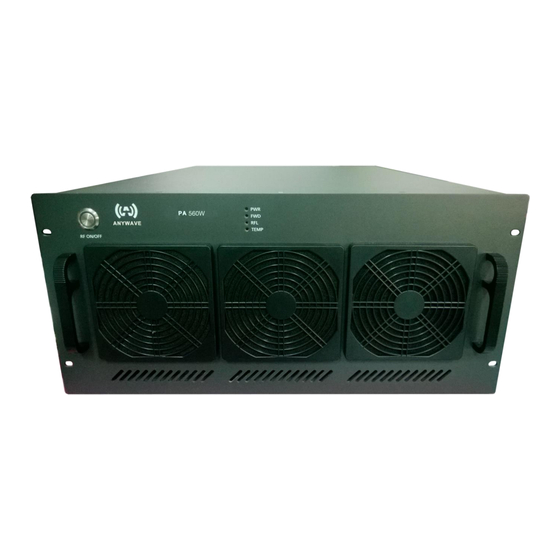

Anywave PA-560W User Manual
  1. Manuals
  2. Brands
  3. Anywave Manuals
  4. Transmitter
  5. PA-560W
  6. User manual

Anywave PA-560W User Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
ANYWAVE
PA-560W
User Manual
Version 1.1 – September 15, 2014

Advertisement

loading
Need help?

Need help?

Do you have a question about the PA-560W and is the answer not in the manual?

Questions and answers

Related Manuals for Anywave PA-560W

Summary of Contents for Anywave PA-560W

  • Page 1 ANYWAVE PA-560W User Manual Version 1.1 – September 15, 2014...
  • Page 2 This equipment complies with relevant portions of Parts 2, 73, & 74 of the FCC rules governing LPTV operation. Disclaimer Information provided by Anywave Communication Technologies is believed to be accurate and complete; however, no liability can be assumed for its use. The manufacturer makes no representations or warranties, either expressed or implied, by or with respect to anything in this manual, and shall not be liable for any implied warranties of fitness for a particular purpose or for any indirect, special, or consequential damages.
  • Page 3 Returns and Exchanges Written approval and a Return Authorization Number (RAN) are required from Anywave for all equipment returns. Please direct all return inquiries to the Anywave Service Department at support_us@anywavecom.com, providing the Sales Order number and Serial Number(s) of the equipment.
  • Page 4 The installation, operation, maintenance and service of this equipment involves risks both to personnel and equipment, and must ONLY be performed by qualified personnel exercising due care. Anywave Communication Technologies, Inc. shall not be responsible for injury or damage resulting from improper handling or from the use of improperly trained or inexperienced personnel performing such tasks.

  • Page 5: Table Of Contents

    PA-560W User Manual Contents 1 Product Appearance ..................6 1.1 Front Panel ..................... 6 1.2 Back Panel ..................... 8 2 Specifications ....................10 3 Control Interface ..................... 11 3.1 Local Control Interface ................11 3.2 Serial Port Interface ..................11 3.3 Web Interface ....................

  • Page 6: Product Appearance

    PA-560W User Manual 1 Product Appearance 1.1 Front Panel  RF Button  Press the RF button to turn the RF signal ON (inside blue light will light up).  Press the RF button again to turn the RF signal OFF (inside blue light will be off).
  • Page 7 PA-560W User Manual  LED_TEMP  Red light will be off when temperature is normal (≤ 140  Red light will be on when system temperature is too high (> 140 F). It may be caused by a broken cooling system. In this situation, the PA will enter auto-protection mode and there will be no RF output.

  • Page 8: Back Panel

    PA-560W User Manual 1.2 Back Panel  RF_IN  Connector:  50 Ω Impedance:  Rated Power: +1.76 dBm ± 1 dB  Note: If input power from RF_IN is lower than rated input value, the output power will be lower than rated output power accordingly.
  • Page 9 PA-560W User Manual  MONITOR (loop out of RF_OUT)  Connector: BNC female  50 Ω Impedance:  Rated Power: 0 dBm ± 3 dB @ 700 W  Note: It is OK to leave this port open without load.

  • Page 10: Specifications

    PA-560W User Manual 2 Specifications  Environment  Operation Temperature: C ~ +60 C (+14 F ~ +140  Operation Humidity: 20 % ~ 90 % (non-condensing)  Atmospheric Pressure: 86 kPa ~ 106 kPa  Power Supply  Voltage: 90 ~ 300 VAC ...

  • Page 11: Control Interface

    PA-560W User Manual 3 Control Interface 3.1 Local Control Interface Local control and monitoring of the PA unit is accomplished via the ACT-5X Exciter front panel user interface. Use a standard serial cable to connect the PA D9 RS232-A port to the ACT-5X Exciter D9 REMOTE (RS232) port.

  • Page 12: Web Interface

    PA-560W User Manual 3.3 Web Interface Enter the IP address of the PA (the default value is 192.168.1.210) in a web browser's address bar to cause a login window to pop up. There are two tiers of web interface available. The first “guest” tier is limited in monitoring and control, allowing users to retrieve information such as PA status, network configuration, and alarms.
  • Page 13 PA-560W User Manual Admin Web Page ACT-560PA-USR-DOC-V1.1, 09/15/2014 Page 13 of 15...
  • Page 14 PA-560W User Manual Note: 1) To refresh the status of the PA unit, manually click the “Query” button(s) on the page, or set up the “AUTO-REFRESH-CYCLE” for the auto periodic refreshing of status. 2) Configuration settings including “POWER_DEGREE”, “EXCITER_TYPE”, internet access settings and “REFRESH-CYCLK”...
  • Page 15 PA-560W User Manual Anywave Communication Technologies Inc. 300 Knightsbridge Parkway, Suite 150, Lincolnshire, IL 60069 Tel: (847) 415-2258 Fax: (847) 415-2112 Email: sales_us@anywavecom.com http://www.anywavecom.com/en/ ACT-560PA-USR-DOC-V1.1, 09/15/2014 Page 15 of 15...
