Returns and Exchanges Written approval and a Return Authorization Number (RAN) are required from Anywave for all equipment returns. Please direct all return inquiries to the Anywave Service Department at support_us@anywavecom.com, providing the Sales Order number and Serial Number(s) of the equipment.
Page 4
The installation, operation, maintenance and service of this equipment involves risks both to personnel and equipment, and must ONLY be performed by qualified personnel exercising due care. Anywave Communication Technologies, Inc. shall not be responsible for injury or damage resulting from improper handling or from the use of improperly trained or inexperienced personnel performing such tasks.

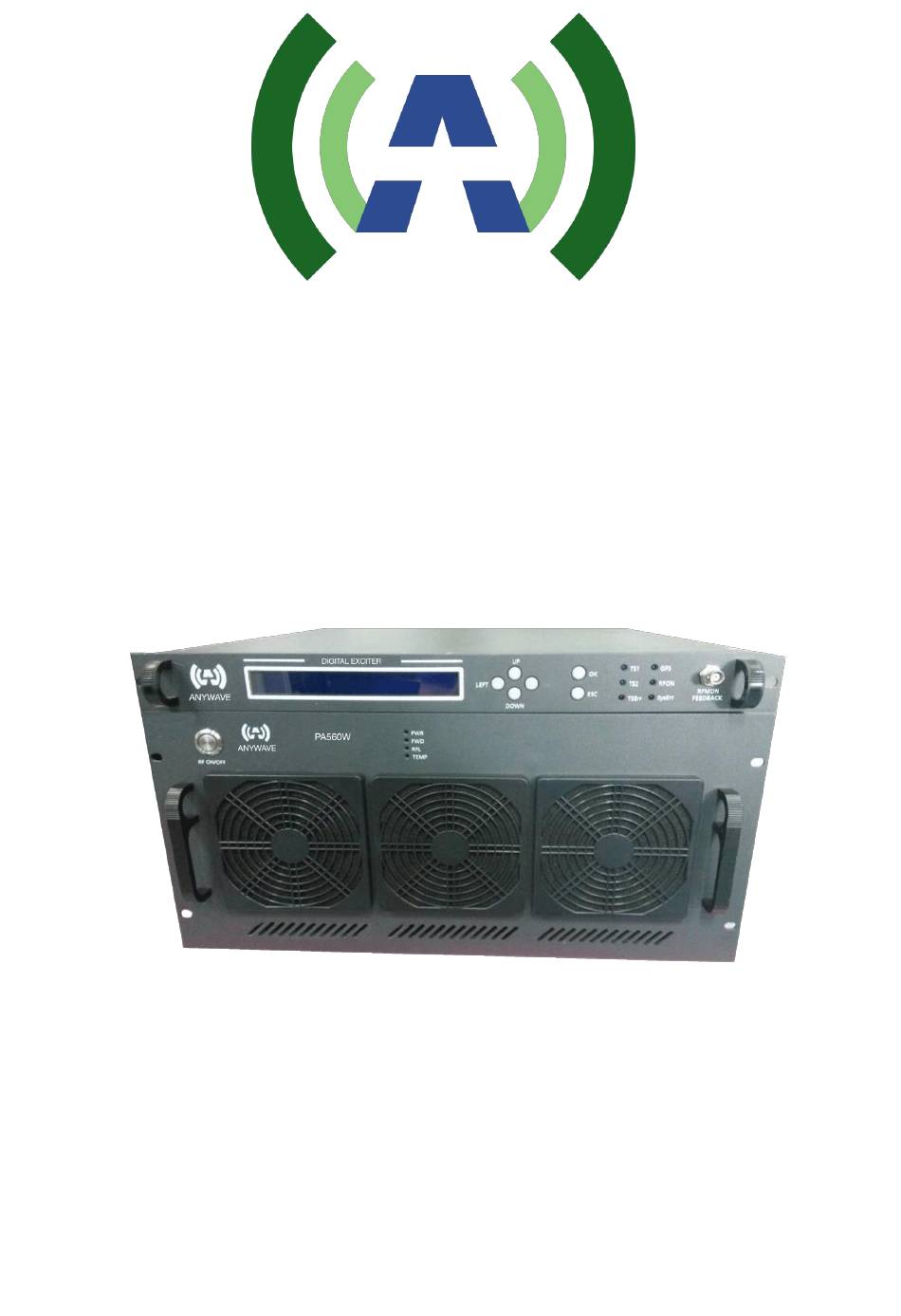

1 Introduction This Quick Start Guide contains instructions to safely setup and turn on the Anywave 560W DTV Transmitter. Please note that trained and qualified personnel are required to install, maintain, and service this transmission equipment. 2 Organization of Manual This Manual is broken up into several sections.
ATSC 560W TX Quick Start Guide 3 TX System Overview Final assembly and test of each transmitter is performed at the Anywave factory. The Exciter is setup on the desired channel frequency and the TX is tested with the complete RF system (if purchased) at full power into a load. All TX operating parameters are optimized and the Transmitter Forward and Reflected power meters are properly calibrated.
ATSC 560W TX Quick Start Guide 4 TX System Interconnect The Anywave ATSC 560W DTV Transmitter consists of an Exciter, 560W PA, Directional Coupler (50dB for PA FWD and REF samples), and a BPF (optional) with two additional single port couplers for Exciter feedback samples (optional). The diagram below shows the overall system interconnect between the system components.
ATSC 560W TX Quick Start Guide 5 Initial Turn On Please locate and have handy for reference a copy of your 560W TX Factory Test Report as well as the 560W TX Quick Start Guide, and 560W PA and Exciter User Manuals.
Page 10
ATSC 560W TX Quick Start Guide and verify that the voltages (Vol_9 and Vol_50) and current (Cur1_50, Cur2_50) are showing real values and not all 0s. 6. You are now ready to bring the TX up to power. To accomplish this, slowly increase the drive level out of the Exciter by increasing the POWER setting in the Exciter RF submenu while watching the PA_Fwd power increase accordingly on the PAC submenu (you will need to navigate between the Exciter...
Page 11
ATSC 560W TX Quick Start Guide 9. (Optional Step - Rerunning Corrections) If you are operating at reduced power and wish to rerun corrections to achieve better performance, you may now perform Linear and Non-Linear corrections. (Please refer to the Exciter User Manual for detailed instructions on running corrections).
Page 12
ATSC 560W TX Quick Start Guide 15. For Remote TX Monitoring and Control, you may network to the Exciter REMOTE RJ-45 rear panel connection at 192.168.1.143 – you can change the exciter ipaddress by navigating to the CONFIG submenu (simultaneously press Left and Right buttons) and change the value of IP (please reference your Exciter User Manual for details).
Page 13
ATSC 560W TX Quick Start Guide Anywave Communication Technologies Inc. 300 Knightsbridge Parkway, Suite 150, Lincolnshire, IL 60069 Tel: (847) 415-2258 Fax: (847) 415-2112 Email: sales_us@anywavecom.com http://www.anywavecom.com/en/ ACT-560-QSG-DOC-V1.2, 10/10/2014 Page 13 of 13...
