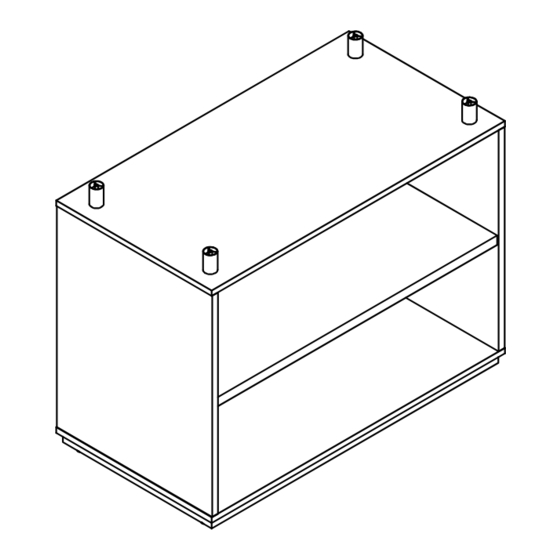

Bookcase, 2 Shelf
Model No. STEB2C
ASSEMBLY INSTRUCTIONS
CALL 1-800-822-8037 FOR ASSISTANCE
P/N STEB2C Rev 2 12/18/15
TM
www.mayline.com

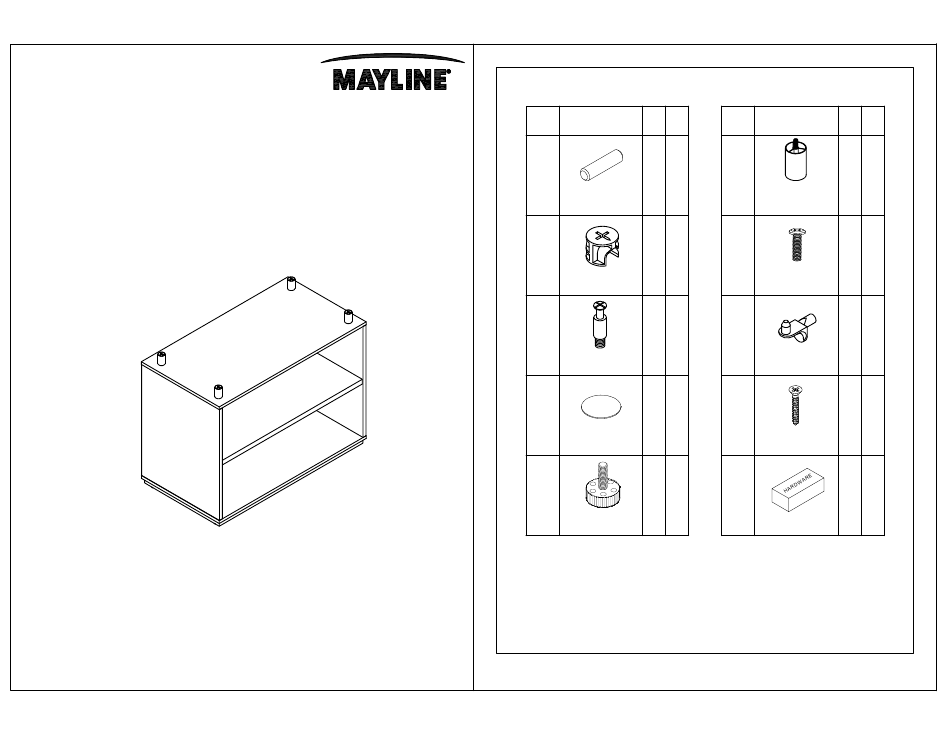

PARTS LIST
Spare
Name
Part
Qty.
Qty
HB
A
8
1
REALS004
Wood Dowel
HB
B
8
1
REALS001
Cam
HB
C
8
1
REALS002
Cam Post
HB
D
8
1
REALS617**
Cam Sticker
E
4
REALS425
Leveler
Items with HB are in hardware box.
**Denotes Color Code
1
Spare
Name
Part
Qty.
Qty
HB
F
4
REALS607
Base Stand-off
HB
G
4
1
REALS606
M6 x 25mm
HB
4
1
H
REALS009
Shelf Support
HB
18 1
I
REALS146
Ø3x19mm
STEB2CHB
