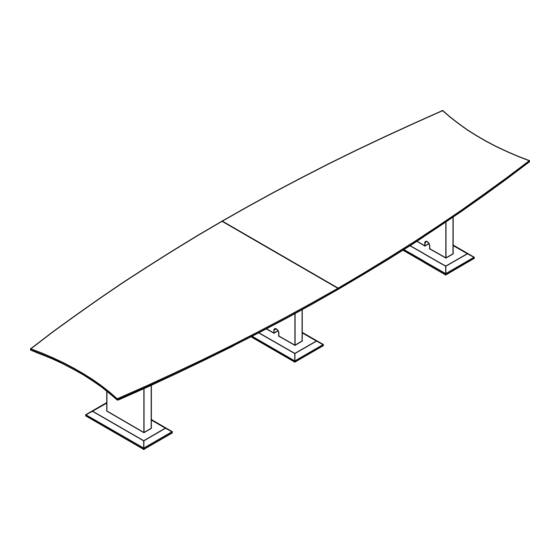

12'/14'/16' Conference 1/2 Top
Model No. STECTS72/ 84, STECT96
ASSEMBLY INSTRUCTIONS
CALL 1-800-822-8037 FOR ASSISTANCE
P/N STECTS Rev 4 12/05/16
TM
www.mayline.com
PARTS LIST
Spare
Name
Part
Qty.
Qty
HB
A
14 1
REALS001
Cam Lock
HB
B
14
1
REALS102**
Cam Sticker
HB
C
14
1
REALS003
Cam Post
NOTE:
. 1/2 Top and 2 Modesty Panels with Hardware packed in one
carton - STECTS72/ 84, STECT96 (Qty 2)
. 1 Leg with Hardware packed in one carton - STECB (Qty 2)
. 1 Center Base with Hardware packed in one carton - STECAB
Items with HB are in hardware box.
Spare
Name
Part
Qty.
Qty
HB
D
6
REALS643
M6 x 35mm
E
8
REALS043
M6x15mm
STECTSHB
1
1
1
