Sterling Series

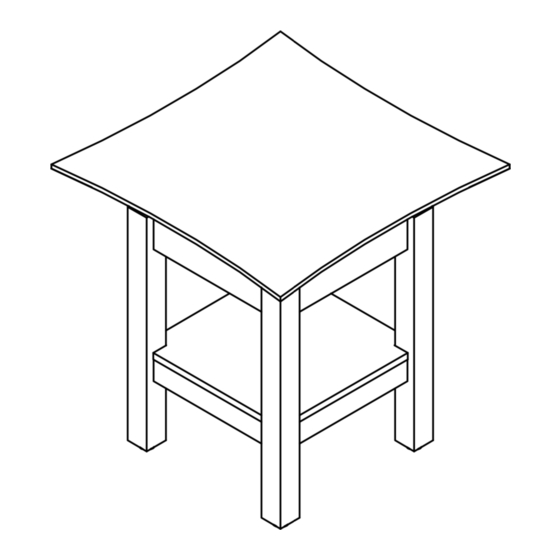

24" End Table
Model No. STET
ASSEMBLY INSTRUCTIONS
CALL 1-800-822-8037 FOR ASSISTANCE
P/N
STET Rev 1 05/06/15
TM
www.mayline.com
PARTS LIST
Spare
Name
Part
Qty.
Qty
HB
A
4
REALS612
Mounting Plate
HB
B
16
1
REALS603
M6x15mm
HB
4
C
REALS425
Leveler
HB
D
28 1
REALS003
Cam Post
HB
28 1
E
REALS001
Cam Lock
Items with HB are in hardware box.
Spare
Name
Part
Qty.
Qty
HB
28 1
F
REALS617**
Cam Sticker
HB
G
4
REALS607
Ø32mm Base Stand-off
HB
H
4
1
REALS206
M6x15mm
HB
I
1
REALBY028
Wrench 4mm
STETHB
1
Advertisement
Table of Contents
Related Manuals for Mayline Sterling Series
Summary of Contents for Mayline Sterling Series
- Page 1 PARTS LIST Sterling Series Spare Spare Name Part Qty. Name Part Qty. 24" End Table Model No. STET 28 1 REALS612 REALS617** Mounting Plate Cam Sticker REALS607 REALS603 Ø32mm Base Stand-off M6x15mm REALS206 REALS425 M6x15mm Leveler 28 1 REALBY028 REALS003...
- Page 2 Part Qty. Name Part Qty. improper assembly or installation. Mayline and/or its distributor are not responsible for failure resulting from improper assembly or installation of this product. Moreover, all warranties are void for failure to follow these assembly instructions. STETM** Shelf Panel Insert Cam Post (D) into Leg (N).
- Page 3 Insert Cam Post (D) into Leg (N). Install Cam (E) Modesty Panel (L&K). Install Base Stand-off (G) into threaded inserts in upperside of Leg (N). Attach Modesty Panel (L&K) to assembled end table Base by turning Install Mounting Plate(A) into Base Stand-off (G) by using Screws (H). Cams (E).
