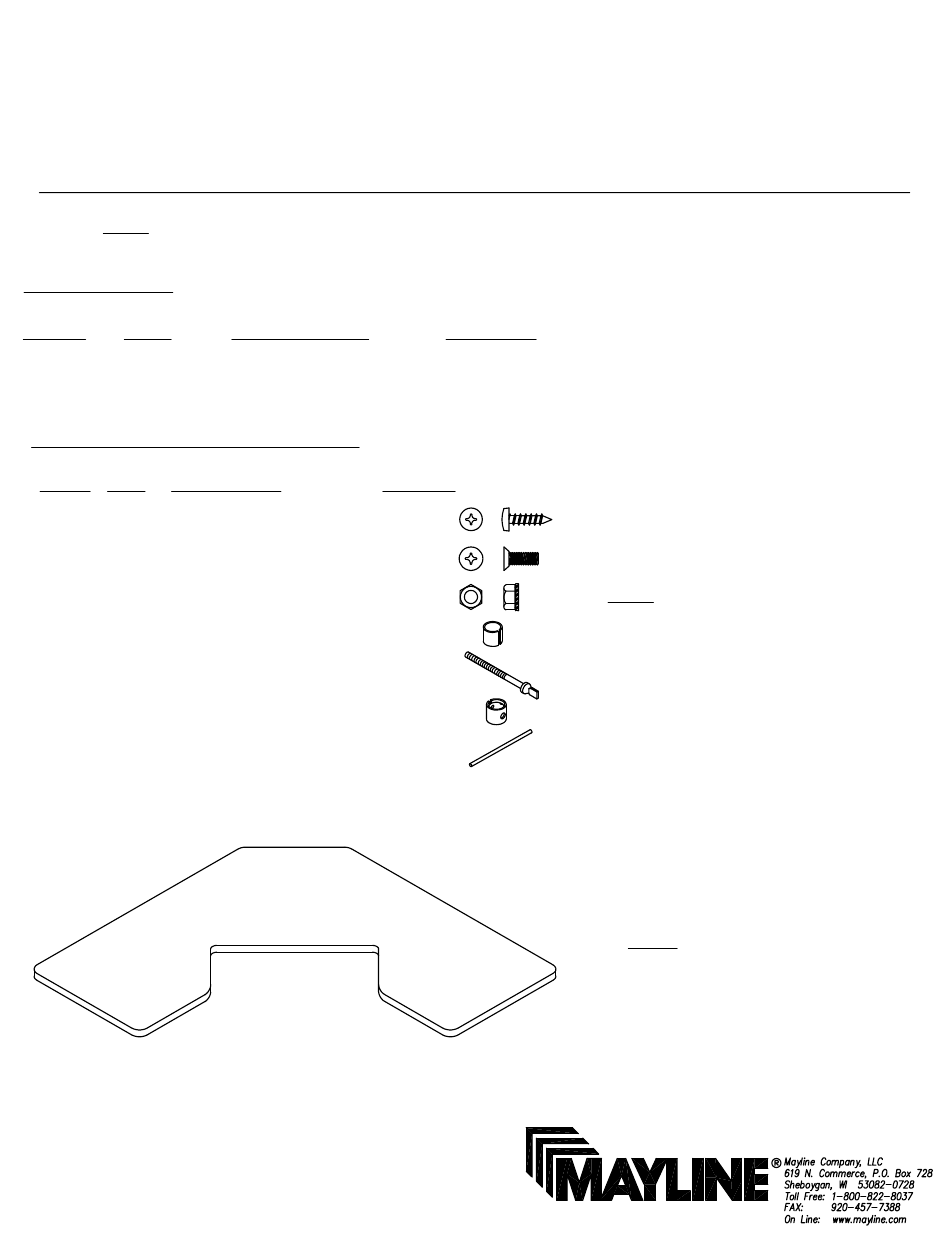

STEALTH ASSEMBLY INSTRUCTIONS
NOTES:
1.) Position assembled base so Power Plug is easily accessible.
2.) Weight distribution of various size tops, as it effects stability, is
the responsibility of the installer
NOTE: Please count and inspect all pieces before disposing of any carton or packing materials.
When ordering components, specific color and/or size information may be required.
COMPONENTS:
Contact a Mayline Customer Service Representative.
REF. #
QTY.
1
1 / 2
2
2
3
2
HARDWARE BAG (PART No. A6975) *for individual item, order that part number
REF. #
QTY.
DESCRIPTION
E1
24
#10 X 3/4 SCREW
E2
8
1/4-20 X 3/4 SCREW
E3
8
1/4-20 KEPS NUT
E4
3
LOCKING SLEEVE
E5
3
DRAW BOLT
E6
3
TIGHTENING ASSEMBLY
E7
1
TIGHTENING ROD
DESCRIPTION
WORK SURFACE
POD ANGLE
JOINING CHANNEL
PART No.
X11*
X332*
T14*
X347*
X348*
X349*
X346*
(1)
.
1-800-822-8037
PART No.
CALL~~**
CALL~~
B4283
(2 piece top only)
NOTE:
Hardware Bag Components are for
various models. All components may
not be used for your application.
** Denotes Color Code
~~Denotes Size
NOTE:
If your table is equipped with a single
piece top, proceed to step #6.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Mayline STEALTH
Summary of Contents for Mayline STEALTH
- Page 1 NOTE: Please count and inspect all pieces before disposing of any carton or packing materials. When ordering components, specific color and/or size information may be required. COMPONENTS: Contact a Mayline Customer Service Representative. 1-800-822-8037 REF. # QTY.
- Page 2 INSTRUCTIONS for 2 Piece Top: 1. Lay the right and left hand work surface, laminate side down, onto a clean and protected surface to avoid scratching during assembly. 2. Insert Tightening Assembly (E6) in 7/8" hole facing threaded end towards the joint. Insert Draw Bolt (E5) and thread into Tightening Assembly, allowing approximately 1 1/4"...
- Page 4 Control Module IMPORTANT - Please Note: Due to the weight and size of the assembled Work Surface, this procedure is best accomplished with two or more individuals. Module Mounting 10. Position the assembled Work Surface so that the Bracket laminate surface is up. Place the Work Surface onto the Power Pod Assembly.
