GenInterlock BRY-200A Manual

Hide thumbs
1
2

Advertisement

Table of Contents

Model
Description
Main Breaker
Generator Breaker
Only qualified personnel should be working on the panel box
An amateur should NEVER open the panel box
Please follow all rules and regulations of the National Electric Code
Step 1: Disassemble the interlock. Place the bottom plate (holes only) on the cover to the edge of the main breaker and the 2 pole
breaker directly below the main and mark holes.
Step 2: Turn off main breaker and remove panel cover.
Step 3: Drill holes as marked on panel cover with supplied 3/16 drill bit and remove all burs from drilling cover.
Step 4: Insert screws from rear of cover, install bottom plate, and install top plate (slotted) install thread lock to screws and install
retaining nuts. Ensure proper movement.
Step 5: Install 2 pole Generator breaker on top left side and place Generator Warning Sticker on Generator breaker.
Step 6: Combine the zip ties to make a loop and install zip ties around top set of breakers in panel as shown in picture below. Pull on
ends to make tight around breakers. Trim zip ties as needed and install Warning label next to release tab on zip tie at
generator breaker.
BRY-200A
Generator Interlock Kit Bryant 150 and 200, Type BJ main Breaker
150 or 200 amp Horizontal throw
Top left 2 spaces
WARNING

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BRY-200A and is the answer not in the manual?

Questions and answers

Related Manuals for GenInterlock BRY-200A

Summary of Contents for GenInterlock BRY-200A

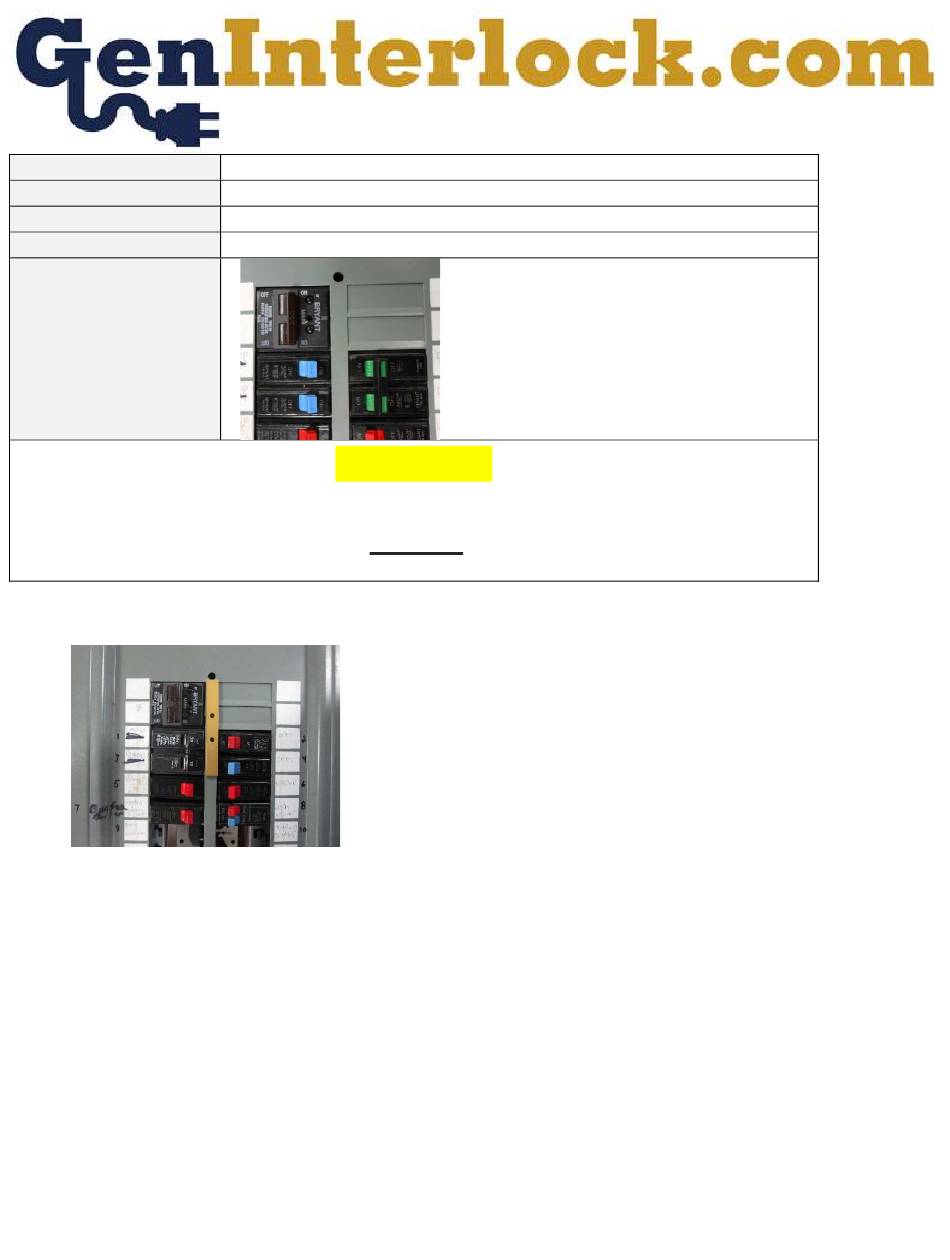

  • Page 1 BRY-200A Model Generator Interlock Kit Bryant 150 and 200, Type BJ main Breaker Description 150 or 200 amp Horizontal throw Main Breaker Top left 2 spaces Generator Breaker WARNING Only qualified personnel should be working on the panel box An amateur should NEVER open the panel box Please follow all rules and regulations of the National Electric Code Step 1: Disassemble the interlock.
