Installation

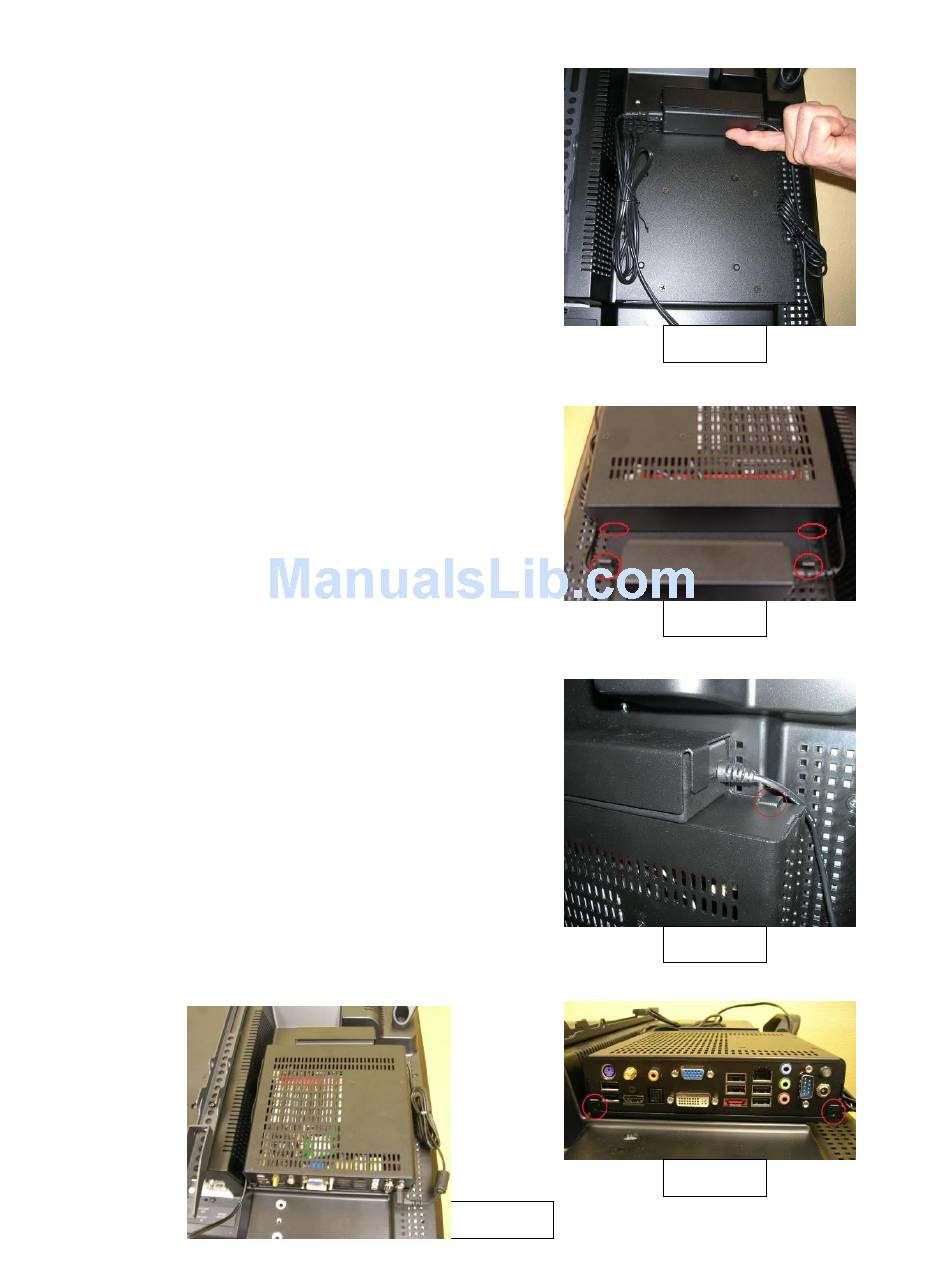

4. Put the AC power adapter
Place the AC power adapter into the
holder on top of the mounting plate as
in Figure 3.
AC power cord faces inside and the
DC power cord to the PN-TPC1 faces
outside.
5. Install the PN-TPC1
If you look at the top side of the PN-
TPC1 before sliding it into the
mounting plate as in Figure 4, there
are two small slits near the edges on
the PN-TPC1 and two small fingers
on either side of AC power adapter
holder on the mounting plate.
As you slide the PN-TPC1 into the
mounting plate, insert the two fingers
into these slits as in Figure 5.
There are two fingers on the bottom of
the mounting plate to catch the PN-
TPC1 in place as shown in Figure 6,
and they need to be tightened with
two include M3 screws.
6. Finish
Plug in the DC power cord into the
PN-TPC1's power connector as in
Figure 7.
Figure 7
Figure 3
Figure 4
Figure 5
Figure 6
