Sharp PN-E421 User Manual page 5

Signage controller
Hide thumbs

Advertisement

Specifications

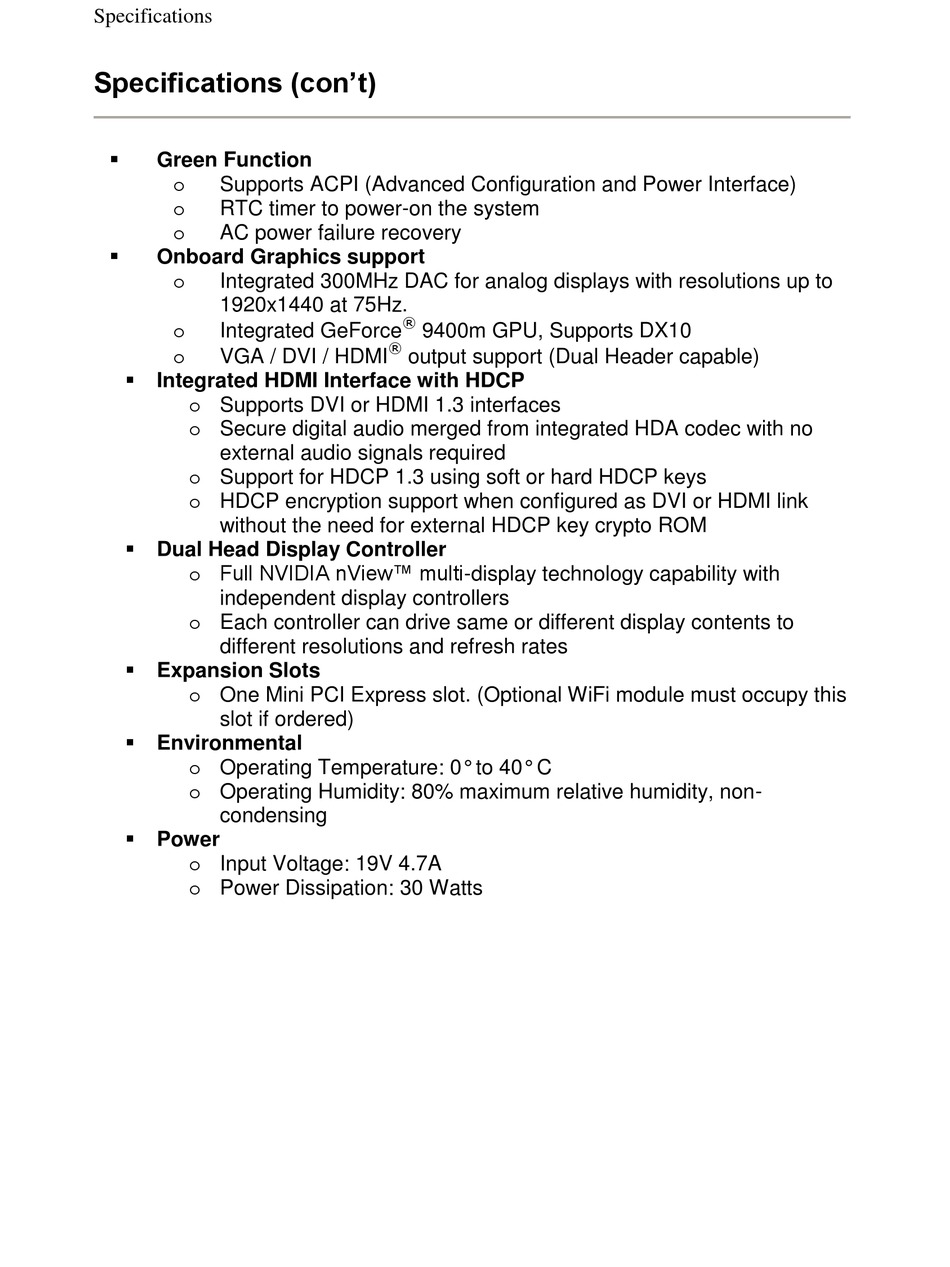

Specifications (con't)
Green Function
o
Supports ACPI (Advanced Configuration and Power Interface)
o
RTC timer to power-on the system
o
AC power failure recovery
Onboard Graphics support
o
Integrated 300MHz DAC for analog displays with resolutions up to
1920x1440 at 75Hz.
o
Integrated GeForce
o
VGA / DVI / HDMI
 Integrated HDMI Interface with HDCP
o Supports DVI or HDMI 1.3 interfaces
o Secure digital audio merged from integrated HDA codec with no
external audio signals required
o Support for HDCP 1.3 using soft or hard HDCP keys
o HDCP encryption support when configured as DVI or HDMI link
without the need for external HDCP key crypto ROM
 Dual Head Display Controller
o Full NVIDIA nView™ multi-display technology capability with
independent display controllers
o Each controller can drive same or different display contents to
different resolutions and refresh rates
 Expansion Slots
o One Mini PCI Express slot. (Optional WiFi module must occupy this
slot if ordered)
 Environmental
o Operating Temperature: 0° to 40° C
o Operating Humidity: 80% maximum relative humidity, non-
condensing
 Power
o Input Voltage: 19V 4.7A
o Power Dissipation: 30 Watts
®
9400m GPU, Supports DX10
®
output support (Dual Header capable)
