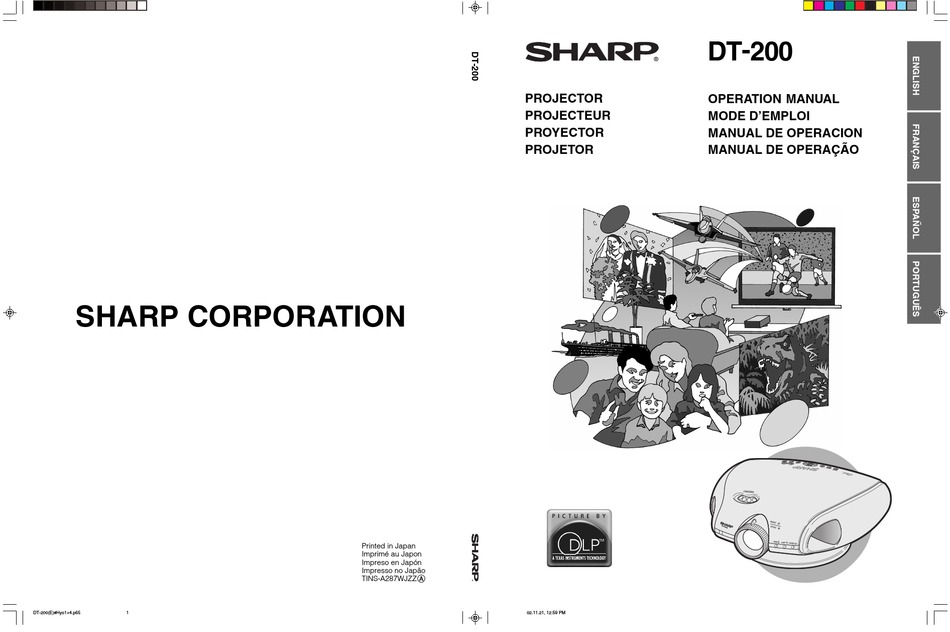

Page 1: Sharp Corporation
SHARP CORPORATION DT-200(E)#Hyo1+4.p65 PROJECTOR PROJECTEUR PROYECTOR PROJETOR Printed in Japan Imprimé au Japon Impreso en Japón Impresso no Japão TINS-A287WJZZA 02.11.21, 12:59 PM DT - 200 OPERATION MANUAL MODE D’EMPLOI MANUAL DE OPERACION MANUAL DE OPERAÇÃO... -
Page 2: Product Disposal
2. CONSUMER PRODUCT SAFETY ACT To ensure that you will promptly receive any safety notification of inspection, modification, or recall that SHARP may be required to give under the 1972 Consumer Product Safety Act, PLEASE READ CAREFULLY THE IMPORTANT “LIMITED WARRANTY” CLAUSE. -
Page 3: Declaration Of Conformity
L’INTERIEUR DU BOITIER ETANT EXTREMEMENT CHAUD, ATTENDRE 1 HEURE AVANT DE PROCEDER AU REMPLACEMENT DE LA LAMPE. NE REMPLACER QUE PAR UNE LAMPE SHARP DE TYPE BQC-XVZ90+++1. RAYONS ULTRAVIOLETS : PEUVENT ENDOMMAGER LES YEUX. ETEINDRE LA LAMPE AVANT DE PROCEDER A L’ENTRETIEN. -
Page 4: Important Safeguards
IMPORTANT SAFEGUARDS Electrical energy can perform many useful functions. This product has been engineered and manufactured to ensure your personal safety. However IMPROPER USE CAN RESULT IN POTENTIAL ELECTRICAL SHOCK OR FIRE HAZARD. In order not to defeat the safeguards incorporated into this Projector, observe the following basic rules for its installation, use and servicing. -
Page 5: Caution Concerning The Lamp Unit
Caution Concerning the Lamp Unit There is a potential hazard of glass particles if the lamp ruptures. In case of lamp rupture, contact your nearest Sharp Authorized Service Center or Dealer for a replacement. See “Replacing the Lamp” on page 45. - Page 6 IMPORTANT SAFEGUARDS DT-200(E)#p01_07.p65 Temperature Monitor Function If the projector starts to overheat due to setup problems “TEMP” and “ ” will blink in the lower-left corner of the picture. If the temperature continues to rise, the lamp will turn off, the TEMPERATURE WARNING indicator on the projector will blink, and after a 90-second cooling-off period the power will shut off.
-
Page 7: Table Of Contents
Contents Important Information IMPORTANT SAFEGUARDS ... 3 Contents ... 6 Outstanding Features ... 7 Part Names ... 8 Supplied Accessories ... 11 Setup & Connections Connections ... 12 Power Supply ... 12 Connecting to Video Equipment ... 12 Connecting to a DVD Player and DTV Decoder ... -
Page 8: Outstanding Features
Outstanding Features 1. DMD™* (Digital Micromirror Device) Chip The DMD Chip allows for a higher contrast image. It enables smoother expression of details of an image, and high picture quality for an exciting theater experience. * Digital Light Processing, DLP, Digital Micromirror Device and DMD are trademarks of Texas Instruments. 2. -
Page 9: Part Names
Part Names Numbers next to the part names refer to the main pages in this manual where the topic is explained. Projector Front and Top View Lens shift dial Zoom knob Exhaust ventilative hole Focus ring Remote control sensor UNDO button KEYSTONE button PICTURE SETTING button ENTER button... -
Page 10: Part Names
Part Names Numbers next to the part names refer to the main pages in this manual where the topic is explained. Projector Side and Rear View Intake ventilative hole INPUT 2 DVI digital port AC socket Attaching the Lens Cap After putting the lens cap strap on the lens cap, pass the other end of the strap through the hole under the projector, next to the lens. -
Page 11: Remote Control
Part Names Remote Control POWER buttons (ON/OFF) KEYSTONE button ENTER button UNDO button INPUT 1 button INPUT 2 button INPUT 4 button AUTO SYNC button RGB/COMP. button Inserting the batteries Pull down the tab on the battery cover and remove the cover towards the direction of the arrow. -
Page 12: Supplied Accessories
Supplied Accessories Remote control RRMCGA088WJSA Lens cap CCAPHA004WJ01 E-11 DT-200(E)#p08_11.pm6 Two AA size batteries Power cord QACCDA007WJPZ Lens cap strap Operation manual UBNDT0013CEZZ TINS-A287WJZZA Video cable QCNWGA001WJZZ 02.11.21, 11:29 AM... -
Page 13: Connections
Connections Power Supply Connecting the Power Cord Plug the supplied power cord into the AC socket on the back of the projector. CAUTION • Make sure the power cord is firmly connected into the AC socket. • The projector will enter the standby mode as you re-plug it into the AC socket, when unplugging the power cord after turning the power off by pressing the POWER button. -
Page 14: Connecting To A Dvd Player And Dtv Decoder
Connecting to Video Equipment Projector S-video cable (commercially available) Video cable Connecting to a DVD Player and DTV Decoder Connecting to a DVD player and DTV decorder with Component output (for INPUT 1) Projector Connecting to a DVD player and DTV decoder with component output (for INPUT 2) 1 Connect the 3 RCA to 15-pin D-Sub cable using the DVI to 15-pin D-Sub adaptor. -
Page 15: Connecting To A Computer
Connecting to a DVD Player and DTV Decoder Connecting to a DTV decoder with DVI output 1 Slide the “DIGITAL INPUT TYPE” switch on the back terminal board to “VIDEO”. 2 Connect the DVI cable to the DIGITAL INPUT terminal. 3 Connect the other end to the Corresponding terminal on a DVD player and DTV decorder. -
Page 16: Operating The Remote Control
• The arrows (→, ↔) in the configuration above indicate the direction of the signals. • A Macintosh adaptor may be required for use with some Macintosh computers. Contact your nearest Sharp Authorized Service Center or Dealer. -
Page 17: Power On/Off
Power ON/OFF TEMP. LAMP POWER A dimly lit screen is displayed for a short time (about 20 seconds) to reduce lamp damage. Zooming and Focusing The picture can be zoomed in or out, and focused by the Zoom knob and the Focus ring. DT-200(E)#p15_21.p65 Press POWER ON. -
Page 18: Setting Up The Screen
Setting Up the Screen Using the Swivel Stand Removing- stand button E-17 DT-200(E)#p15_21.p65 You can adjust the angle and direction of the projected image by using the Swivel Stand. 1 Unlock the lever on the Swivel Stand. 2 Adjust the angle and direction of the projected image as you want by lifting up the projector and rotating the projector on the Swivel Stand. -
Page 19: Using The Lens Shift
Using the Lens Shift The picture can be adjusted within the shift range of the lens by rotating the lens shift dial on the top of the projector using your finger. Projector DT-200(E)#p15_21.p65 Projected Image Lens shift dial 02.11.21, 11:30 AM DOWN E-18... -
Page 20: Keystone Correction
Keystone Correction 1, 4 FREEZE E-19 DT-200(E)#p15_21.p65 This function can be used to adjust the Keystone settings. • For details about using the menu screen, see page 26. Description of 2D Keystone Correction Selected item Description H Keystone Horizontally adjusts the keystone settings. V Keystone Vertically adjusts the keystone settings. -
Page 21: Placement Of The Projected Image Using The Keystone Correction
Placement of the Projected Image Using the Keystone Correction : Screen area DT-200(E)#p15_21.p65 Place the projector at a distance from the screen that allows images to be projected onto the screen by referring to “Adjusting the Projection Distance” on pages 21 and 22. 1 Project the test pattern of the Keystone correction function onto the screen. -
Page 22: Adjusting The Projection Distance
Adjusting the Projection Distance • Refer to pages 19 and 20 about the function of Keystone correction and placement of projector using the correction. • Decide the placement of the projector referring to the figures on the table and the diagram below according to the size of your screen and Input Signal. - Page 23 Adjusting the Projection Distance Upper and Lower Lens Shift Position • This projector is equipped with a lens shift function that lets you adjust the projection height. • Adjust it to match the setup configuration. • The screen can be moved maximum the length of one screen vertically using the lens shift. •...
-
Page 24: Image Projection
• When using a mirror, be sure to carefully position both the projector and the mirror so the light does not shine into the eyes of the audience. • It is recommended that you use the optional Sharp ceiling-mount bracket for this installation. • Before mounting the projector, remove the Swivel Stand. -
Page 25: Using The Operation Buttons
Using the Operation Buttons Selecting the Input Signal Source Adjusting the Picture Aspect Ratio DT-200(E)#p24_25.p65 Press INPUT on the projector, INPUT 1, INPUT 2, INPUT 3, INPUT 4 or DIGITAL INPUT on the remote control to select the desired input mode. •... -
Page 26: Freeze Function
Adjusting the Picture Aspect Ratio Input Signal COMPUTER Image Type / VIDEO 4:3 aspect ratio 480i 480P VGA (640x480) 540P SVGA (800x600) NTSC XGA (1024x768) SECAM Letter Box Squeezed 16:9 Squeezed 4:3 image 16 : 9 aspect ratio 720P — 1080i Mode for projecting an image with the original aspect ratio without cutting any portions. -
Page 27: Using The Menu Screen
Using the Menu Screen Basic Operations 2, 3, INPUT 1 (COMPONENT), 2 (COMPONENT or analog RGB) or DIGITAL INPUT (digital RGB) mode DT-200(E)#p26_32.p65 This projector has two sets of menu screens that allow you to adjust the image and various projector settings. These menu screens can be operated from the projector or the remote control with the following procedure. -
Page 28: Menu Bars
Lower Right frequency figures displayed above are for example Upper Left purposes only. • “Color”, “Tint”, and “Sharp” do not appear when “RGB” is Lower Left selected in INPUT 2 mode. Opaque • Only the items highlighted in the tree charts above can Translucent be adjusted. -
Page 29: Main Menu
Menu Bars Items on the INPUT 3 or 4 Mode Menu Bar Main menu Sub menu Picture ( Contrast Bright Color Tint Sharp Blue Reset CLR Temp Gamma White Emphasis [ON/OFF] Picture Setting Options ( Digital Shift Subtitle Reset Lamp Timer... -
Page 30: Adjusting The Picture
Gamma White Emphasis Picture Setting Reset • “Color”, “Tint” and “Sharp” do not appear for RGB input in INPUT 2 mode. • For details on “Gamma”, see “Gamma Correction Function” on page 31. • For details on “CLR Temp”, see “Adjusting the Color Temperature”... -
Page 31: Adjusting The Color Temperature
Adjusting the Picture 2, 3 On-screen Display 2, 3 On-screen Display DT-200(E)#p26_32.p65 Adjusting the Color Temperature This function allows for selecting the desired color temperature from six settings. With the lower value selected, the projected image becomes warmer, reddish and incandescent-like while with the higher value, the image becomes cooler, bluish and fluorescent-like. -
Page 32: Gamma Correction Function
Adjusting the Picture 2, 3 On-screen Display Standard Brighten E-31 DT-200(E)#p26_32.p65 Gamma Correction Function Gamma is an image quality enhancement function. Four gamma settings are available to allow for differences in the brightness of the room. Description of Gamma Modes Selected Mode Standard 1, 5... -
Page 33: Picture Setting Function
Adjusting the Picture 2, 3 On-screen Display DT-200(E)#p26_32.p65 Picture Setting Function This function stores all items set in “Picture”. Five settings can be stored separately in “Memory 1” to “Memory 5”. Each stored setting is reassigned to each input mode (INPUT 1 to INPUT 4 and DIGITAL). Even when the input mode or signal is changed, you can easily select optimal settings from the stored settings. -
Page 34: Adjusting The Computer And Dvd/Dtv Images
Adjusting the Computer and DVD/DTV Images 2,3,4 On-screen Display E-33 DT-200(E)#p33.p65 When displaying computer patterns which are very detailed (tiling, vertical stripes, etc.), interference may occur between the DMD pixels, causing flickering, vertical stripes, or contrast irregularities in portions of the screen. -
Page 35: Special Modes Adjustment
Adjusting the Computer and DVD/DTV Images 2,3,4 On-screen Display On-screen Display DT-200(E)#p34_35.p65 Special Modes Adjustment Ordinarily, the type of input signal is detected and the correct resolution mode is automatically selected. However, for some signals, the optimal resolution mode in “Special Modes” on the “Fine Sync” menu screen may need to be selected to match the computer display mode. -
Page 36: Auto Sync Adjustment
Adjusting the Computer and DVD/DTV Images 2,3,4 AUTO SYNC button On-screen Display AUTO SYNC button FREEZE E-35 DT-200(E)#p34_35.p65 Auto Sync Adjustment • Used to automatically adjust a computer image. • Select whether the image is to be synchronized automatically when switching the signal with “ON” or “OFF”. -
Page 37: Turning On/Off The On-Screen Display
Turning On/Off the On-screen Display 2,3,4 On-screen Display Selecting the Signal Type 2,3,4 RGB/COMP. button On-screen Display DT-200(E)#p36_40.p65 This function allows you to turn on or off the on-screen messages that appear during input select. Description of OSD Display Selected item Description ON ( All On-screen Display are displayed. -
Page 38: Setting The Video Signal (Video Menu Only)
Setting the Video Signal (VIDEO menu only) 2,3,4 On-screen Display Selecting a Background Image 2,3,4 On-screen Display E-37 DT-200(E)#p36_40.p65 The video input system mode is preset to “Auto”; however, it can be changed to a specific system mode if the selected system mode is not compatible with the connected audiovisual equipment. -
Page 39: Adjustments For The Screen Position And Size
Adjustments for the Screen Position and Size 2,3,4 On-screen Display DT-200(E)#p36_40.p65 You can adjust settings according to the position and size of the screen. Description of Adjustment Items Selected item Description Digital Shift Adjusts the vertical position of the image. Subtitle Adjusts the vertical size of the image. -
Page 40: Subtitle Setting
Adjustments for the Screen Position and Size 2,3,4 On-screen Display E-39 DT-200(E)#p36_40.p65 Subtitle Setting With this function, you can adjust the vertical size of the display to allow for subtitles. Description of Subtitle Setting button 1, 5 The image is compressed by adjusting the vertical size of the display. -
Page 41: Selecting The Menu Screen Position
Selecting the Menu Screen Position 2,3,4 On-screen Display Selecting the Menu Color 2,3,4 On-screen Display DT-200(E)#p36_40.p65 This function allows you to select the desired position of the menu screen. Description of Menu Position Selected Description item Center The menu is displayed on the center of the image. 1, 6 Upper Right The menu is displayed on the upper right of the image. -
Page 42: Automatic Power Shut-Off Function
Automatic Power Shut-off Function 2,3,4 On-screen Display E-41 DT-200(E)#p41_42.p65 When no input signal is detected for more than 15 minutes, the projector will automatically shut off. The on-screen message on the left will appear five minutes before the power is automatically turned off. Description of Automatic Power Shut-off Selected Description... -
Page 43: Reversing/Inverting Projected Images
Reversing/Inverting Projected Images On-screen Display Selecting the On-screen Display Language On-screen Display DT-200(E)#p41_42.p65 This projector is equipped with a reverse/invert image function which allows you to reverse or invert the pro- jected image for various applications. Description of Projected Images Selected item Front 1, 5... -
Page 44: Lamp/Maintenance Indicators
• Clogged ventilative hole. • Clean the ventilative holes. (See page 48.) • Cooling fan breakdown. • Take the projector to your nearest Sharp • Internal circuit failure. Authorized Service Center or Dealer for repair. • Burnt-out lamp. -
Page 45: Lamp Maintenance
(lamp/cage module) of the current type BQC-XVZ90+++1 from your nearest Sharp Authorized Service Center or Dealer. • Replace the lamp. (See page 45.) If you wish, you may have the lamp replaced at your nearest Sharp Authorized Service Center or Dealer. E-44... -
Page 46: Replacing The Lamp
Center or Dealer for repair. Purchase a replacement lamp unit (lamp/cage module) of the current type BQC-XVZ90+++1 from your nearest Sharp Authorized Service Center or Dealer. Then carefully change the lamp by following the instructions on the next page. If you wish, you may have the lamp replaced at your nearest Sharp Authorized Service Center. - Page 47 Replacing the Lamp Removing and installing the lamp unit CAUTION • Be sure to remove the lamp cage by the handle. Do not touch the glass surface of the lamp cage or the inside of the projector. • To avoid injury to yourself and damage to the lamp, carefully follow the steps below. •...
- Page 48 Replacing the Lamp Attach the lamp unit cover. Press POWER ON on the projector to reset the lamp timer. Press order. Then press “LAMP 0000H” is displayed on the screen. • You need to reset the lamp timer every time you replace the lamp and confirm it is reset on the “Lamp Timer” menu. E-47 DT-200(E)#p46_47.p65 Tighten the user...
-
Page 49: Cleaning The Ventilative Holes
Cleaning the Ventilative Holes • This projector is equipped with ventilative holes to ensure the optimal operating condition of the projector. • Periodically clean the ventilative hole by vacuuming it off with a vacuum cleaner. • The ventilative holes should be cleaned every 100 hours of use. Clean the ventilative holes more often when the projector is used in a dirty or smoky location. -
Page 50: Using The Kensington Lock
Image is pink (no green) on INPUT 2 RGB. Service Information (For the U.S.) For the location of the nearest Sharp Authorized Service Center, or to obtain product literature, accessories, supplies or customer assistance, please call 1-800-BE-SHARP (1-800-237-4277) or visit SHARP’s website (http://www.sharpusa.com). -
Page 51: Connecting Pin Assignments
Connecting Pin Assignments DVI-I (INPUT 2 / DIGITAL INPUT) port : 29 pin connector • • • • • • • • • • • • • • • • • • • • • • • • • • •... -
Page 52: Computer Compatibility Chart
Computer Compatibility Chart Horizontal Frequency: 15–70 kHz Vertical Frequency: 43–75 Hz Pixel Clock: 12–110 MHz Compatible with sync on green XGA compatible in intelligent compression Horizontal Vertical MAC/ Resolution Frequency Frequency (kHz) 27.0 31.5 27.0 31.5 27.0 31.5 27.0 31.5 26.2 31.5 34.7... -
Page 53: Dimensions
Dimensions Rear View Side View Top View Side View Front View (368) Bottom View Units: inches (mm) E-52 DT-200(E)#p50_59.p65 02.11.21, 11:45 AM... -
Page 54: Specifications
Weight (approx.) Supplied accessories Replacement parts This SHARP projector uses a DMD chip. This very sophisticated chip contains 480,000 pixels. As with any high technology electronic equipment such as large screen TVs, video systems and video cameras, there are certain acceptable tolerances that the equipment must conform to. -
Page 55: Glossary
Glossary Aspect ratio Width and height ratio of an image. The normal aspect ratio of a computer and video image is 4 : 3. There are also wide images with an aspect ratio of 16 : 9 and 21 : 9. Auto Sync Optimizes projected computer images by automatically adjusting certain characteristics. -
Page 56: Index
Index AC socket ... 12 ADJUSTMENT buttons ... 26 Adjusting the Picture ... 29 Aspect ratio ... 24 Automatic power shut-off function ... 41 Auto sync adjustment ... 35 AUTO SYNC button ... 35 Background ... 37 Ceiling-mount ... 22 Clock ... -
Page 57: Consumer Limited Warranty (Valid In Usa Only)
Sharp to the purchaser with respect to the Product, and shall constitute full satisfaction of all claims, whether based on contract, negligence, strict liability or otherwise. In no event shall Sharp be liable, or in any way responsible, for any damages or defects in the Product which were caused by repairs or attempted repairs performed by anyone other than an authorized servicer. -
Page 58: Limited Warranty (Valid In Canada Only)
(b) Any Sharp product tampered with, modified, adjusted or repaired by any party other than Sharp, Sharp’s Authorized Service Centres or Sharp’s Authorized Servicing Dealers. (c) Damage caused or repairs required as a result of the use with items not specified or approved by Sharp, including but not limited to head cleaning tapes and chemical cleaning agents. - Page 59 Memo DT-200(E)#memo.p65 02.11.21, 11:47 AM...
