WARNING: If the instructions in this manual is not followed exactly, a
fire or explosion may result causing property damage, personal injury
or death.
- Do not store or use gasoline or other flammable vapors or liquids in the
vicinity of this or any other appliance.
- WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch.
• Do not use any phone in your building.
• Immediately call your gas supplier from a neighbor's phone. Follow the
gas supplier's instructions.
• If you cannot reach your gas supplier, call the fire department.
- Installation and service must be performed by a qualified installer, service
agency or gas supplier.
NOTE: This appliance must be installed solely and exclusively by a qualified
technician. Any technical procedures must be carried out by an authorized
technician.
Table of Contents
8
8
9
10
11
15
18
23
3
Advertisement
Related Manuals for Smeg CPF48UGMWH

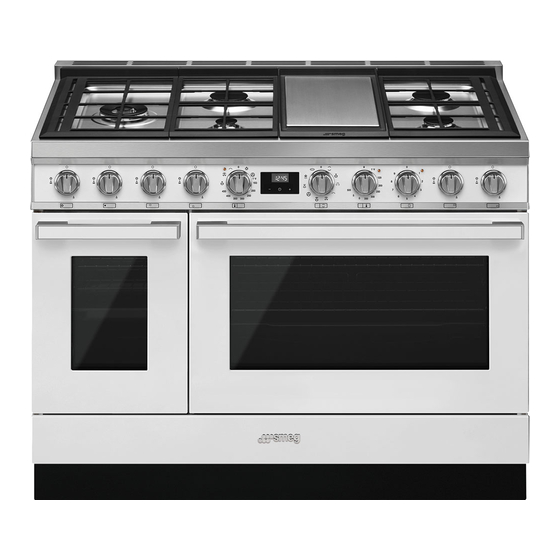

Summary of Contents for Smeg CPF48UGMWH
-
Page 1: Table Of Contents
Table of Contents 1 Installation 1.1 Dimension Requirements 1.2 Product dimensions 1.3 Unpacking, moving and positioning the range 1.4 Wall attachment and anti-tip device 1.5 Electrical requirements 1.6 Gas supply requirements 1.7 For the installer WARNING: If the instructions in this manual is not followed exactly, a fire or explosion may result causing property damage, personal injury or death. - Page 2 Important Safety Instructions TIP OVER HAZARD • A child or adult can tip the range and be killed. • Make sure that the anti-tip device has been properly installed and attached. The wall-mounted brackets should anchor the WARNING sides of the range (primary system) or, in case of floor- mounted brackets, they should anchor the rear of the range to the ground.
- Page 3 Important Safety Instructions • This appliance is intended for use in the home only. • Use this appliance only for its intended purpose. The manufacturer cannot be held liable for damage caused by improper use of this range. WARNING • This appliance complies with current safety regulations. Improper use of this range can result in personal injury and material damage.
- Page 4 Important Safety Instructions WARNING To reduce the risk of fire, electrical shock, personal injury, or damage when using the range, follow basic safety precautions, including the following: WARNING PRIMARY FASTENING SYSTEM: Visually check that the wall-mounted brackets are inserted into the appropriate lateral hooks (on both sides).
- Page 5 Important Safety Instructions • Never modify or alter the construction of How to read the user manual the appliance. For example, do not This user manual uses the following reading remove adjustable legs, panels, wiring conventions: or anti-tip brackets/screws. Installation CAUTION: This unit is designed as Information for the qualified a cooking appliance.
-
Page 6: Installation
Installation 1 Installation 4. min. when bottom of wood or metal cabinet is protected by not less than ¼” 1.1 Dimension Requirements (0.64 cm) flame retardant millboard covered with not less than No. 28 MSG sheet steel, 0.015" (0.4 mm) stainless steel, 0.024"... -
Page 7: Product Dimensions
Installation 1.2 Product dimensions Check the location where the range is to be installed. The range should be positioned Overall dimensions: Location of gas and for convenient access in the kitchen. electrical connection points. NOTE: Observe all governing codes and ordinances. Any openings in the wall or floor where the range is to be installed must be sealed. -
Page 8: Unpacking, Moving And Positioning The Range
Installation An air curtain or other overhead range • Remove angle-mounting brackets from hood, which operates by blowing a the range. downward airflow onto a range, shall not • Due to the weight, a dolly/fork lift with be used in conjunction with the gas range soft rubber tread wheels should be used unless the hood and range have been to move this unit. -
Page 9: Wall Attachment And Anti-Tip Device
Installation 1.4 Wall attachment and anti-tip device Warning Electrical shock hazard • Use extreme caution when drilling holes into the wall or floor. There may be concealed electrical wiring located behind the wall or under the floor. • Identify the location of the electrical circuits that could be affected by the installation of the anti-tip device, then turn off power to these circuits. - Page 10 Installation Instructions for wall mounting (primary 2. Align the base of the hook on the system) fastening bracket with the base of the slot on the wall fastening plate. 1. Assemble the fastening bracket. 3. Align the base of the fastening bracket with the ground and tighten the screws to fix the measurements.
- Page 11 Installation 4. Use 50 mm for the distance from the 6. After drilling the holes in the wall, use side of the appliance to the bracket wall plugs and screws to fasten the holes. bracket to the wall. 7. Push the cooker towards the wall, and at the same time, insert the bracket in the plate fastened to the rear of the appliance.
- Page 12 Installation 1. Assemble the fastening bracket as shown 3. After having positioned and leveled the in the figure. Join the two parts without appliance, move the bracket close to the tightening them too much since there will rear of the appliance and anchor it to the be other adjustments to make.
-
Page 13: Electrical Requirements
Installation 1.5 Electrical requirements Make sure that the power line rating matches the specifications indicated on the Warning ID plate. The ID Plates are visibly located Electrical shock hazard on the back of the appliance and on the oven door frame. These ID plates must never be removed. - Page 14 Installation • lf codes permit and a separate ground • This appliance is manufactured with a wire is used, it is recommended that the green-yellow or green ground wire suitability of the ground path be checked connected to the oven frame. Make sure by a qualified electrician.
- Page 15 Installation U.S. Installation only / 3-wire branch U.S. and Canada installation / 4-wire circuit branch circuit Refer to figure, where local codes allow the • Separate the green or yellow-green connection of the ground wire from the wires from the white wires that extend out oven to the power supply cable neutral of the end of the appliance cable.
-
Page 16: Gas Supply Requirements
Installation • Connect to a 50A fuse or circuit breaker. This installation must conform with all local Connect to copper wire, or, if codes and ordinances. In the absence of connection is made to aluminum house local codes, installation must conform to wiring, use UL-listed or CSA-approved American National Fuel Gas Code, ANSI connectors approved for joining... - Page 17 Installation Always use pipe-joint compound made for Due to problems of overall dimensions at use with NATURAL GAS and L.P. GAS the back, screw in the pressure regulator so between pressure regulator D and NPT that it is sloped at 45° vs the wall at the adaptor C and between pressure regulator back of the appliance.
- Page 18 Installation Test the appliance W.C.P maximum. Follow these instructions to leak test the appliance: Use a brush and liquid detergent to test all gas connections for leaks. Bubbles around connections indicate a leak. If a leak appears, shut off the gas valve controls and adjust the connections.
- Page 19 Installation The range and its individual shut-off valve Assembling the backguard must be disconnected from the gas supply The backguard provided is an piping system during any pressure testing of integral part of the product; it must that system at test pressures greater than be fastened to the appliance prior ½...
- Page 20 Installation Installing the front skirting 3. Fasten the front skirting to the appliance using the previously removed screws. The front skirting must always be positioned and secured correctly on the appliance. Installing the side skirting 1. Use a screwdriver to remove the front After installing the front skirting, the side screws undreneath the storage skirting can be fastened correctly to the...
-
Page 21: For The Installer
Installation 3. Line up the holes on the side skirting with 1.7 For the installer the rear holes on the base of the • The plug must remain accessible after the appliance. installation is complete. Do not kink or trap the mains connection cable. •... - Page 22 PAGE INTENTIONALLY LEFT BLANK...
