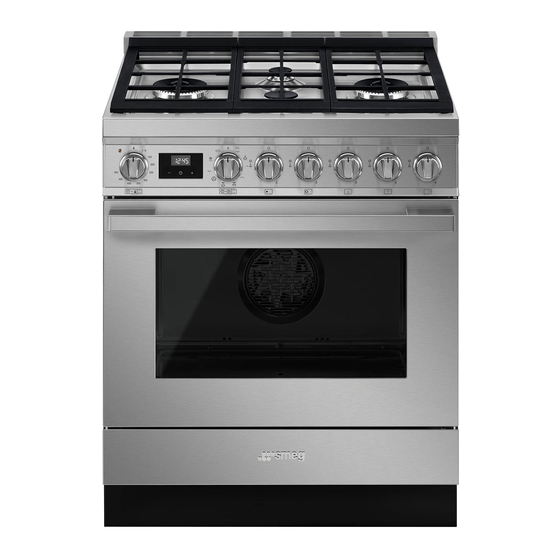

WARNING: If the instructions in this manual is not followed exactly, a
fire or explosion may result causing property damage, personal injury
or death.
- Do not store or use gasoline or other flammable vapors or liquids in the
vicinity of this or any other appliance.
- WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch.
• Do not use any phone in your building.
• Immediately call your gas supplier from a neighbor's phone. Follow the
gas supplier's instructions.
• If you cannot reach your gas supplier, call the fire department.
- Installation and service must be performed by a qualified installer, service
agency or gas supplier.
NOTE: This appliance must be installed solely and exclusively by a qualified
technician. Any technical procedures must be carried out by an authorized
technician.
Table of Contents
8
8
9
10
11
14
18
24
3
Advertisement
Related Manuals for Smeg CPF30UGMX
Summary of Contents for Smeg CPF30UGMX
-
Page 1: Table Of Contents
Table of Contents 1 Installation 1.1 Dimension Requirements 1.2 Product dimensions 1.3 Unpacking, moving and positioning the range 1.4 Wall attachment and anti-tip device 1.5 Electrical requirements 1.6 Gas supply requirements 1.7 For the installer WARNING: If the instructions in this manual is not followed exactly, a fire or explosion may result causing property damage, personal injury or death. - Page 2 Important Safety Instructions TIP OVER HAZARD • A child or adult can tip the range and be killed. • Make sure that the anti-tip device has been properly installed and attached. The wall-mounted brackets should anchor the WARNING sides of the range (primary system) or, in case of floor- mounted brackets, they should anchor the rear of the range to the ground.
- Page 3 Important Safety Instructions • This appliance is intended for use in the home only. • Use this appliance only for its intended purpose. The manufacturer cannot be held liable for damage caused by improper use of this range. WARNING • This appliance complies with current safety regulations. Improper use of this range can result in personal injury and material damage.
- Page 4 Important Safety Instructions WARNING To reduce the risk of fire, electrical shock, personal injury, or damage when using the range, follow basic safety precautions, including the following: WARNING PRIMARY FASTENING SYSTEM: Visually check that the wall-mounted brackets are inserted into the appropriate lateral hooks (on both sides).
- Page 5 Important Safety Instructions • Never modify or alter the construction of How to read the user manual the appliance. For example, do not This user manual uses the following reading remove adjustable legs, panels, wiring conventions: or anti-tip brackets/screws. Installation CAUTION: This unit is designed as Information for the qualified a cooking appliance.
-
Page 6: Installation
Installation 1 Installation 4. min. when bottom of wood or metal cabinet is protected by not less than ¼” 1.1 Dimension Requirements (0.64 cm) flame retardant millboard covered with not less than No. 28 MSG sheet steel, 0.015" (0.4 mm) stainless steel, 0.024"... -
Page 7: Product Dimensions
Installation 1.2 Product dimensions Check the location where the range is to be installed. The range should be positioned Overall dimensions: Location of gas and for convenient access in the kitchen. electrical connection points. NOTE: Observe all governing codes and ordinances. Any openings in the wall or floor where the range is to be installed must be sealed. -
Page 8: Unpacking, Moving And Positioning The Range
Installation 1.3 Unpacking, moving and • Legs should be installed near to where the appliance will be used as they are positioning the range not secure for long transit. Keep the unit CAUTION: This unit is designed as raised so the legs can be screwed into a cooking appliance. -
Page 9: Wall Attachment And Anti-Tip Device
Installation 1.4 Wall attachment and anti-tip device Warning Electrical shock hazard • Use extreme caution when drilling holes into the wall or floor. There may be concealed electrical wiring located behind the wall or under the floor. • Identify the location of the electrical circuits that could be affected by the installation of the anti-tip device, then turn off power to these circuits. - Page 10 Installation Instructions for wall mounting (primary 3. Align the base of the fastening bracket system) with the ground and tighten the screws to fix the measurements. 1. Assemble the fastening bracket. 4. Use 50 mm for the distance from the side of the appliance to the bracket holes.
- Page 11 Installation 5. Move the bracket onto the wall and Instructions for floor mounting (secondary system) mark the position of the holes to be drilled in the wall. The secondary anti-tip device is to be attached to the floor when it is not possible to install the primary system.
-
Page 12: Electrical Requirements
Installation 2. After having positioned and leveled the 1.5 Electrical requirements appliance, move the bracket close to the Warning rear of the appliance and anchor it to the Electrical shock hazard floor. 3. The bracket attachment should insert into • Frame grounded by connection of one of the central slots at the rear. - Page 13 Installation Make sure that the power line rating • lf codes permit and a separate ground matches the specifications indicated on the wire is used, it is recommended that the ID plate. The ID Plates are visibly located suitability of the ground path be checked on the back of the appliance and on the by a qualified electrician.
- Page 14 Installation • This appliance is manufactured with a U.S. Installation only / 3-wire branch green-yellow or green ground wire circuit connected to the oven frame. Make sure Refer to figure, where local codes allow the that the power has been turned off then connection of the ground wire from the connect the flexible connector.
- Page 15 Installation U.S. and Canada installation / 4-wire • Connect the white wire from the branch circuit appliance to the neutral white wire in the junction box using a UL/CSA listed wire • Separate the green or yellow-green connector. wires from the white wires that extend out of the end of the appliance cable.
-
Page 16: Gas Supply Requirements
Installation 1.6 Gas supply requirements This installation must conform with all local codes and ordinances. In the absence of Warning local codes, installation must conform to Explosion hazard American National Fuel Gas Code, ANSI Z223.1/NFPA 54 or, in Canada, the Natural Gas and Propane Installation •... - Page 17 Installation Always use pipe-joint compound made for Due to problems of overall dimensions at use with NATURAL GAS and L.P. GAS the back, screw in the pressure regulator so between pressure regulator D and NPT that it is sloped at 45° vs the wall at the adaptor C and between pressure regulator back of the appliance.
- Page 18 Installation Test the appliance • Natural Gas: manifold pressure 5” W.C.P. Incoming line pressure 6”-10.5” Follow these instructions to leak test the W.C.P. appliance: Use a brush and liquid detergent to test all gas connections for leaks. Bubbles around connections indicate a leak. If a leak appears, shut off the gas valve controls and adjust the connections.
- Page 19 Installation The range and its individual shut-off valve Assembling the backguard must be disconnected from the gas supply The backguard provided is an piping system during any pressure testing of integral part of the product; it must that system at test pressures greater than be fastened to the appliance prior ½...
- Page 20 Installation Installing the front skirting Positioning and levelling The front skirting must always be positioned Heavy appliance and secured correctly on the appliance. Risk of damage to the appliance 1. Use a screwdriver to remove the front screws underneath the storage •...
- Page 21 Installation 2. Position the front skirting at the bottom of Installing the side skirting the appliance and line up the holes of After installing the front skirting, the side the front skirting with the holes on the skirting can be fastened correctly to the base of the appliance.
-
Page 22: For The Installer
Installation 4. Line up the hole on the side skirting with 1.7 For the installer the rear hole on the base of the • The plug must remain accessible after the appliance. installation is complete. Do not kink or trap the mains connection cable. •...
