RRTT2-01
2007-2020 TOYOTA TUNDRA

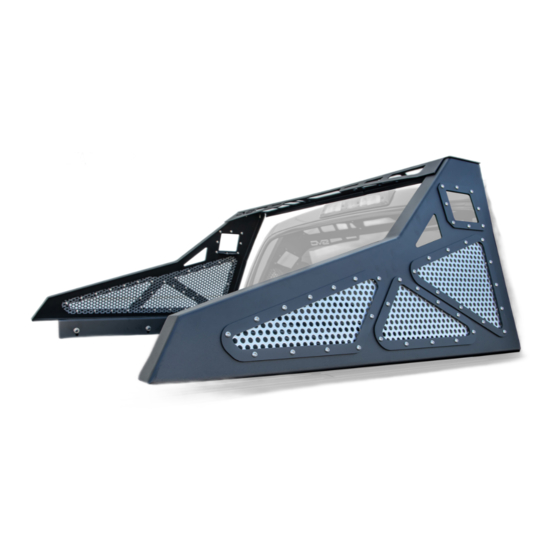

CHASE RACK
TOOLS
REQUIRED
– H5 head socket
– 13mm socket or wrench
– Appropriate ratchet for sockets
– Safety Glasses
WARNINGS/CAUTIONS BEFORE STARTING INSTALLATION
Before you install this kit
instructions, warnings, cautions, and notes contained in
this installation instruction guide. Consult your vehicle
owner's manual for proper disconnection of electrical and
lifting of vehicle if required for installation of this product.
This install may require some technical skills and knowledge
of basic mechanical work. If you do not feel that you are
capable of performing this install please take this product
to a trained professional.
After reading this guide please contact us with any questions
or concerns before installing product.
Customer Service: 855-680-9595
DV8 Offroad is not responsible for any bodily injury or harm
to you or your vehicle as a result of an improper install.
6400 SYCAMORE CANYON BLVD.
RIVERSIDE, CALIFORNIA 92507
855-680-9595
WWW.DV8OFFROAD.COM
SKILL
- Novice
– 2 persons, you and a buddy
Little skill level required, you
and a buddy can easily install it
with little effort
— Read and understand all
PRODUCT
INSTALLATION
LEVEL
Proper installation of this kit requires knowledge of the factory
recommended procedures for removal and installation of original
equipment components. We recommend that the factory shop
manual and any special tools needed to service your vehicle be on
hand during the installation. Installation of this kit without proper
knowledge of the factory recommended procedures may affect the
performance of these components and the safety of the vehicle.
• Always wear eye protection when operating power tools. •
Inspect all contents of this package to make sure product is not damaged
and all installation hardware has been included. If parts are missing
from kit, please be prepared to provide the following information:
1.
Name of purchase location
2. Bar Code on side of box
3. Date above bar code
4. Date inside box cover
MANUAL
TIME
REQUIRED
– 30-45 min.
Time to install this rack
should only take 30 to
45 minutes with help.
855-680-9595
NEED HELP?
