Code Alarm PROFESSIONAL CA 5150 Installation Manual page 6

4 RED/WHITE
Locate the vehicle's trunk release wire at the trunk release switch.
Verification: This wire will register either positive voltage or ground when
the trunk release is activated.
This is a low current output, 500mA.
5 BLUE/BLACK
The Active Output/Ignition 3 output wire provides a ground output when the remote
start function is activated and remains until 4 seconds after the remote start is
shutdown. The Ignition 3 output wire can be used for several functions listed
below. If this wire will be used for multiple application's a 1 amp diode is required
in-line with the stripe facing the control module.
Factory transponder (coded key) bypass.

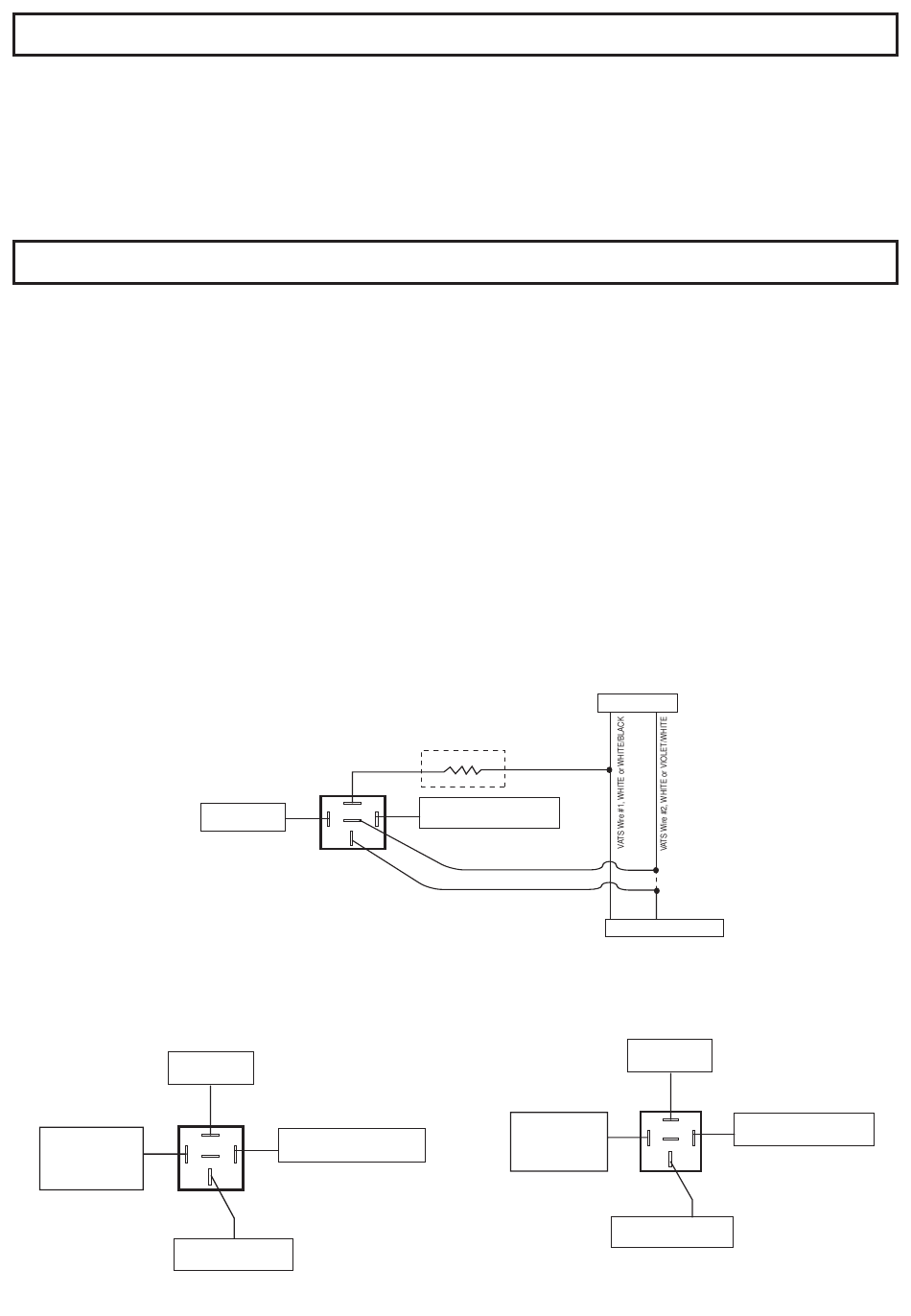

General Motors VATS bypass, see the following diagram. Use an SPDT relay (not
supplied).
Ignition 3 output, see the following diagram. Use an SPDT relay (not supplied).
Accessory 2/3 output, see the following diagram. Use an SPDT relay (not
supplied).
Ignition 3
Jump To PINK
Ignition Output
86
Wire From
Control Module
6
87
Fused +12 Volt
87a
Battery Source
86
30
Fused +12 Volt
Battery Source
87
BLUE/BLACK Active Output
87a
Wire
85
30
To Vehicle's 2nd or
3rd Ignition Wire
TRUNK RELEASE OUTPUT ( - )
IGNITION 3 / ACTIVE OUTPUT ( - )
GM VATS
Matching Value
Resistor
BLUE/BLACK ActiveOutput
Wire
85
Jump To ORANGE
Accessory Output
Control Module
2010 Audiovox Electronics Corporation. All rights reserved.
Ignition Switch
X CUT
VATS Control Module
Accessory 2/
3
Fused +12 Volt
Battery Source
87
87a
85
86
Wire From
30
To Vehicle's 2nd or 3rd
Accessory Wire
BLUE/BLACK Active Output
Wire
