en

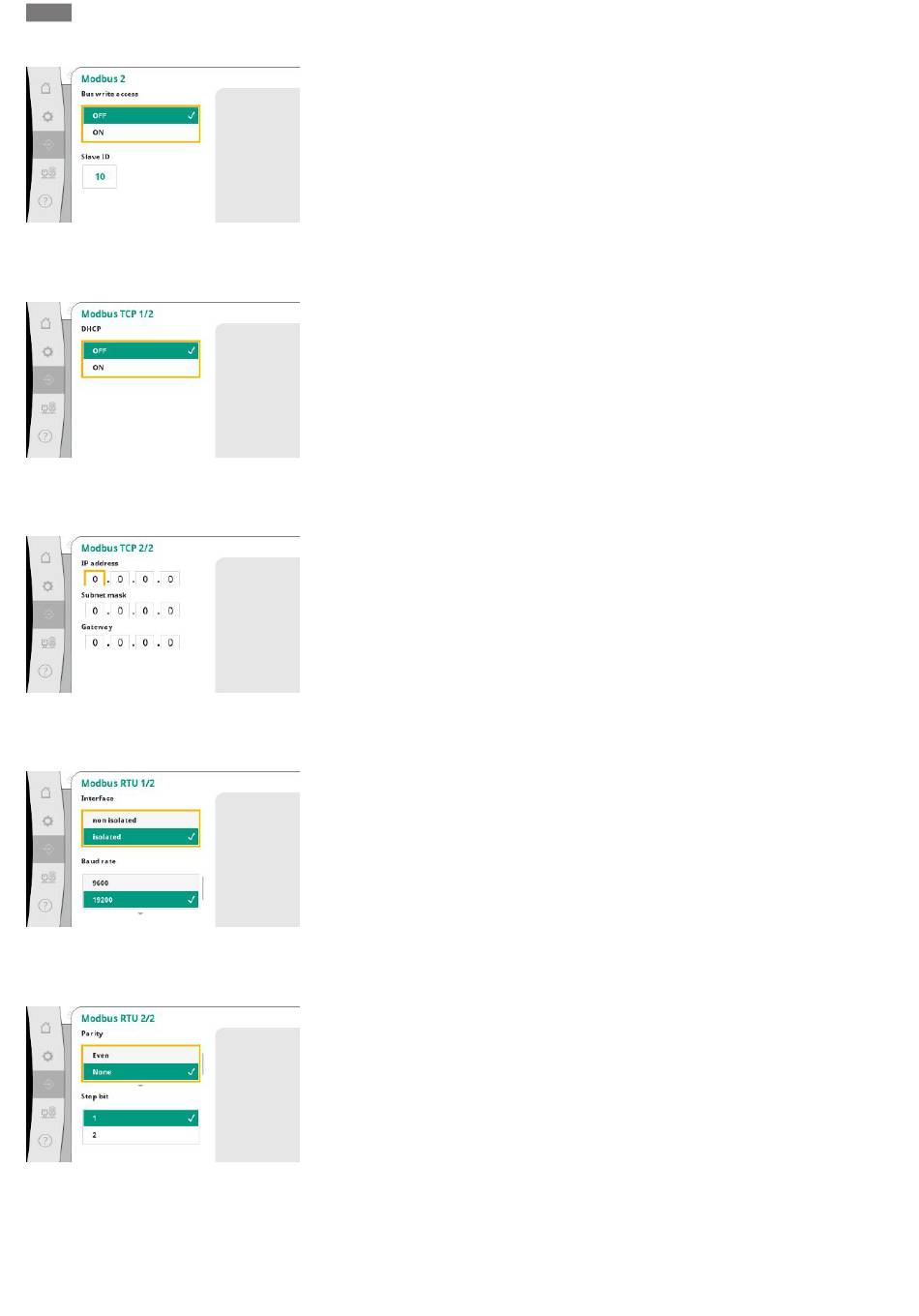

Fig. 74: Communication→BMS→Modbus 2
menu item
Fig. 75: Communication→BMS→Mod-
bus TCP 1 menu item
Fig. 76: Communication→BMS→Modbus TCP
2 menu item
Fig. 77: Communication→BMS→Modbus RTU
1 menu item
Fig. 78: Communication→BMS→Modbus RTU
2 menu item
40
For Modbus, the "Slave ID" must be set.
Bus write access can be disabled.
If bus write access is disabled, the data points can only be read.
If DHCP is activated, the network settings are requested from a DHCP server in the network
and not entered manually.
The IP address can only be configured via the WCP web pages.
"Interface": "Isolated", is intended for the Modbus RTU or BACnet MS/TP option.
"Not isolated" is the setting for Wilo internal use.
For Modbus RTU, the "baud rate" and the interfaces of the WCP can be selected.
The Modbus RTU option is required for the isolated interface.
The "parity" ("even", "odd", "none") and the number of stop bits (1 or 2) can be set.
