Connecting cable shields
20
EMC threaded cable glands
1
2
3

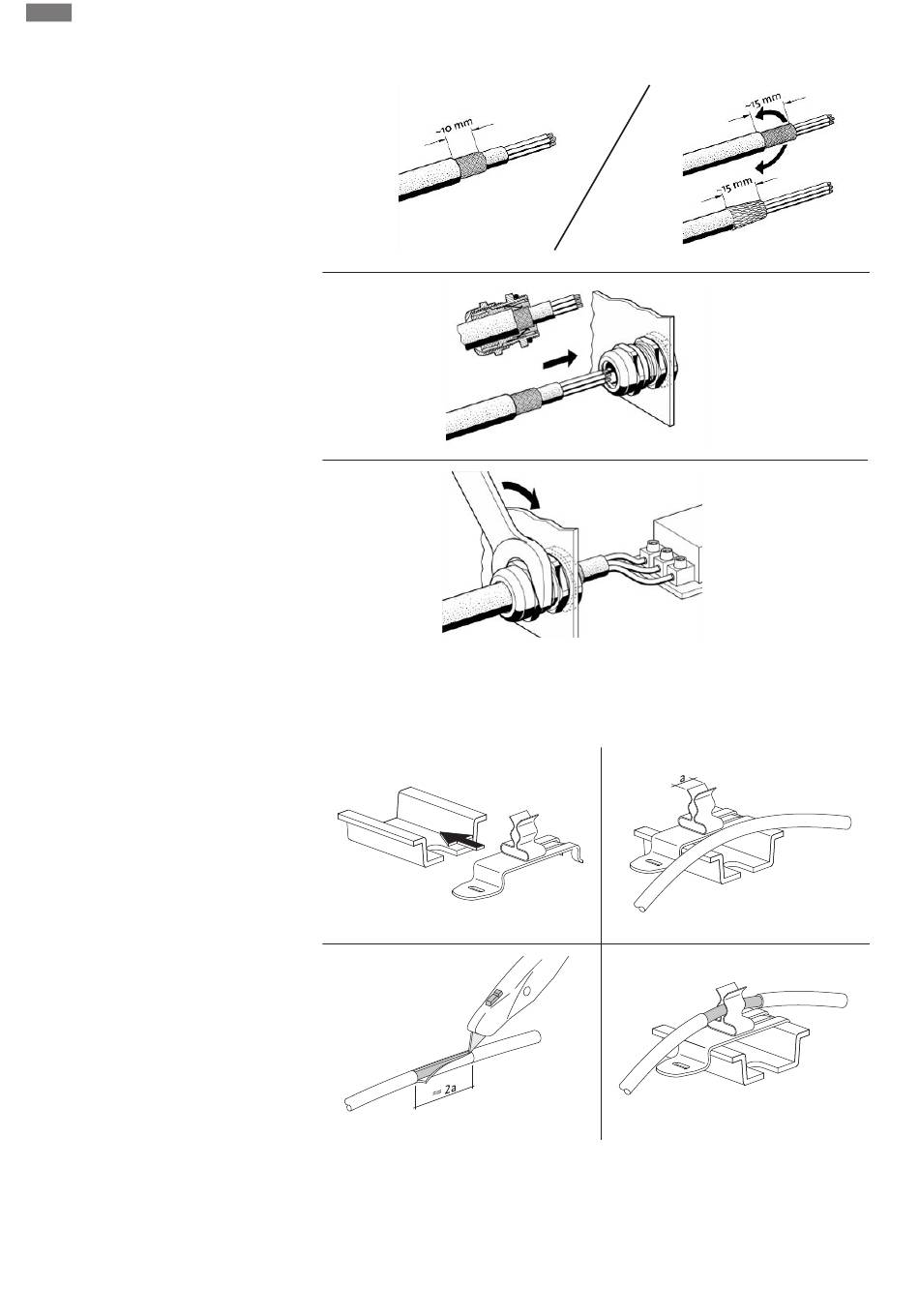

Fig. 11: Connecting cable shields to the EMC threaded cable connections
1.
Connect the cable shield with the EMC threaded cable gland according to the figure.
Connection with shield clamps
1
3
Fig. 12: Connecting cable shields to the earth rail
1.
Connect the cable shields with the shield clamp according to the figure.
2.
Adjust the cutting length to the width of the clamp used.
Installation and operating instructions • Wilo-Control SC2.0-Booster • Ed.01/2023-09
