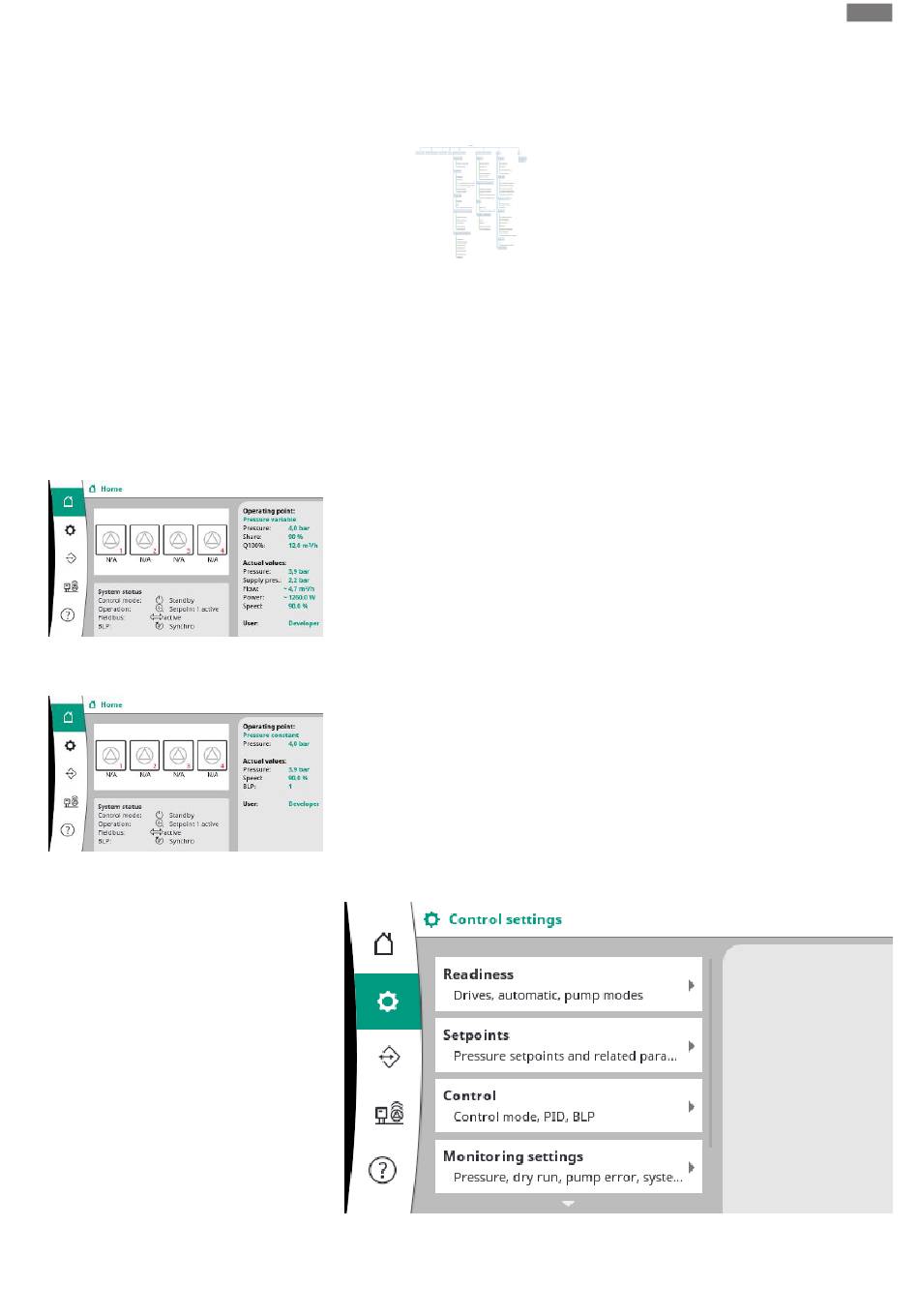

Fig. 15: Menu structure
Fig. 16: Main screen in p-v control mode
Fig. 17: Main screen in the p-c control mode
7.2.1 Control settings menu
Installation and operating instructions • Wilo-Control SC2.0-Booster • Ed.01/2023-09
Menu structure
The menu structure of the control system is divided into 3 levels.
Navigation in the individual menus as well as the parameter input are described in the follow-
ing example (change in low water follow-up time):
A description of the individual menu items follows in the following section. The menu struc-
ture adjusts automatically according to the settings made or options available in the control
device. Not all menus are always visible.
Home screen
• The status of the pumps is displayed in the centre area.
• On the right-hand side, the relevant setpoints and actual values for the selected control
mode are displayed.
• In the lower area, the active influences that affect the behaviour of the unit are displayed.
In the p-v control mode, the setpoint is changed depending on the determined volume flow.
In the p-c control mode, the pressure in the system is kept constant at the setpoint value,
regardless of the volume flow.
