7.2.1.1 Control settings -> Standby menu

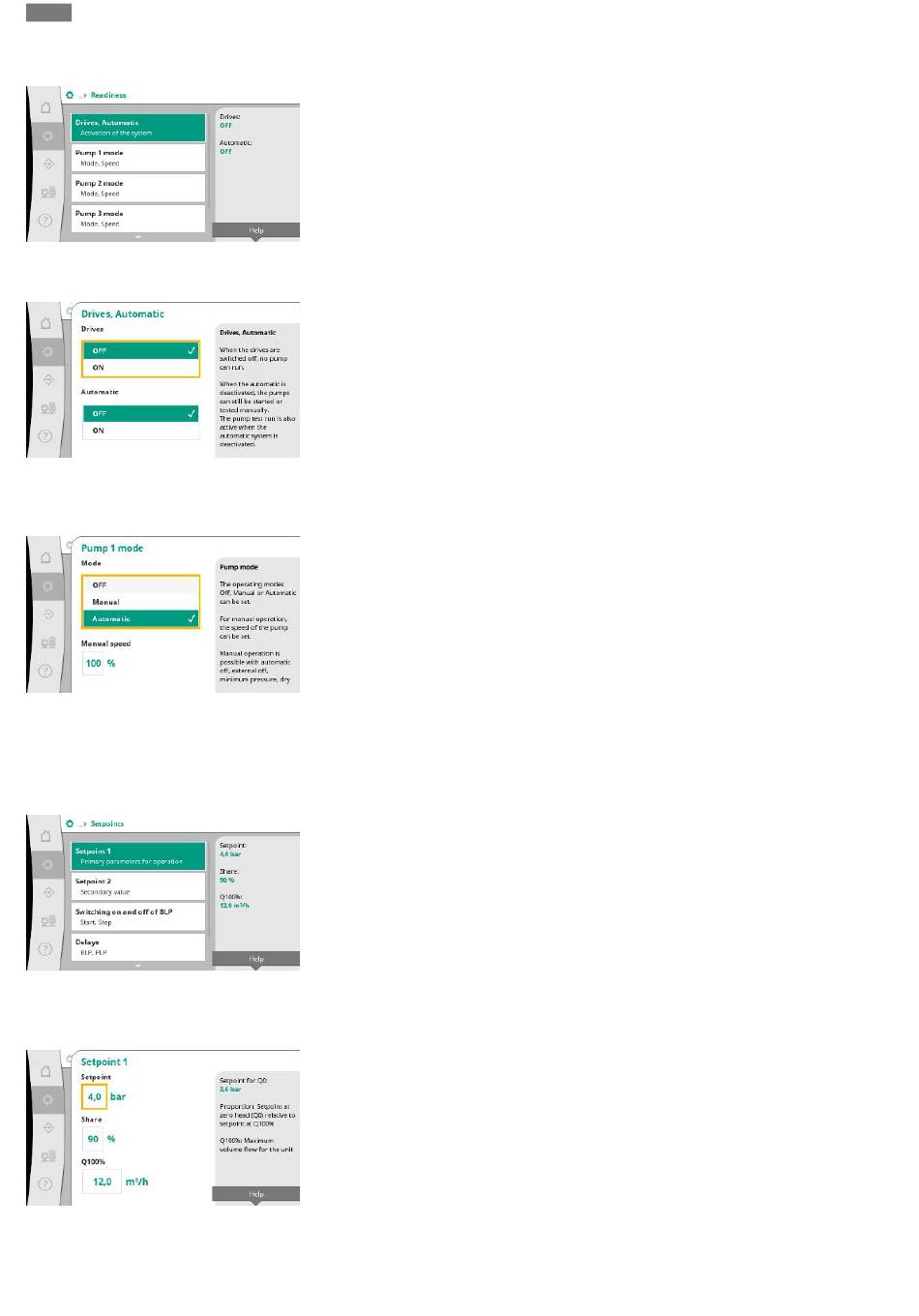

Fig. 18: Settings→Standby menu item
Fig. 19: Settings→Standby→Drives, auto-
matic menu item
Fig. 20: Control settings→Standby→Pump 1
mode menu item
7.2.1.2 Control settings -> Setpoints
menu
Fig. 21: Settings→Setpoints→Setpoint 1
menu item
Fig. 22: Settings→Setpoints→Setpoint 1
menu item
28
Settings for the drives, automatic release and the mode of the individual pump.
The "ON" state for drives releases the pumps so that they can be started automatically or
manually.
If the drives are set to "OFF", no pump test run can be carried out.
The "ON" state for automatic setting enables automatic control so that pumps that are set to
automatic can be started and stopped by the controller.
If the automatic setting is set to "OFF" , and the drives are set to "ON", the pumps can be
started manually or by the pump test run.
A separate menu item is available for each existing pump.
With "OFF", the pump is deactivated and is not included in the pump test run.
With "Manual", the pump is started at the speed set under "Manual speed".
The setpoints are the essential setting for the operation of the unit.
The available parameters depend on the selected control mode.
The current values are displayed in the area on the right-hand side.
The values can be adjusted.
With the p-v control mode, the values pressure setpoint, share at zero-flow rate and maxi-
mum flow rate can be set.
With the p-c control mode, only the pressure setpoint can be changed.
