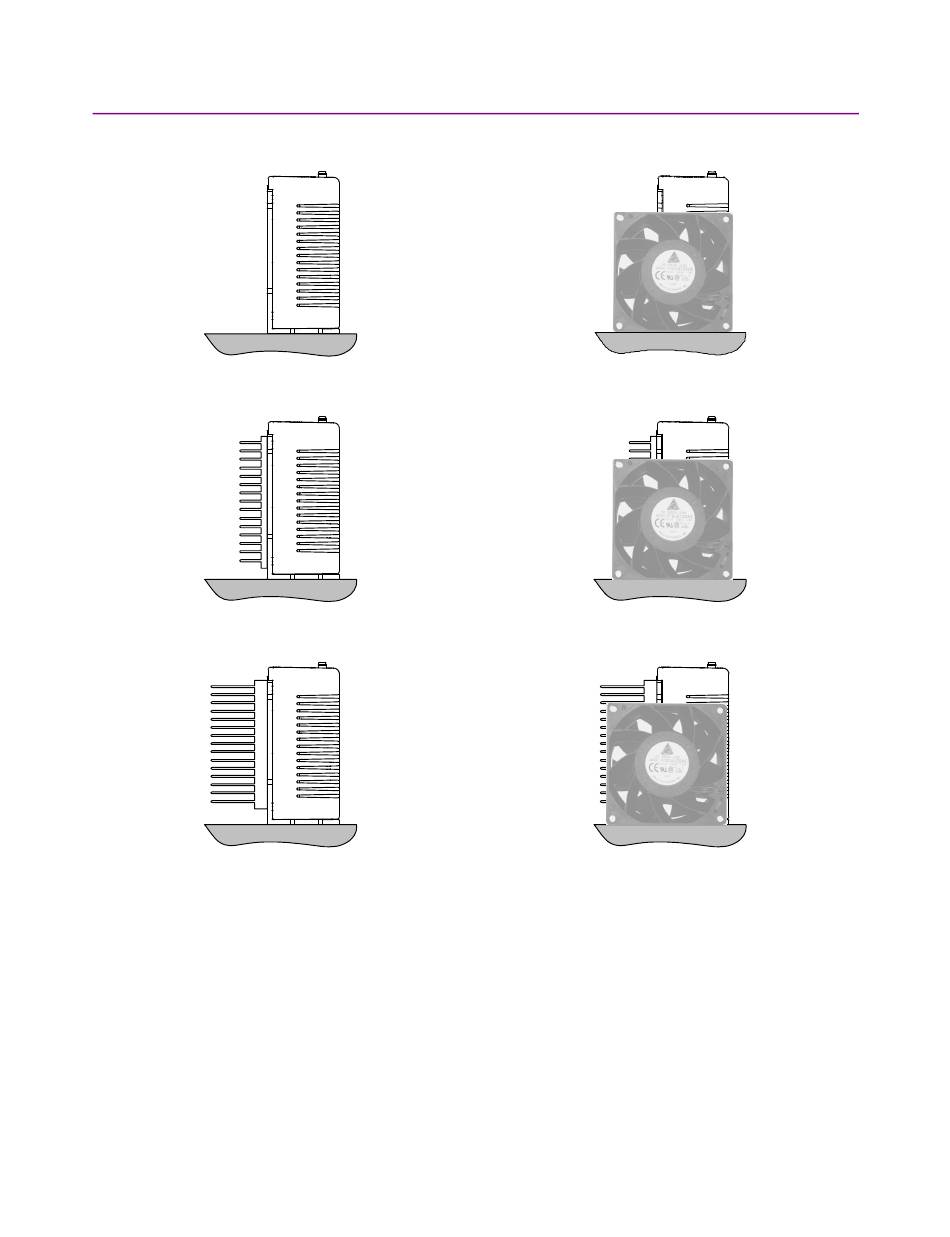

D.1.2: Heatsink and Fan Configurations

No Heatsink
No Fan
Low-Profile Heatsink
No Fan
Standard Heatsink
No Fan
* Select a 4.25-inch square fan that supplies forced air at a minimum rate of 300 linear feet per
minute
