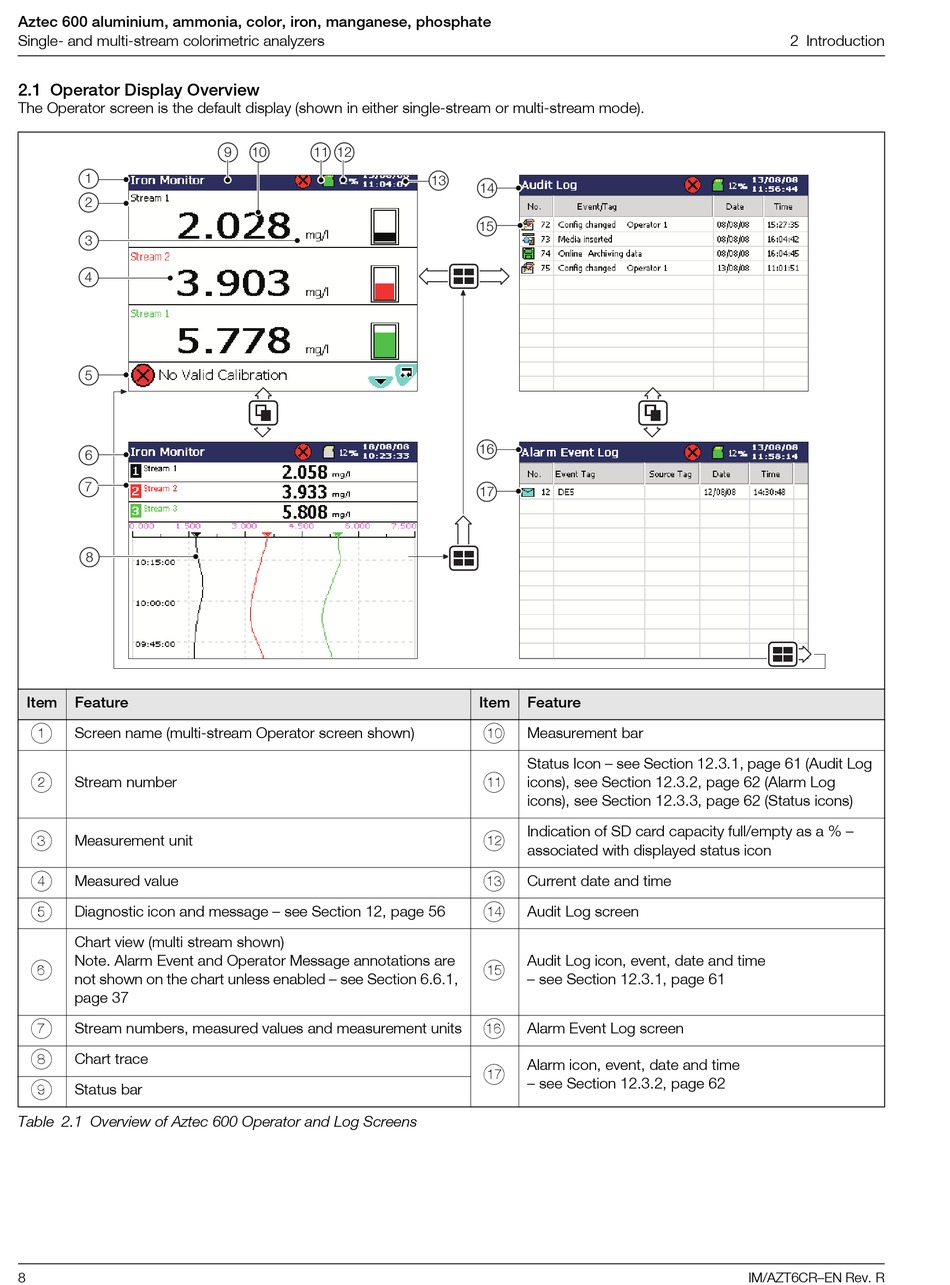

2.1 Operator Display Overview

The Operator screen is the default display (shown in either single-stream or multi-stream mode).
1
2
3
4
5
6
7
8
Item Feature
1
Screen name (multi-stream Operator screen shown)
2
Stream number
3
Measurement unit
4
Measured value
5
Diagnostic icon and message – see Section 12, page 56
Chart view (multi stream shown)
Note. Alarm Event and Operator Message annotations are
6
not shown on the chart unless enabled – see Section 6.6.1,
page 37
7 Stream numbers, measured values and measurement units
8
Chart trace
9 Status bar
Table 2.1 Overview of Aztec 600 Operator and Log Screens
8
9 10 11 12
13
14
15
16
17
Item Feature
j
Measurement bar
Status Icon – see Section 12.3.1, page 61 (Audit Log
k
icons), see Section 12.3.2, page 62 (Alarm Log
icons), see Section 12.3.3, page 62 (Status icons)
Indication of SD card capacity full/empty as a % –
l
associated with displayed status icon
m
Current date and time
n
Audit Log screen
Audit Log icon, event, date and time
o
– see Section 12.3.1, page 61
p Alarm Event Log screen
Alarm icon, event, date and time
q
– see Section 12.3.2, page 62
