1. Intended use:

Due to its design, the AWO630 enclosure can be used as an integrating part of installation systems, such as: CCTV, KD,
SSWiN, LAN network, satellite TV, etc. The enclosure is to be used for mounting (depending on configuration):
LEVEL 1:
1) rack-mount devices (RACK 19), not too deep –12U high (with 3 rack mounting brackets, 4U high, which
can be mounted on different depths or horizontally)
2) system KD controller and additional modules or other devices adjusted for mounting on a TH35 (35mm)
DIN rail
3) alarm control units and optional modules (with additional AWO630PL mounting plate)
4) transformer, series: TRP, TRZ, TOR
5) enclosed power supply units, series: PS, PSB
LEVEL 2:
1) alarm control units and optional modules
2) other devices, i.e.: switch, router, etc.

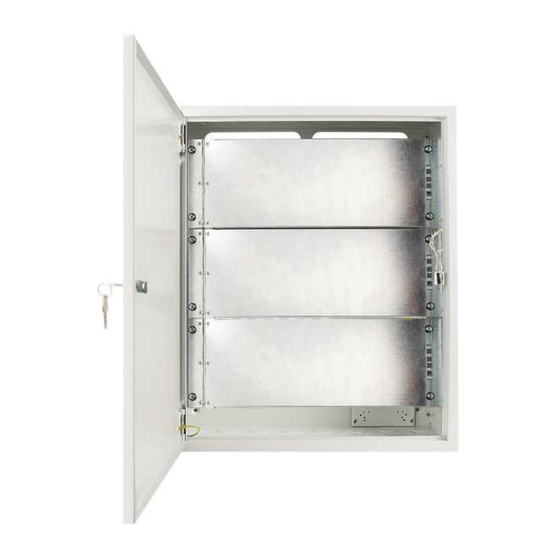

2. Product description:

The enclosure enables mounting the devices on 2 LEVELS, at the bottom and in the mounting plate.
LEVEL 1:
The enclosure, in its standard version, includes 3 DIN rails, of 480 mm, mounted to the bottom. There is also an option
to add a DIN rail (AWO630DIN), max. 5 per enclosure. Instead of a DIN rail, a mounting plate (AWO630PL) of working
dimensions: 485mm x 320mm can be fitted. The enclosure has an additional mounting plate used for installing
transformers and power supply units.
LEVEL 2:
The enclosure is quipped with a hinged mounting plate of working dimensions: 410mm x 170mm. That facilitates the
access to the devices mounted at the bottom of the enclosure (level1). 3 mounting plates (AWO630PLO) is a maximum
for one enclosure. The enclosure accommodates a 65Ah/12V battery. Anti-tampering system indicates an unauthorized
opening of the enclosure. There is also a possibility to mount an additional anti-tampering system, which prevents the
PSU from being ripped off the wall (PKAZ005). The lock assembly has a different code (MR008). The door, either right or
left-hand, can be easily dismantled.
The bottom part includes 2 rails that create a 35mm space between the enclosure and the wall for the cables of the
device accommodated by the enclosure. This disables installing the anti-tampering system, which prevents the device
from being ripped off the wall (PKAZ005).

3. Mounting:

The enclosure shall be mounted by a qualified installer with appropriate permissions and qualifications for 230V/AC
installations and low-voltage installations (required and necessary for a given country). It shall be fitted in confined
spaces, according to the environment class II, with normal air humidity (RH=90% max. without condensation) and the
temperature from -10°C to +40°C.
INTALLATION MANUAL
ENGLISH
code: AWO 630
name: Enclosure DIN3/Plate/RACK 19"
metal enclosure for: SSWiN, KD,....
Supercedes the: 1st Edition, 02 Feb 2012
IM630
2nd Edition, 02 Oct 2013

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DIN3/Plate/RACK 19 and is the answer not in the manual?

Questions and answers

Summary of Contents for Pulsar DIN3/Plate/RACK 19

  • Page 1 INTALLATION MANUAL ENGLISH code: AWO 630 name: Enclosure DIN3/Plate/RACK 19" metal enclosure for: SSWiN, KD,…. IM630 2nd Edition, 02 Oct 2013 Supercedes the: 1st Edition, 02 Feb 2012 1. Intended use: Due to its design, the AWO630 enclosure can be used as an integrating part of installation systems, such as: CCTV, KD, SSWiN, LAN network, satellite TV, etc.
  • Page 2 4. Specifications SPECIFICATIONS Fitting battery 65Ah/12V 1x – enclosure opening Anti-tamper protection TAMPER – output ampacity (max) 500mA@50Vdc Enclosure: IP IP 20 Operating temperature -10ºC÷40ºC Relative humidity RH – max. 90 [%] Internal dimensions 450 x 645 x 177 (WxHxD) [-/+2] [mm] AWO630PLO- tint metal sheet for DIN3 410mm x 170mm (max.
  • Page 3 C - Enclosure of a transformer S – Supply power U – Mains supply I - Current consumption at ~230V nominal load U1 or U2 or U3 – Secondary voltage I1 or I2 or I3 – Nominal output current F – F fuse in the primary circuit of the transformer t - Thermal fuse 130 C, not resettable Specifications of power supply units that can be mounted in the enclosure:...
  • Page 4 WARRANTY : 24 months from the purchase date, 36 months from the production date. A valid proof of purchase is required. PRODUCENT / PRODUCER Pulsar K.Bogusz Sp.j. Siedlec 150, 32-744 Łapczyca, Poland Tel. (00 48) 14-610-19-40, Fax. (00 48) 14-610-19-50 e-mail: biuro@pulsar.pl,...
