Metal enclosure

Advertisement

Quick Links

1. Intended use:

Due to its design, the AWO610 enclosure can be used as an integrating part of installation systems, such as: CCTV, KD,
SSWiN, etc. The enclosure is to be used for mounting (depending on configuration):
system KD controller and additional modules or other devices adjusted for mounting on a TH/TS35 (35mm) DIN
rail
transformer, series: TRP, TRZ, TOR
enclosed power supply units, series: PS, PSB

2. Product description:

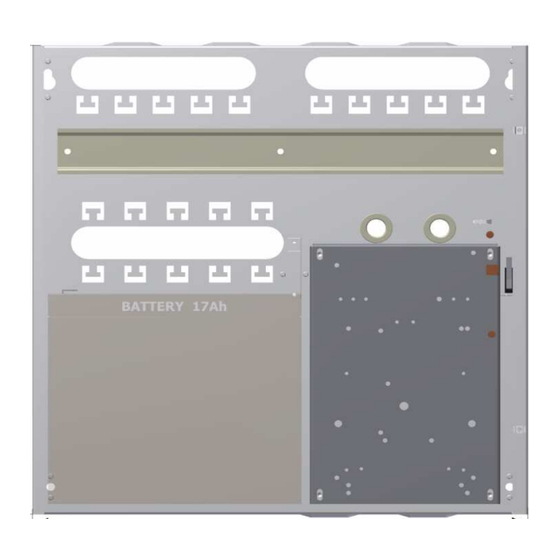

The enclosure includes a 315mm-long DIN rail mounted to the bottom. It is equipped with a mounting plate, for
transformers or power supply units. The enclosure accommodates a 17Ah/12V battery. Anti-tampering system indicates
an unauthorized opening of the enclosure. There is also a possibility to mount an additional anti-tampering system, which
would prevent the device from being ripped off the wall (PKAZ005). In a basic version, the enclosure is bolted in the
faceplate with 2 screws. The faceplate is embossed so that a lock assembly can be fitted. The lock can have the same
code: MR027, or a different one: MR008.
There is an 8mm space between the enclosure and the wall for the cables of the device accommodated by the enclosure.

3. Mounting:

The enclosure shall be mounted by a qualified installer with appropriate permissions and qualifications for
230V/AC installations and low-voltage installations (required and necessary for a given country). It shall be fitted in
confined spaces, according to the environment class II, with normal air humidity (RH=90% max. without condensation)
and the temperature from -10°C to +40°C.

4. Specifications:

SPECIFICATIONS
Anti-tamper protection
TAMPER – output ampacity (max)
Operating temperature
Relative humidity RH – max.
Internal dimensions
Additional accessories
Fitting battery
Enclosure: IP
(WxHxD)
Materials
Use
Net weight
Gross weight
INTALLATION MANUAL
ENGLISH
code: AWO 610
name: Enclosure DIN1
metal enclosure for: SSWiN, KD,....
Supercedes the: ------------------------ edition
Lock assembly, same code: MR027
Lock assembly, different code: MR008
TAMPER, against ripping off the wall (PKAZ005)
Sheet metal DC01, thickness: 1,0mm
Colour: RAL 7035 grey, texture finish
1st Edition, 02 Feb 2012
17Ah/12V
1x – enclosure opening
500mA@50Vdc
IP 20
-10ºC÷40ºC
90 [%]
345 x 355 x 80
[-/+2] [mm]
Insulating gland M20x1,5
Rust protection
Inside/
Surface-mounted
~3.80 [kg]
~4.10 [kg]
IM610

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DIN1 and is the answer not in the manual?

Questions and answers

Summary of Contents for Pulsar DIN1

  • Page 1 INTALLATION MANUAL ENGLISH code: AWO 610 name: Enclosure DIN1 metal enclosure for: SSWiN, KD,…. IM610 1st Edition, 02 Feb 2012 Supercedes the: ------------------------ edition 1. Intended use: Due to its design, the AWO610 enclosure can be used as an integrating part of installation systems, such as: CCTV, KD, SSWiN, etc.
  • Page 2 Specifications of transformers that can be mounted in the enclosure: CODE NAME U1 or U2 or U3 I1 or I2 or I3 PC/ABS UL94 V-0 AWT053 TRP 20/12/14 20VA 230V/AC 0,12A 12V or 14V 1,6A or 1,4A T 200mA/250V IP20 PC/ABS AWT050 TRP 20/16/18...
  • Page 3 WARRANTY : 24 months from the purchase date, 36 months from the production date. A valid proof of purchase is required. PRODUCER Pulsar K.Bogusz Sp.j. Siedlec 150, 32-744 Łapczyca, Poland Tel. (00 48) 14-610-19-40, Fax. (00 48) 14-610-19-50 e-mail: biuro@pulsar.pl, sales@pulsar.pl...
