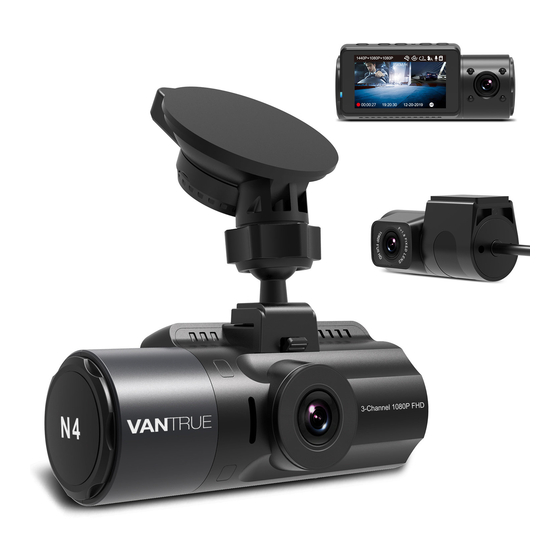

OnDash N4
User Manual
3-Channel Dash Cam
100mmX130mm

Advertisement

loading
Need help?

Need help?

Do you have a question about the OnDash N4 and is the answer not in the manual?

Questions and answers

Summary of Contents for Vantrue OnDash N4

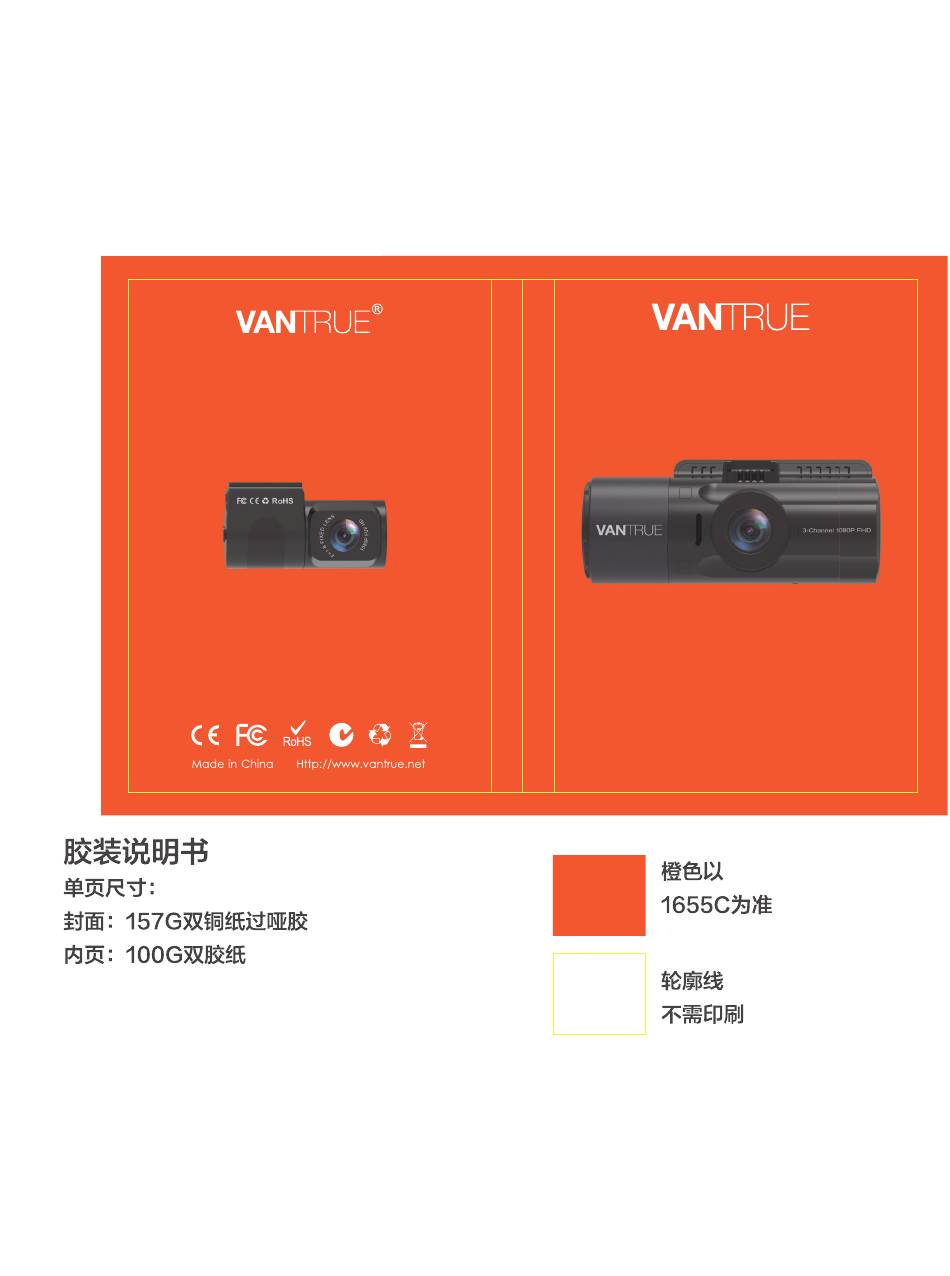

  • Page 1 OnDash N4 User Manual 3-Channel Dash Cam 100mmX130mm...
  • Page 2 Hey, find us here: www.vantrue.net/contact facebook.com/vantrue.live Always a surprise in Vantrue - 1 -...
  • Page 3: Table Of Contents

    VERZEICHNIS Whatʼs in the box? Was ist in der Box? 付属品を確認する Camera Overview Die Übersicht über Kamera 各部の名称とはたらき Getting Started Vorbereitung vor dem Einschalten 入門 Basic Operation Grundlegende Operation 基本的な使い方 Specifications Spezifikationen 製品仕様 Warranty & Support Garantie und Unterstützung 保証とサポート - 2 -...
  • Page 4: Whatʼs In The Box

    1.   Whatʼs in the box? A. Car Charger with Built-in  B. VANTRUE ®  N4 Dash Cam Type-C Cable (11.4 ft) D. Type-C USB Data Cable (3ft) C. Suction Cup Mount F. Quick Start Guide E. User Manual G. Warranty Card H. Rear Camera(0.98 ft) I. Rear Camera Cable (20 ft) J. Adhesive Sticker - 3 -...
  • Page 5: Camera Overview

    Camera Overview     VTN40AXXXX NO.     Name                      Description Button Power ON/OFF; IR LED Light Switch. Button Move selector down; Switch the Front,  cabin and rear camera  window display; Fast forward when playing back videos. Button Move selector up; Microphone on/off;  Slow forward when playing back videos. Button Confirms the action; Stop/Start the video  recording. - 4 -...
  • Page 6 Button Enter/exit setup menu; Long press to  enter Parking Mode; Manually locks the currently recording  video clip following emergency or to  preserve important videos. 6 Type-C USB /  Type-C USB port for charging or transfer- ring data; Video stream port for streaming  Rear Cam Port rear cameraʼs recording. 7 Micro HD Out For HDMI cable connecting to HDTV. Port MicroSD Card Provides expandable storage (up to  256GB in FAT32, U3 or higher). Slot Reset Button Press to force reset the device. 10 IR LED Light  4 IR LED lights enhances the night vision in  car.  11 Cabin Camera Camera for in-car video recording.  12 Indicator light  Blue light blinking when recording;  Light on when charging. 13 Microphone  Records clear audio with the video  footage. 14 Mount Connector Connects to the Suction Cup Mount. 15 Front Camera ...
  • Page 7: Getting Started

    Screen overview Loop Recording Time Night mode off G-Sensor OFF G-Sensor ON Night mode auto on/off Night mode on GPS Signal Connecting GPS Signal Locked MIC is ON MIC is OFF  Video Resolution 1440P+1080P+1080P Memory card inserted Recorded Driving NO Memory card inserted Speed (KMH or MPH) Recording Time  (current clip) Emergency File Lock Time lapse On Recording Collision Detection ON Current Date (MM/DD/YY)  Collision Detection + Motion  and Time (24H) Detection ON 3.   Getting Started 3.1  Installing a Memory Card (Recommend VANTRUE microSD           Card)  Please use a genuine Micro SD memory card from 32GB to  256GB with a speed rating of U3 or higher. We recommend  use Vantrue Micro SD Card (not include). Please insert the SD  card when dash cam is off. Carefully insert the memory card  into the cameraʼs card slot until it clicks. To remove the card,  power off the camera first, then push the card into the slot  until it clicks again. - 6 -...
  • Page 8 If you are using SD card from other brand, before using the card,  press          button to stop the recording.  • Press          button to enter setup; if the camera is recording  video, press          button to stop the recording; if it says ʻSD card  error, please format SD cardʼ here, please press the          button  and press          button to access into the menu. Press the          button to highlight the System Setup option,  • press the          button to confirm.  • Press the          button to highlight the Format option, press the          button to confirm by the          button to select format. REMINDER: The microSD card should be formatted once a month to  maximize the lifetime of the memory card. Please do not take the card out when the camera is recording in  case that the important video files missing. Please don't use Sandisk or Transcend SD card on this dash cam. - 7 -...
  • Page 9 3.2  Installing the camera onto your windshield Attach the Suction Mount to the cameraʼs Mount Connector,  pushing it in until it clicks.  Thoroughly clean the windshield using water or alcohol, and  wipe clean with a dry cloth. Wipe the Suction Mounting Pad clean on the Suction Mount. Securely attach the Suction Mount to the windshield, and  rotate the locking clamp on the mount 90° upward until it  clicks.  - 8 -...
  • Page 10 Carefully route the power cable around the windscreen and  tuck it under the trim. Connect the External Camera to the Rear Cam Port on the  device through the rear camera cable, carefully route the cable  and tuck it under the trim.  With the Type-C USB Cable, connect the supplied Car Charger  to the Front Camera Mount Base.  - 9 -...
  • Page 11: Basic Operation

    8.  Insert the Car Charger into your vehicleʼs cigarette lighter  port. vehicleʼs cigarette lighter port 9. Start the car. 10. The camera will auto power on and start recording. 4.   Basic Operation 4.1  Power ON/OFF Once the car starts on, the camera will automatically turn on  and start recording.  A. Manually Long press the          button to power it OFF. - 10 -...
  • Page 12 B. Automatically The camera will power off if the charger cable is disconnected  or if the vehicle is turned off.  Note:  1.  The device has two USB ports available for power supply‒  on the camera or via the suction cup mount.  2.  When charging via computer, please use the USB port  located on the mount. If you use the USB port on the  camera, “USB Connecting ” and “Power On” will be  displayed on the camera screen, please select “Power on" to   charge the dash cam.  4.2  Menu Settings After powering ON the camera, press the          button to enter  the setup process. (If the camera is recording video, press the          button to  stop recording before pressing the          button.) - 11 -...
  • Page 13 A. Record Setup Press the          button to enter the settings, and use the          or           buttons to navigate the different options. • Resolution: Press the          or          button to toggle the  recording mode and resolution.  Front+Cabin+Rear Mode: 1440P+1080P+1080P 30FPS;  1080P+1080P+1080P 30FPS; 1080P+1080P+720P 30FPS;  720P+720P+720P 30FPS; Front+Cabin Mode: 1440P+1080P 30FPS; 1080P+1080P 30FPS;  1080P+720P 30FPS; 720P+1080P 30FPS; 720P+720P 30FPS; Front+Rear Mode: 1440P+1080P 30FPS; 1080P+1080P 30FPS;  1080P+720P 30FPS; 720P+1080P 30FPS; 720P+720P 30FPS; Single Front Cam Mode: 2592x1520P 30FPS; 2560x1440P  30FPS; 1920x1080P 30FPS; 1280x720P 30FPS. Loop Recording: Press          button to change the duration:  • 1Min, 3Min, 5Min, and OFF.  • IR lEDs: Press the          and          or          button to select the  section: Auto, On and Off. • G-Sensor Set: Pressing          button gives the following  sensitivity options: Low, Medium, High, Off. • Audio Recording: Press          button and           button to toggle  it OFF/ON. • Parking Mode: Press          and           button to change the  options: Collision Detection, Collision + Motion Detection, OFF. Exposure: Press          and          or          button to select between  • Front, Cabin and Rear exposure.  Front:  +2.0, +5/3,+4/3,+1.0,+2/3,+1/3,+0.0,-1/3,-2/3,-1.0,-4/3,-5/3,-2.0  Cabin:  +2.0,+5/3,+4/3,+1.0,+2/3,+1/3,+0.0,-1/3,-2/3,-1.0,-4/3,-5/3,-2.0 Rear:  - 12 -...
  • Page 14 +2.0,+5/3,+4/3,+1.0,+2/3,+1/3,+0.0,-1/3,-2/3,-1.0,-4/3,-5/3,-2.0 • WDR: Press          and          button to toggle it OFF/ON. • Number Plate: Press          or          and          to set your car license  number.  • Stamp: Press          to toggle it OFF/ON. Stamp shows the  date/time, logo, car number, Speed and GPS Location informa- tion. • Rotate Display: Press          and          or          button to select the  options: Front+Cabin, Rear. • Time Lapse: Press          and          button to toggle it OFF/ON.   B. System Setup • Language: Press          and          or          button to select  between English, Simplified Chinese, Japanese, Deutsch, Italian,  Spanish, French and Russian. • Format memory Card: Press          , navigate button and select  format to format the micro SD card. • Time & Date: Press          or          and          button to set the  current date and time. Press the          button to exit. • Auto LCD Off: If the setup is 3 min, the dash cam screen would  auto turn off after 3 min it start recording. If the setup is off, the  screen will not turn off. Press the          button to select the  duration in minutes: 30sec, 1Min, 3Min or OFF to disable it. • Device Sound: Press the          or          button to adjust the  device sound. • Frequency: Press          button to toggle between 50Hz/60Hz. • System Info: Press          button to check the current firmware  version and Website. (System Info) • Default Setting: Press          and          Button to select          to ...
  • Page 15 • Speed Unit: Press          or          and          button to select  either KM/H or MP/H. Press the          button to exit and complete the setup. C. Files  Review and delete videos stored in the file folders. • Event: Critical event videos detected by G-Sensor activity or  manually locked by user. • Normal: Standard videos recorded. • All: All the standard videos and critical event videos recorded.  Event Normal 4.3  Set Date/Time  Open the MENU interface, navigate to “System Setup”  >  “ Time & Date”, and press the          button to set the date/time.  Navigate          or          to select date and time values. Press           button to confirm and proceed. To finish setup, just press the                  1        button to exit. Note: Date default format is MM/DD/YY with the time in 24  hour format. 12 / 20 / 2019 12:13:10 MM / DD / YY - 14 -...
  • Page 16 4.4  Switch Recording Mode/Resolution By default (Front+ Cabin+ Rear RECORDING mode),  1440P+1080P+1080P resolution will show on the screen, the 3  cameras will simultaneously capture road front, inside cabin,  and rear at 1440P+1080P+1080P (30fps). 1440P+1080P+1080P 12-20-2019 It can be switched to Front+Cabin , Front+Rear or Front mode  with following steps:  • Go to “Record Setup”>“Resolution”, Navigate          or          to  select Recording Mode. Press          button to confirm and  proceed.  Front+Cabin+Rear Mode: 1440P+1080P+1080P 30FPS;  1080P+1080P+1080P 30FPS; 1080P+1080P+720P 30FPS;  720P+720P+720P 30FPS;  Front+Cabin Mode: 1440P+1080P 30FPS; 1080P+1080P  30FPS; 1080P+720P 30FPS; 720P+1080P 30FPS; 720P+720P  30FPS; Front+Rear Mode: 1440P+1080P 30FPS; 1080P+1080P 30FPS;  1080P+720P 30FPS; 720P+1080P 30FPS; 720P+720P 30FPS; Front Mode: 2592x1520P 30FPS; 2560x1440P 30FPS;  1920x1080P 30FPS; 1280x720P 30FPS To finish setup, just press the          button to exit.  - 15 -...
  • Page 17 Front+Cabin+Rear 1440P+1080P+1080P 30FPS Front+Cabin 1080P+1080P+1080P 30FPS Front+Rear 1080P+1080P+720P 30FPS Front 720P+720P+720P 30FPS Front+Cabin+Rear 1440P+1080P 30FPS Front+Cabin 1080P+1080P 30FPS Front+Rear 1080P+720P 30FPS Front 720P+1080P 30FPS Front+Cabin+Rear 1440P+1080P 30FPS Front+Cabin 1080P+1080P 30FPS Front+Rear 1080P+720P 30FPS Front 720P+1080P 30FPS Front+Cabin+Rear 2592x1520P 30FPS Front+Cabin 2560x1440P 30FPS Front+Rear 1920x1080P 30FPS...
  • Page 18 1440P+1080P+1080P 1440P+1080P+1080P Rear Camera Bigger Inside Camera Bigger 1440P+1080P+1080P Front Camera Bigger 4.6  Loop Recording With a memory card inserted, the camera will (by default)  immediately start loop recording video when connected to a  power source and powered ON. If the device is not connected  to a power source, it will not immediately start on and record. While recording, the Record indicator will blink and a red dot  will flash on the lower corner left of the screen. You can stop/ start the recording at any time by pressing the          button. 1440P+1080P+1080P 12-20-2019 - 17 -...
  • Page 19 By default, the Loop Recording Time is 3 minutes. Please go to  “Record Setup”  >  “Loop Recording” to change it to 1 min, 3  mins, or 5 mins for your need.  The loop recording video file name format is “Year̲Date̲- Time̲A.MP4”. For example: “2019̲11̲8̲060101̲A.MP4”. The  suffix A indicates front cam recorded files, while the suffix B  refers to cabin cam recorded files and the suffix C indicates the  External cam recorded files. Standard files are stored in the “ Video/Normal” folder. When the Micro SD card is full, the  camera will write over older files.  When Loop Recording is turned off, the camera will record  video in 20 minute clips, but will not overwrite old videos  when the storage card is full. 4.7  IR LED Light By default, the IR LED light is auto on. Short Press          button  to toggle the night vision mode ON, Auto ON/OFF, OFF. VTN40AXXXX IR Light Sensor 1440P+1080P+1080P Night mode off Night mode auto on/off Night mode on 12-20-2019 Please note: If IR lights on, the video footage of the cabin will  turn into black and white. - 18 -...
  • Page 20 4.8  Event Recording Critical event detection is triggered by the G-Sensor (Gravity  Sensor) and will auto-detect vehicle impacts and collisions.  This will cause the camera to protect the current video clip  from being overwritten by locking it and saving the footage in  the “Video/Event” folder.  The user can also manually lock the current video recording  session by pressing the          Button. A key icon will appear at  the center of the screen.  The G-Sensor sensitivity is adjustable with 3 settings: Low,  Medium, and High ‒ it is set to Medium by default. The  G-Sensor can also be deactivated in “Record Setup” > “ G-Sensor”. 1440P+1080P+1080P 12-20-2019 Event  videos  are  stored  in  the  “Video/Event”  folder,  and  cannot be automatically overwritten.  Note:  The  camera  will  auto  overwrite  old  Event  videos  once  the  Event  folder  has  accumulated  25%  of  the  card  capacity.  Please regularly transfer important videos to your PC or anoth- er storage location (e.g. external hard drive). To maintain good ...
  • Page 21 4.9    Voice Recording By default, the voice recording is ON. It can be turned OFF  using either of the following methods: • Go to “Record Setup” > “Audio Recording”, press           button and select OFF; • While recording video, press the          button to toggle  voice recording OFF/ON. When the voice recording has been turned OFF, the MIC icon  at the top of the screen will turn white with a red line across it. 1440P+1080P+1080P 12-20-2019 4.10 Parking Mode (Constant Power Supply Needed)  Parking  Mode  operates  as  a  sentry  function  under  different  situations. To activate Parking Mode, go to “Record Setup” > “ Parking Mode” , press          and select the following options:  Collision Detection, Collision Detection + Motion Detection,  OFF.  - 20 -...
  • Page 22 4.10.1 Collision Detection Triggered When the Collision Detection has been turned on, and no  movement is detected after 5 minutes of recording, then  Collision Detection is activated with a Collision Detection  icon at the bottom right corner of the screen, and the  camera automatically to turn off. Full frame recording will  be triggered by the Collision Detection sensor. Once front  camera detects vehicle impacts or collision, it will auto turn  on and start auto recording; it will stop recording and auto  off again after 5 minutes of inactivity.  1440P+1080P+1080P 12-20-2019 4.10.2 Collision Detection + Motion Detection Triggered When the Collision Detection + Motion Detection has been  turned on, this is represented by an Collision Detection +  Motion Detection icon at the bottom right corner of the screen. 1440P+1080P+1080P 12-20-2019 - 21 -...
  • Page 23 If no movement is detected after 5 minutes of recording, there  will  be  an  orange  P  icon  appears  in  the  center  of  the  screen  which  means  Parking  Mode  is  activated.  Once  the  camera  detects movement in front, the front camera will start auto-re- cording; it will stop recording after 10 seconds of inactivity. 1440P+1080P+1080P 12-20-2019 To manually activate Parking Mode, press and hold the           button until the P icon appears on the screen. 1440P+1080P+1080P 12-20-2019 In Parking Mode, the camera will exit Parking Mode if it detects  any vibration (Such as opening and closing the door, or moving  the  car  from  rest,  or  other  impact  vibrations  can  be  triggered),  and enter the Normal Video Mode. ...
  • Page 24 hardwire it directly to the car battery. We do not recom- mend running the camera continuously for too long time. 4.11  TIME LAPSE If TIME LAPSE is selected, the camera will take static photos  at the set time interval at 1second  to create a video  montage. If you set up the time lapse, the camera will take  one photo every second, and then stitch the photos  together into a 30 fps video. With a maximum recording  frame rate of 30fps, recording 8 hours of video with Time  Lapse 1Sec will generate a time lapse video lasting just 16  minutes (=8 x 60 x 60/30/60). This Eco Mode is recommend- ed for storage cards with smaller capacities. [Normal Recording Time = Time Lapse Recording Time (Sec)  x Recording Frame Rate FPS x Time Lapse Option] 1440P+1080P+1080P 12-20-2019 4.12  Connecting External GPS Receiver (Optional Accessory) To use the cameraʼs GPS function, please purchase an  external GPS receiver mount. This can be purchased from  Amazon. Install the External GPS Mount onto the camera instead of  the original mount. - 23 -...
  • Page 25 1440P+1080P+1080P 12-20-2019 12-20-2019 6. You  can  include  GPS  tracking  and  vehicle  speed  on  the  video  footage,  go  to  “Record  Setup”  >  “Stamp”  >  “GPS  Location Stamp” and “Speed Stamp” to set. You  can  review  recorded  video  using  the  VANTRUE®  GPS  Viewer (available for download on www.vantrue.net). 4.13  Viewing Video on the Camera Press          button and go to “Files”, press          and          or           button to navigate to  >  “Normal” or  >  “Event” file folders to  view and playback videos on the camera display. Use the           or            buttons to select the file and press          button to ...
  • Page 26 2019_12_23_151629_B.MP4 2019_12_23_151629_A.MP4 2019_12_23_113647_B.MP4 2019_12_23_113647_A.MP4 Normal 0:00/00:02 View on a computer Connect the camera to your computer using the supplied  Type-C USB cable. “USB Connecting” and “Power on” will be displayed on the  camera screen, please navigate to “USB Connecting” and press  ....button to transfer data. Depending on your computer OS, the device will appear either  as a removable drive or a removable volume. View on a TV The  camera  has  a  Micro  HDMI  port  for  connecting  an  external  display  such  as  a  monitor  or  TV.  Please  note  that  the  product  doesnʼt come supplied a Micro HDMI to HDMI cable. Use a USB charger to charge the camera. Insert the Micro HDMI connector into the cameraʼs HDMI port.
  • Page 27 NOTE:  To use the HDMI Output Mode, the camera requires a  constant power connection via USB.  When connected to an external display, the cameraʼs video  recording function is disabled. 4.14  Delete Videos on the Dash Cam Delete Normal Files Go to Normal file, choose a video on the dash cam, press the           button, then press the          button to select “Delete ”  section, press          button to select Delete. Delete Event Files Go to Event file, choose a video on the dash cam, press the          button, then press the          button to select “Delete ”  section, press          button to select Delete. 4.15  Auto LCD Off This feature avoids any chance of the screen being a  distraction in the vehicle, especially at night when the  illumination from the LED screen can be a nuisance or even a  hazard to the driver. If you set the Auto LCD Off to 3 minutes,  the cameraʼs LCD will light off after 3 minutes but recording  will continue with blue light blinks on the Indicator light. You  can press any button to light on the screen. - 26 -...
  • Page 28 Please go to System Setup to adjust this time to 30 sec, 1Min,  3Min, or OFF to disable it so the LCD can always stay on. 4.16  Upgrading the Firmware The system will automatically update if the microSD card  contains the firmware upgrade file. The camera will restart  once the upgrade has been completed. Always stay up-to-date The latest firmware version is always available at the official  VANTRUE website (www.vantrue.net). We strongly recom- mend registering your product (www.vantrue.net/register)  to receive a notification email when a new firmware update  is available. 4.17  Working Temperature The camera is designed to operate in temperatures from  14-158°F(-10°C to 70°C), temperatures outside this  range risk degrading the cameraʼs performance work and  causing damage. To avoid damage • In hot weather, do not expose the camera directly to the  sun when the car is parked. In extreme winter conditions, i.e. -4 (-20) or lower, detach  • the camera from the windshield when not in use, and store  in the glove box. - 27 -...
  • Page 29: Specifications

    5.   Specifications The specifications of this product may change without prior  notice due to product improvements. Model Image sensor Front: SONY STARVIS 5M CMOS Sensor Cabin: SONY STARVIS 2M CMOS Sensor Rear: SONY STARVIS 2M CMOS Sensor Channels 3 Channel 2.45" IPS LCD, 480x272 Lens Front: F1.4, 155 degree wide angle lens Cabin: F2.0, 165 degree wide angle lens External Camera: F1.8, 160 degree wide  angle lens Languages English/Japanese/Spanish/French/Italian /简体中文(Simplified Chinese)/ Deutsch  /Russian Video Front+Cabin+Rear Mode:  resolution 1440P+1080P+1080P 30FPS;  1080P+1080P+1080P 30FPS;  1080P+1080P+720P 30FPS;  720P+720P+720P 30FPS Front+Cabin Mode: 1440P+1080P 30FPS;  1080P+1080P 30FPS; 1080P+720P 30FPS;  720P+1080P 30FPS; 720P+720P 30FPS Front+Rear Mode: 1440P+1080P 30FPS;  1080P+1080P 30FPS; 1080P+720P 30FPS;  720P+1080P 30FPS; 720P+720P 30FPS Front mode: 2592x1520P 30FPS;  2560x1440P 30FPS; 1920x1080P 30FPS;  1280x720P 30FPS - 28 -...
  • Page 30: Warranty & Support

    File Format Audio Built-in microphone and speaker External memory Micro SD card (U3 or higher, up to 256GB) Shutter Type Electronic  USB Port Type-C Battery type  super-capacitor  Working voltage 5V 1.5A Working currency 800mA(Typical value) / DC 5V Working 14-158°F(-10°C to 70°C) Temperature Storage -4 to 176°F(-20°C to 80°C) Temperature Compatible OS Windows XP/Vista/7/8/10 &Mac OS 6.   Warranty & Support Warranty The VANTRUE ®  OnDash N4 Dash Cam comes with a full 12  months warranty. If you register your product on our official site (www.van- true.net/register), you can extend the warranty to 18 months. Support If you have any questions regarding your product, please do  not hesitate to contact us via Amazon or drop us an email at  support@vantrue.net. Queries are typically answered within  12-24 hours. - 29 -...
  • Page 31 Your opinion matters VANTRUE® is firmly committed to always improving our  products, services, and user experience. If you have any  thoughts on how we can do even better, we welcome your  constructive feedback and suggestions. Connect with us today  at support@vantrue.net. THANK YOU for choosing  - 30 -...
