Renesas ISL9123xIIx-EVZ Manual

ISL9123xIIx-EVZ
The ISL9123xIIx-EVZ platform allows quick
evaluation of the high-performance features of the
ISL9123, ISL9123A, and
The ISL9123 is a highly integrated buck switching
regulator that accepts input voltages above the
regulated output voltage. It features a remarkably low
quiescent current consumption, excellent efficiency,
2
and an I C interface that allows access its internal
registers for output voltage and operation mode
control.
VIN
GND
R16UZ0031EU0101 Rev.1.01
Jul 26, 2023
ISL9123B buck regulator.
VIN
EN
SDA
SCL
2
I C

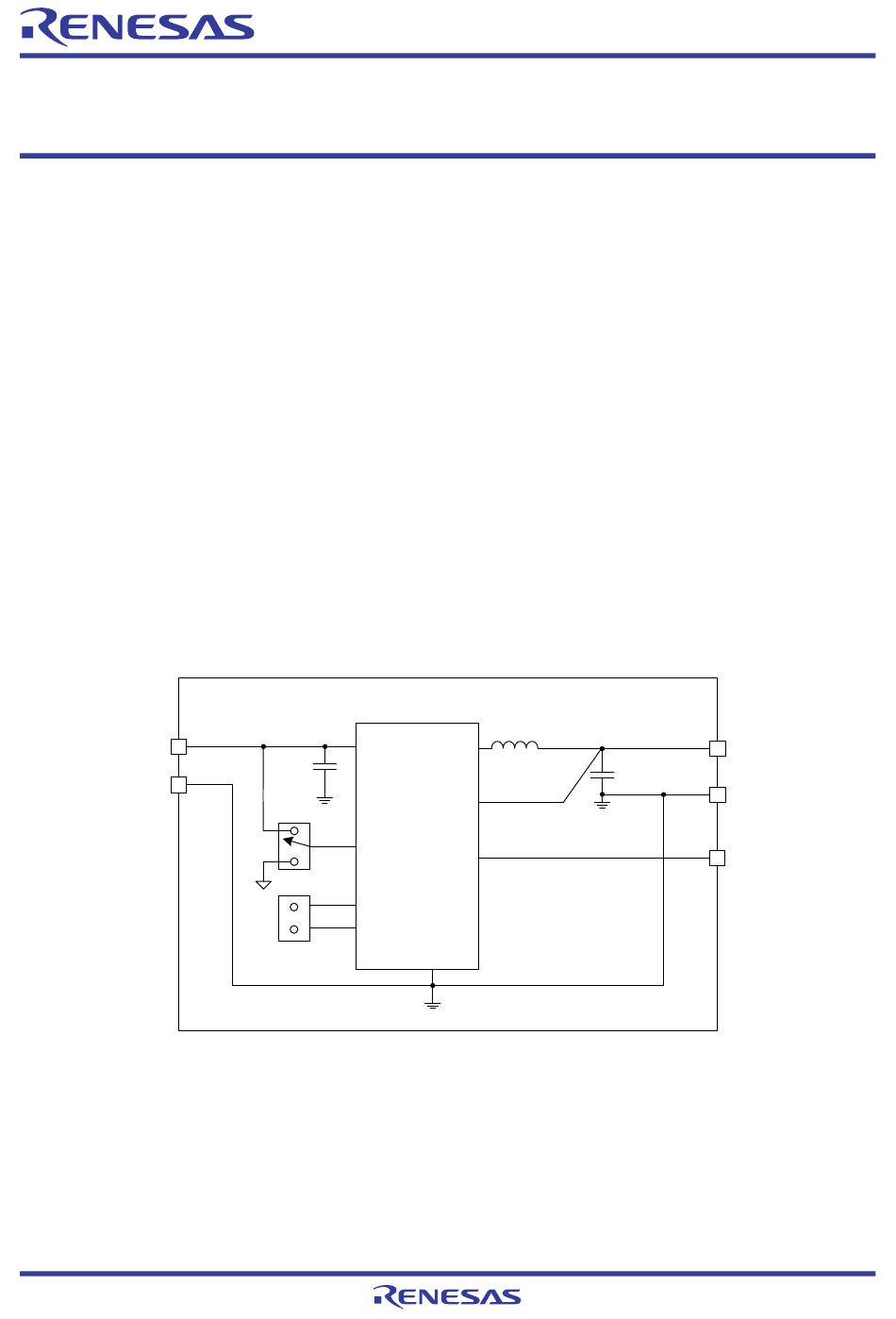

Figure 1. ISL9123xIIx-EVZ Block Diagram
Evaluation Board Manual
Features
▪ Small, compact design
2
▪ I C interface for programmable V
various operation modes (Forced Bypass
(ISL9123/A only), Auto-PFM, Forced PWM)
▪ Connectors, test points, and jumpers for easy
probing
Specifications
The board operates with the following conditions:
▪ Input voltage rating from 1.8V to 5.5V
▪ Programmable output voltage range of 0.4V to
5.375V (ISL9123/A), and to 1.180V (ISL9123B),
and selectable transition slew rate through I
interface
▪ Up to 600mA output current (VIN > 2.5V)
▪ Operating temperature range: -40°C to +85°C
LX
VOUT
VSW
GND
, slew rate and
OUT
VOUT
GND
VSW
