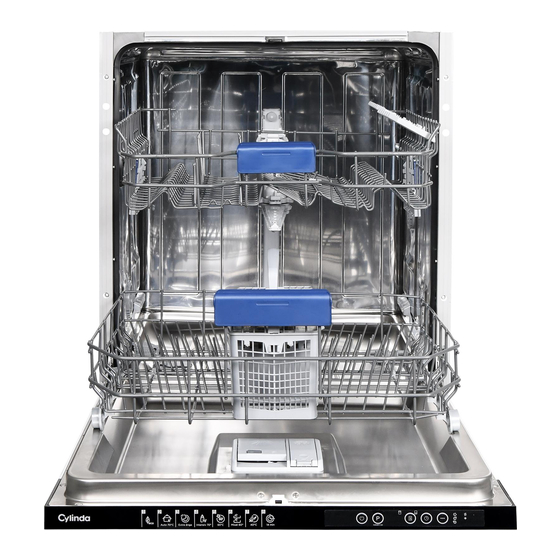

- Page 1 User manual DM4330FiD...
- Page 2 Thank you for choosing this product. This User Manual contains important information on safety and instructions intended to assist you in the operation and maintenance of your appliance. Please take the time to read this User Manual before using your appliance and keep this book for future reference.
-
Page 3: Table Of Contents
CONTENTS 1.SAFETY INSTRUCTIONS ....................1 1.1. General Safety Warnings ....................1 1.2. Installation Warnings .....................2 1.3. During Use........................3 2.INSTALLATION ......................... 6 2.1. Machine Positioning .....................6 2.2. Water Connection ......................6 2.3. Water Inlet Hose ......................6 2.4. Drain Hose........................7 2.5. Electrical Connection ....................7 2.6. - Page 4 CONTENTS 8.CLEANING AND MAINTENANCE ................. 24 8.1. Filters...........................24 8.2. Spray Arms ........................24 8.3. Drain Pump........................25 9.TROUBLESHOOTING ....................26...
-
Page 5: Safety Instructions
1. SAFETY INSTRUCTIONS 1.1. General Safety Warnings • Read these instructions carefully before using your appliance and keep this manual for future reference. Please check the packaging of your machine before installation and the outer surface of the machine once the packaging has been removed. Do not operate the machine if it appears damaged or if the packaging has been opened. -
Page 6: Installation Warnings
1.2. Installation Warnings • Choose a suitable and safe place to install your machine. • Only original spare parts should be used with the machine. Unplug the machine before installation. Your machine must only be installed by an authorised service agent. Installation by anyone other than an authorised agent may cause your warranty to be void. -
Page 7: During Use
pressure exceeds 1 MPa, a pressure relief valve must be fitted between the connection. 1.3. During Usage • This machine is for domestic use only; do not use it for other purposes. Commercial use will void the guarantee. Do not stand, sit or place loads on the open door the dishwasher. - Page 8 the door for one minute after it has opened. For effective drying, keep the door open for 30 minutes after a programme has ended. Do not stand in front of the door after the auto-open signal sounds. In the case of a malfunction, repair should only be performed by an authorised service company, otherwise the warranty will be void.
- Page 9 RECYCLING • Some machine components and packaging consist of recyclable materials. • Plastics are marked with the international abbreviations:(>PE<, >PP<, etc. ) • The cardboard parts consist of recycled paper. They can be put into waste paper containers for recycling. •...
-
Page 10: Installation
2. INSTALLATION 2.3. Water inlet hose 2.1. Machine positioning When positioning the machine, place it in an area where dishes can be easily loaded and unloaded. Do not put the machine in an area where the ambient temperature falls below 0°C. Read all warnings located on the packaging before removing the packaging and positioning the machine. -
Page 11: Drain Hose
2.4. Drain hose 2.5. Electrical connection WARNING: Your machine is set to operate at 220-240 V. If the mains voltage supply to your machine is 110 V, connect a transformer of 110/220 V and 3000 W between the electrical connection. Connect the product to a grounded outlet protected by a fuse complying with the values in the... -
Page 12: Fitting The Machine Undercounter
2.6. Fitting the Machine Undercounter 700X75 OPS.(+50)H=870-920 mm EN - 8... - Page 13 Adjust the machine’s feet. EN - 9...
- Page 14 Option 1: To put the furtniture kickplate. Option 2: To put the adjustable plint group. Follow the instructions is given with adjustable plint group. EN - 10...
-
Page 15: Technical Specifications
3. TECHNICAL SPECIFICATIONS 3.2. Technical Specifications 13 place Capacity settings Dimensions (mm) 820-870(mm) Height 870-920(mm) Width 598(mm) Depth 570(mm) 3.1. General Appearance 1. Upper basket with racks Net weight 38 kg 2. Upper spray arm 3. Lower basket Operating 220-240V 50 4. -
Page 16: Preparing The Machine For Use
4. PREPARING THE MACHINE FOR USE 4.1. Preparing your dishwasher for first use • Make sure the electricity and supply water specifications match the values indicated in the installation instructions for the machine. • Remove all packaging material inside the machine. •... -
Page 17: Test Strip
4.4. Test Strip Run water Keep the Shake the Wait Set the hardness level of through the strip in the strip. (1min.) your machine. tap (1min.) water (1sec) NOTE: The level is set to 1 as default. If the water is well water or has a hardness level above 90 dF, we recommend that you use filter and refinement devices. -
Page 18: Filling The Detergent
Do not fill detergent into the detergent 4.11. Rinse-aid usage compartment more than required; otherwise The rinse aid helps to dry the dishes without you can see whitish streaks or bluish layers streaks and stains. Rinse-aid is required for on glass and dishes and may cause glass stain-free utensils and clear glasses. - Page 19 Level Brightener Dose Indicator Rinse-aid not r1 is shown on the dispensed display. 1 dose is r2 is shown on the dispensed display. 2 doses are r3 is shown on the dispensed display. 3 doses are r4 is shown on the dispensed display.
-
Page 20: Loading Your Dishwasher
5. LOADING YOUR Height Adjustable Rack (peg type) DISHWASHER The height adjustable racks enable glasses and cups to be placed on or under the For best results, follow these loading racks. The racks can be adjusted to 2 guidelines. different heights. Cutlery and utensils can Loading the household dishwasher up to also be placed on the racks horizontally. - Page 21 Height adjustment The upper basket includes a mechanism which enables the height of the basket to be adjusted up (1) or down (2) without having to remove the basket. Hold the basket on both sides and pull it up or push it down, ensuring both sides of the upper basket are in the same position.
-
Page 22: Alternative Basket Loads
5.2. Alternative basket loads UnsUitable items for dishwashing Lower basket • Cigarette ashes, candle leftovers, polish, paint, chemical substances, iron- alloy materials. • Forks, spoons and knives with wooden, bone, ivory or nacrecoated handles; glued items, items soiled with abrasive, acidic or base chemicals. -
Page 23: Programme Table
EN - 19... - Page 24 • The program duration may change according to the amount of dishes, the water temperature, the ambient temperature and selected additional functions. • Values given for programmes other than the eco programme are indicative only • If your model has turbidity sensor, it has Auto program instead of Intensive program. •...
-
Page 25: The Control Panel
7. THE CONTROL PANEL 5. Delay Button Press the Delay Start button to delay the İ İİ İİİ start time of a programme for 1 hour up to 19 hours. Pressing once will delay the start time for 1 hour, and continuing to press the button will increase the delay duration. -
Page 26: Changing A Programme
needs filling. 7.3. Switching the Machine Off NOTE: If you decide not to start the selected programme, please see the "Changing a Programme" and "Cancelling a Programme" sections. "0" will be shown on the display when a programme is complete. A buzzer will also sound 5 times. - Page 27 Save Power Mode Crystalight function is activated or deactivated by pressing Half Load (4) To activate or deactivate Save Power button for 6 seconds. At the end of 6 Mode, follow the below steps: seconds, “UV1” will be displayed which 1.
-
Page 28: Cleaning And Maintenance
8. CLEANING AND To remove and clean the filter combination, turn it counter clockwise and remove it by MAINTENANCE lifting it upwards (1).Pull the coarse filter out of the micro filter (2).Then pull and remove Cleaning your dishwasher is important to the metal filter (3).Rinse the filter with lots of maintain the machine’s service life water until it is free of residue. -
Page 29: Drain Pump
8.3. Drain Pump Large food residues or foreign objects which were not captured by the filters may block the waste water pump. The rinsing water will then be above the filter. Warning Risk of cuts! When cleaning the waste water pump, ensure that you do not injure yourself on pieces of broken glass or pointed implements. -
Page 30: Troubleshooting
9. TROUBLESHOOTING FAULT POSSIBLE CAUSE TROUBLESHOOTING Your Dishwasher is not plugged in. Plug your Dishwasher in. Switch your Dishwasher on by pressing the Your Dishwasher is not switched on. On/Off button. Fuse blown. Check your indoor fuses. The programme does not start. - Page 31 FAULT POSSIBLE CAUSE TROUBLESHOOTING Use the correct amount of detergent, as Not enough detergent used. instructed in the programme table. Rinse aid dosage and/or water Increase rinse aid and/or water softener softener setting set too low. level. Whitish stains remains on dishes.
- Page 32 AUTOMATIC FAULT WARNINGS AND WHAT TO DO TROUBLE POSSIBLE FAULT WHAT TO DO CODE Make sure the water inlet tap is open and water is flowing. Separate the inlet hose from the tap and clean the filter of Water inlet system failure the hose.
- Page 33 Service Nationwide service in Sweden Visit www.cylinda.se Call 0771-25 25 00 Declare Model code Serial number Purchase date Problem description Name and address Phone number Contact us www.cylinda.se 52394731 R60...
