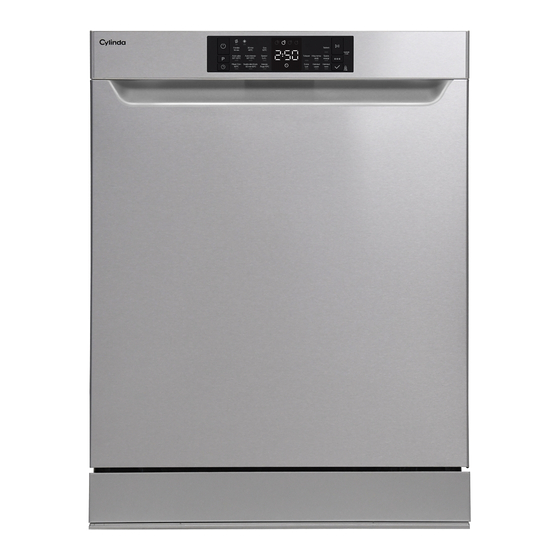

Cylinda DM4540C User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
User manual
DM4540C / DM4540RFC

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DM4540C and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Cylinda DM4540C

Summary of Contents for Cylinda DM4540C

  • Page 1 User manual DM4540C / DM4540RFC...
  • Page 2 Thank you for choosing this product. This user manual contains important information on safety and instructions intended to assist you in the operation and maintenance of your appliance. Please take the time to read this user manual before using your appliance and keep this book for future reference.

  • Page 3: Table Of Contents

    CONTENTS 1 SAFETY INSTRUCTIONS ................1 1.1 General Safety Warnings ....................1 1.2 Installation Warnings .....................2 1.3 During Usage........................3 2 INSTALLATION ....................6 2.1 Machine Positioning ......................6 2.2 Water Connection ......................6 2.3 Water Inlet Hose ......................6 2.4 Drain Hose (Model Depending) ..................7 2.5 Electrical Connection ......................7 2.6 Fitting the Machine Undercounter ..................8 3 TECHNICAL SPECIFICATIONS ..............

  • Page 4: Safety Instructions

    1 SAFETY INSTRUCTIONS 1.1 General Safety Warnings • Read these instructions carefully before using your appliance and keep this manual for future reference. Please check the packaging of your machine before installation and the outer surface of the machine once the packaging has been removed. Do not operate the machine if it appears damaged or if the packaging has been opened.

  • Page 5: Installation Warnings

    There may be some residue left in the machine after washing. Keep children away from the machine when it is open. 1.2 Installation Warnings • Choose a suitable and safe place to install your machine. • Only original spare parts should be used with the machine.

  • Page 6: During Usage

    Always use the coated plug supplied with your machine. If the electrical cable is damaged, it should only be replaced by a qualified electrician. • Connect the hose directly to the water inlet tap. The pressure supplied by the tap should be a minimum of 0.03 MPa and a maximum of 1 MPa.
  • Page 7 Do not open the door while the machine is in operation, hot water may spill out. Safety devices ensure the machine stops if the door is opened. The machine door should not be left open. It may cause accidents. Place knives and other sharp objects in the cutlery basket in a blade-down position.
  • Page 8 RECYCLING • Some machine components and packaging consist of recyclable materials. • Plastics are marked with the international abbreviations:(>PE<, >PP<, etc. ) • The cardboard parts consist of recycled paper. They can be put into waste paper containers for recycling. •...

  • Page 9: Installation

    2 INSTALLATION water). For all other models: Cold water preferred; hot water max. 2.1 Machine Positioning temperature 60 °C. When positioning the machine, place it in an area where dishes can be easily loaded 2.3 Water Inlet Hose and unloaded. Do not put the machine in an area where the ambient temperature falls below 0°C.

  • Page 10: Drain Hose (Model Depending)

    2.4 Drain Hose (Model Depending) 2.5 Electrical Connection WARNING: Your machine is set to operate at 220-240 V. If the mains voltage supply to your machine is 110 V, connect a transformer of 110/220 V and 3000 W between the electrical connection. Connect the product to a grounded outlet protected by a fuse complying with the values in the...

  • Page 11: Fitting The Machine Undercounter

    2.6 Fitting the Machine Undercounter 700X75 OPS.(+50)H=870-920 mm EN - 8...
  • Page 12 4 Adjust the machine’s feet. EN - 9...
  • Page 13 5 Option 1: To put the furtniture kickplate. 6 Option 2: To put the adjustable plint group. Follow the instructions is given with adjustable plint group. EN - 10...

  • Page 14: Technical Specifications

    3 TECHNICAL SPECIFICATIONS 3.2 Technical Specifications 16 place Capacity settings Dimensions Height 820-870 (mm) Width 598 (mm) 570 (mm) Depth Net weight 42,600 kg Operating 220-240V voltage / 50 Hz frequency Total current 10(A) Total power 1900(W) Maximum: Water supply 1 (Mpa) 3.1 General Sppearance pressure...

  • Page 15: Before Using The Appliance

    4 BEFORE USING THE 4.3 Fill The Salt (IF AVAILABLE) APPLIANCE To add softener salt, open the salt compartment cap by turning it counter 4.1 Preparing Your Dishwasher For First clockwise. (1) (2) At first use, fill the compartment with 1 kg salt and water (3) until it is almost overflowing.

  • Page 16: Test Strip

    4.4 Test Strip Run water Keep the Shake the Wait Set the hardness level of through the strip in the strip. (1min.) your machine. tap (1min.) water (1sec) second munite munite NOTE: The level is set to 3 as default. If the water is well water or has a hardness level above 90 dF, we recommend that you use filter and refinement devices.

  • Page 17: Detergent Usage

    4.8 Detergent Usage Combined detergents contain not only the detergent but also rinse-aid, salt Only use detergents specifically designed replacement substances and additional for domestic dishwashers. Keep your components depending on the combination. detergents in cool, dry places out of reach We recommend you do not use combined of children.
  • Page 18 • Switch off the machine to save the setting. • The factory setting is “4”. If the dishes are not drying properly or are spotted, increase the level. If blue stains form on your dishes, decrease the level. Level Brightener Dose Indicator Rinse-aid not r1 is shown on the...

  • Page 19: Loading Your Dishwasher

    5 LOADING YOUR DISHWASHER Four Folding Racks The folding racks allow easier placement of For best results, follow these loading larger items, such as pots and pans. Each guidelines. section can be folded separately. The racks Loading the household dishwasher up to can be raised up, or folded down, as shown the capacity indicated by the manufacturer in the images.
  • Page 20 Height Adjustment Height Adjustable Rack The upper basket includes a mechanism The foldable racks in the upper basket which enables the height of the basket enable the placement of large items such to be adjusted up (1) or down (2) without as pots and pans.
  • Page 21 Upper Cutlery Basket The upper cutlery basket is designed for the placement of large and small cutlery and utensils. The basket is easily removed from the dishwasher, therefore allows ease of use when removing your items, along with the basket, after washing. WARNING: Knives and other sharp objects must be placed horizontally in the cutlery The upper cutlery basket is composed of...
  • Page 22 Multi-functional Rack System The multi-functional rack system is located in the lower basket. It can be used for the placement of mugs or large utensils for washing. To close the racks, fold them from position (a) to position (b). Make sure the clips on the rack fit on the wire (c).

  • Page 23: Alternative Basket Loads

    5.2 Alternative Basket Loads Lower Basket Top Basket Incorrect Loads Incorrect loading can cause poor washing and drying performance. Please follow the manufacturer’s recommendations for a good performans result. Important Note for Test Laboratories For detailed information required for tests according to EN normatives and a softcopy of the manual, please send the model name and serial number to the following address:...

  • Page 24: Programme Table

    EN - 21...
  • Page 25 • The program duration may change according to the amount of dishes, the water temperature, the ambient temperature and selected additional functions. • Values given for programmes other than the eco programme are indicative only • Eco programme is suitable to clean normally soiled tableware, that for this use, it is the most efficient programme in terms of its combined energy and water consumption, and that it is used to assess compliance with the EU ecodesign legislation.

  • Page 26: The Control Panel

    7. THE CONTROL PANEL 3. Delay Button You can delay the start time of the program- me for 1-2...24 hours by pressing the delay button (3) before the programme starts. The delay indicator (3.1) will be on. If you want to change the delay time,first press the Start/Pause button and then the delay but- ton to select a new delay time.
  • Page 27 11. Extra Hygiene Indicator NOTE: Child lock is activated/deactiva- Select the Extra Hygiene function to ted by pressing select button (7) for about increase the wash temperature, for a 3 seconds. When it is activated, all leds maximum hygiene washing operation. The blink and “CL”...
  • Page 28 Changing a programme When the End light turns on, If you would like to change the programme switch your machine off by when the machine is already running. pressing the On/Off button. Press the Start/ Pause button. Switching the Machine Off Switch your machine off with On/Off button after the programme has ended and the End light turns on.
  • Page 29 Buzzer Sound Control PureBeam & PureBeam+(Model (Model Depending) Depending) To change the buzzer sound level, follow This technology which have Ion and Light the below steps: Technology together, provides to extra 1. Open the door and press Option (6) and hygi-ene.

  • Page 30: Cleaning And Maintenance

    8 CLEANING AND To remove and clean the filter combination, MAINTENANCE turn it counter clockwise and remove it by Cleaning your dishwasher is important to lifting it upwards (1).Pull the coarse filter maintain the machine’s service life out of the micro filter (2).Then pull and Make sure that the water softening setting remove the metal filter (3).Rinse the filter (If available) is done correctly and correct...

  • Page 31: Drain Pump

    8.3 Drain Pump Large food residues or foreign objects which were not captured by the filters may block the waste water pump. The rinsing water will then be above the filter. Warning Risk of cuts! When cleaning the waste water pump, ensure that you do not injure yourself on p ieces of broken glass or pointed implements.

  • Page 32: Troubleshooting

    9 TROUBLESHOOTING FAULT POSSIBLE CAUSE TROUBLESHOOTING Your Dishwasher is not plugged in. Plug your Dishwasher in. Switch your Dishwasher on by pressing the Your Dishwasher is not switched on. On/Off button. Fuse blown. Check your indoor fuses. The programme does not start.
  • Page 33 FAULT POSSIBLE CAUSE TROUBLESHOOTING Use the correct amount of detergent, as Not enough detergent used. instructed in the programme table. Rinse aid dosage and/or water Increase rinse aid and/or water softener softener setting set too low. level. Whitish stains remains on dishes.
  • Page 34 AUTOMATIC FAULT WARNINGS AND WHAT TO DO TROUBLE POSSIBLE FAULT WHAT TO DO CODE Make sure the water inlet tap is open and water is flowing. Separate the inlet hose from the tap and clean the filter of Water inlet system failure the hose.
  • Page 35 Service Nationwide service in Sweden Visit www.cylinda.se Call 0771-25 25 00 Declare Model code Serial number Purchase date Problem description Name and address Phone number Contact us www.cylinda.se ---------------------...
