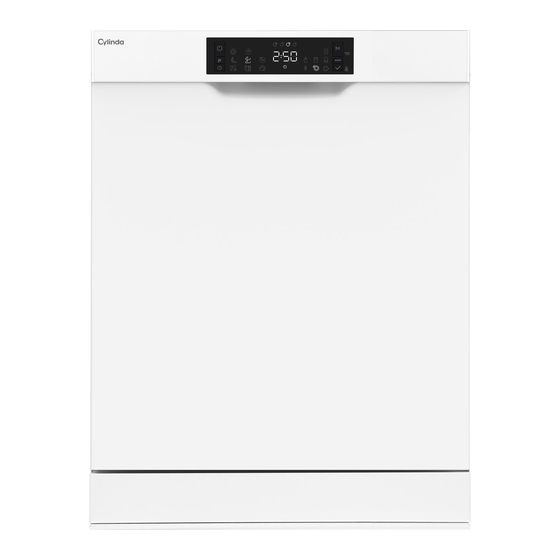

User manual
DM4350D / DM4350RFD

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DM4350D and is the answer not in the manual?

Questions and answers

Related Manuals for Cylinda DM4350D

Summary of Contents for Cylinda DM4350D

  • Page 1 User manual DM4350D / DM4350RFD...
  • Page 2 Thank you for choosing this product. This user manual contains important information on safety and instructions intended to assist you in the operation and maintenance of your appliance. Please take the time to read this user manual before using your appliance and keep this book for future reference.

  • Page 3: Table Of Contents

    CONTENTS 1 SAFETY INSTRUCTIONS ................1 1.1 General Safety Warnings ....................1 1.2 Installation Warnings .....................2 1.3 During Usage........................3 2 INSTALLATION ....................6 2.1 Machine Positioning ......................6 2.2 Water Connection ......................6 2.3 Water Inlet Hose ......................6 2.4 Drain Hose (Model Depending) ..................7 2.5 Electrical Connection ......................7 2.6 Fitting the Machine Undercounter ..................8 3 TECHNICAL SPECIFICATIONS ..............

  • Page 4: Safety Instructions

    1 SAFETY INSTRUCTIONS 1.1 General Safety Warnings • Read these instructions carefully before using your appliance and keep this manual for future reference. Please check the packaging of your machine before installation and the outer surface of the machine once the packaging has been removed. Do not operate the machine if it appears damaged or if the packaging has been opened.

  • Page 5: Installation Warnings

    There may be some residue left in the machine after washing. Keep children away from the machine when it is open. 1.2 Installation Warnings • Choose a suitable and safe place to install your machine. • Only original spare parts should be used with the machine.

  • Page 6: During Usage

    Always use the coated plug supplied with your machine. If the electrical cable is damaged, it should only be replaced by a qualified electrician. • Connect the hose directly to the water inlet tap. The pressure supplied by the tap should be a minimum of 0.03 MPa and a maximum of 1 MPa.
  • Page 7 Do not open the door while the machine is in operation, hot water may spill out. Safety devices ensure the machine stops if the door is opened. The machine door should not be left open. It may cause accidents. Place knives and other sharp objects in the cutlery basket in a blade-down position.
  • Page 8 Pull the plug to disconnect the machine from the mains, never pull on the cord. EN - 5...

  • Page 9: Installation

    water). 2 INSTALLATION For all other models: Cold water preferred; hot water max. 2.1 Machine Positioning temperature 60 °C. When positioning the machine, place it in an area where dishes can be easily loaded 2.3 Water Inlet Hose and unloaded. Do not put the machine in an area where the ambient temperature falls below 0°C.

  • Page 10: Drain Hose (Model Depending)

    2.4 Drain Hose (Model Depending) 2.5 Electrical Connection WARNING: Your machine is set to operate at 220-240 V. If the mains voltage supply to your machine is 110 V, connect a transformer of 110/220 V and 3000 W between the electrical connection. Connect the product to a grounded outlet protected by a fuse complying with the values in the...

  • Page 11: Fitting The Machine Undercounter

    2.6 Fitting the Machine Undercounter 700X75 OPS.(+50)H=870-920 mm EN - 8...
  • Page 12 4 Adjust the machine’s feet. EN - 9...
  • Page 13 5 Option 1: To put the furtniture kickplate. 6 Option 2: To put the adjustable plint group. Follow the instructions is given with adjustable plint group. EN - 10...

  • Page 14: Technical Specifications

    3.2 Technical Specifications TECHNICAL SPECIFICATIONS 15 place Capacity settings Dimensions Height 820-870 (mm) Width 598 (mm) 570 (mm) Depth Net weight 39,500 kg Operating 220-240V voltage / 50 Hz frequency Total current 10(A) Total power 1900(W) Maximum: Water supply 1 (Mpa) pressure Minimum: 3.1 General Sppearance...
  • Page 15 RECYCLING • Some machine components and packaging consist of recyclable materials. • Plastics are marked with the international abbreviations:(>PE<, >PP<, etc. ) • The cardboard parts consist of recycled paper. They can be put into waste paper containers for recycling. •...

  • Page 16: Before Using The Appliance

    4 BEFORE USING THE 4.3 Fill The Salt (IF AVAILABLE) APPLIANCE To add softener salt, open the salt compartment cap by turning it counter 4.1 Preparing Your Dishwasher For First clockwise. (1) (2) At first use, fill the compartment with 1 kg salt and water (3) until it is almost overflowing.

  • Page 17: Test Strip

    4.4 Test Strip Run water through Keep the strip in Set the hardness level of Shake the strip. Wait (1min.) the tap (1min.) the water (1sec) your machine. second NOTE: The level is set to 3 as default. If the water is well water or has a hardness level above 90 dF, we recommend that you use filter and refinement devices.

  • Page 18: Detergent Usage

    4.8 Detergent Usage the detergent but also rinse-aid, salt replacement substances and additional Only use detergents specifically designed components depending on the combination. for domestic dishwashers. Keep your We recommend you do not use combined detergents in cool, dry places out of reach detergents in short programmes.
  • Page 19 • Set the level by pushing the programme button. • Switch off the machine to save the setting. • The factory setting is “4”. If the dishes are not drying properly or are spotted, increase the level. If blue stains form on your dishes, decrease the level.

  • Page 20: Loading Your Dishwasher

    5 LOADING YOUR DISHWASHER For best results, follow these loading guidelines. Loading the household dishwasher up to the capacity indicated by the manufacturer will contribute to energy and water savings. Manual pre-rinsing of tableware items leads to increased water and energy consumption and is not recommended You can place cups, glasses, stemware, small plates, bowls, etc.
  • Page 21 Four Folding Racks (15 pc) Upper Basket Height Adjustment When Full The folding racks allow easier placement of larger items, such as pots and pans. The upper basket includes a mechanism that allows the height of the basket to Each section can be folded separately. The racks can be raised up, or folded down, as be adjusted to the upper (1), lower (2) shown in the images.
  • Page 22 Height Adjustable Rack (peg type) The height adjustable racks enable glasses and cups to be placed on or under the racks. The racks can be adjusted to 2 different heights. Cutlery and utensils can also be placed on the racks horizontally. EN - 19...
  • Page 23 Upper Cutlery Basket WARNING: Knives and other sharp objects must be placed horizontally in the cutlery The upper cutlery basket is designed for basket. you to place forks, spoons and knives, long dippers and small items. The Upper Cutlery Basket is composed of three pieces;...

  • Page 24: Alternative Basket Loads

    5.2 Alternative Basket Loads Lower Basket Top Basket Incorrect Loads Incorrect loading can cause poor washing and drying performance. Please follow the manufacturer’s recommendations for a good performans result. EN - 21...
  • Page 25 SOFT TOUCH Top basket Height Adjustable Rack These racks are designed to increase the capacity of the top basket. You can place your glasses and cups on the racks. You can adjust the height of these racks. Thanks to this feature, you can place different sizes of glasses under these racks.
  • Page 26 EN - 23...
  • Page 27 • The program duration may change according to the amount of dishes, the water temperature, the ambient temperature and selected additional functions. • Values given for programmes other than the eco programme are indicative only • Eco programme is suitable to clean normally soiled tableware, that for this use, it is the most efficient programme in terms of its combined energy and water consumption, and that it is used to assess compliance with the EU ecodesign legislation.

  • Page 28: Programme Table

    7 THE CONTROL PANEL button (3) before the programme starts. The delay indicator (3.1) will be on. If you want (9) (8) (16) (13) to change the delay time,first press the (14) (11) Start/Pause button and then the delay but- ton to select a new delay time.

  • Page 29: Changing A Programme

    9. Salt Indicator symbol is on, the machine will remain silent with respect to the programme you have When there is insufficient softening salt, the selected for 15 to 100 minutes. salt lack warning indicator turns on and you should fill up the salt chamber. NOTE: If an extra option has been Tablet Option Indicator used on the most recent wash programme,...

  • Page 30: Cancelling A Programme

    NOTE: Do not open the door before the programme ends. Start the newly selected programme by pressing the Start/Pause button. NOTE: At the end of washing programme, you can leave the door of your The new programme will resume machine ajar to hasten the drying. the course of the old programme.
  • Page 31 door is opened, and the machine will turn NOTE: If user do not deactivate off after 15 minutes of no activity in order to PureBeam function at the end of program, it save energy. will remain active until the machine turns off. 4.

  • Page 32: Cleaning And Maintenance

    8 CLEANING AND To remove and clean the filter combination, turn it counter clockwise and remove it by MAINTENANCE lifting it upwards (1).Pull the coarse filter Cleaning your dishwasher is important to out of the micro filter (2).Then pull and maintain the machine’s service life remove the metal filter (3).Rinse the filter Make sure that the water softening setting...

  • Page 33: Drain Pump

    8.3 Drain Pump Large food residues or foreign objects which were not captured by the filters may block the waste water pump. The rinsing water will then be above the filter. Warning Risk of cuts! When cleaning the waste water pump, ensure that you do not injure yourself on p ieces of broken glass or pointed implements.

  • Page 34: Troubleshooting

    9 TROUBLESHOOTING FAULT POSSIBLE CAUSE TROUBLESHOOTING Your Dishwasher is not plugged in. Plug your Dishwasher in. Switch your Dishwasher on by pressing the Your Dishwasher is not switched on. On/Off button. Fuse blown. Check your indoor fuses. The programme does not start.
  • Page 35 FAULT POSSIBLE CAUSE TROUBLESHOOTING Use the correct amount of detergent, as Not enough detergent used. instructed in the programme table. Rinse aid dosage and/or water Increase rinse aid and/or water softener softener setting set too low. level. Whitish stains remains on dishes.
  • Page 36 AUTOMATIC FAULT WARNINGS AND WHAT TO DO TROUBLE POSSIBLE FAULT WHAT TO DO CODE Make sure the water inlet tap is open and water is flowing. Separate the inlet hose from the tap and clean the filter of Water inlet system failure the hose.
  • Page 37 Service Nationwide service in Sweden Visit www.cylinda.se Call 0771-25 25 00 Declare Model code Serial number Purchase date Problem description Name and address Phone number Contact us www.cylinda.se ---------------------...
