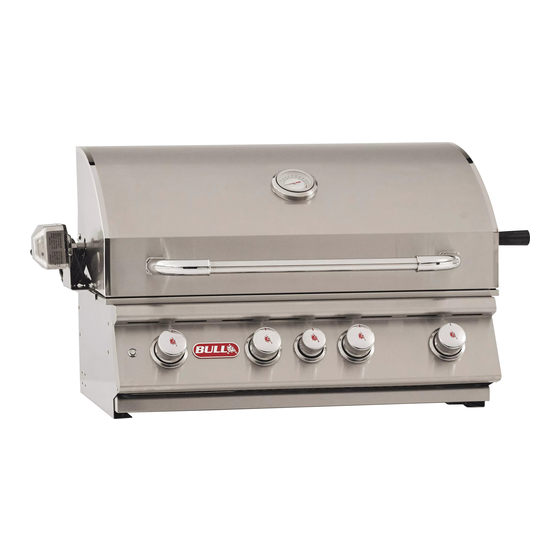

ASSEMBLY & OPERATING INSTRUCTIONS
OUTLAW
MODEL #26038 (L.P.)
MODEL #26039 (N.G.)
DANGER
If you smell gas:
•Shut off gas to the appliance.
•Extinguish any open flame.
•Open lid.
•If odor continues, keep away from
the appliance and immediately call
your gas supplier or your
fire department.
30 INCH GRILL HEADS
LONESTAR SELECT
MODEL #87048 (L.P.)
MODEL #87049 (N.G.)
MODEL #47628 (L.P.)
MODEL #47629 (N.G.)
WARNING
Do not store or use gasoline
•
or other flammable liquids
or vapors in the vicinity of
this or any other appliance.
An LP cylinder not
•
connected for use shall
not be stored in the
vicinity of this or any
other appliance.
USA EDITION
ANGUS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 47629 and is the answer not in the manual?

Questions and answers

Related Manuals for Bull 47629

Summary of Contents for Bull 47629

  • Page 1 LONESTAR SELECT ANGUS MODEL #26038 (L.P.) MODEL #87048 (L.P.) MODEL #47628 (L.P.) MODEL #26039 (N.G.) MODEL #87049 (N.G.) MODEL #47629 (N.G.) WARNING DANGER Do not store or use gasoline • If you smell gas: or other flammable liquids •Shut off gas to the appliance.

  • Page 2: Table Of Contents

    TABLE OF CONTENTS PAGE #2 SAFETY INSTRUCTIONS GRILL OPERATIONAL SAFETY....................................3 CHECKING FOR GAS LEAKS ....................................4 LIQUID PROPANE GAS SAFETY .................................... 5 LIQUID PROPANE TO NATURAL GAS CONVERSION……………………………………………………………………………………………………..5 NATURAL GAS SAFETY……………………………………………………………………………………………………………………………………… 5 INSTALLATION INSTRUCTIONS GRILL LOCATION ........................................6 GRILL VENTILATION ........................................ 6 GRILL VENTILATION WHEN INSTALLED INTO ISLANDS FOR ENCLOSURES……………………………………………………………………….7 LP GAS CONNECTION SPECIFICATIONS FOR ISLANDS AND ENCLOSURE ....................

  • Page 3: Safety Instructions

    SAFETY INSTRUCTIONS GRILL OPERATIONAL SAFETY WARNING! FOR YOUR SAFETY, READ THE GUIDELINES BELOW FOR ASSEMBLY AND OPERATION OF YOUR GRILL YOUR GAS GRILL IS ONLY FOR OUTDOOR USE. PROTECT CHILDREN: DO NOT ALLOW CHILDREN TO OPERATE GRILL. KEEP THEM AWAY FROM THE GRILL DURING USE, AND UNTIL THE GRILL HAS COOLED COMPLETELY.

  • Page 4: Checking For Gas Leaks

    14) VISUALLY INSPECT THE LP HOSE PRIOR TO EACH USE FOR CUTS, CRACKS, EXCESSIVE WEAR OR DAMAGE. IF FOUND ASSEMBLY SHOULD BE REPLACED, USE ONLY THE BULL PART NUMBERS SHOWN IN THE PARTS LIST SUPPLIED WITH THIS UNIT. THE REPLACEMENT HOSE ASSEMBLY SHALL BE THAT SPECIFIED BY THE MANUFACTURER.

  • Page 5: Liquid Propane To Natural Gas Conversion

    LIQUID PROPANE GAS TO NATURAL GAS CONVERSION Gas valves are pre-set at the Bull factory to operate on LP Gas or Natural Gas. If you wish to convert to a different gas type, other than LP or NG, be sure to contact your grill dealer, licensed plumber or authorized service center for further details.

  • Page 6: Grill Ventilation

    THE LOCATION AND INSTALLATION OF YOUR GRILL PLEASE READ THESE INSTRUCTIONS BEFORE INSTALLING YOUR GRILL Your Built-in Gas Grill comes to you fully assembled. We strongly recommend professional installation and hook up of the Gas BBQ grill. These instructions will provide you with the measurements necessary for you or your builder to construct a masonry structure for your outdoor gas grill.
  • Page 7 5 inches/12.7 cm/127 mm from the bottom of the island enclosure to the top of the vent. If not using Bull vents. The vents you use must meet ANSI Standard codes. The upper vents must have openings that have a total free area of not less than 1 sq. in/6.45 sq. cm/645 sq. mm per lb/kg of stored fuel capacity per vent and the lower vents must have openings that have a total free area of not less than 1/2 sq.
  • Page 8 LIQUID PROPANE GRILL INSTALLATION SPECIFICATIONS Vents must be provided for combustion air and ventilation on both sides of built-in cabinet. When choosing a location for your gas grill keep in mind that it should never be located under any overhead combustible construction.

  • Page 9: Lp Gas Tank Retention

    Below are the requirements with supportive illustrations for an LP Tank enclosure and how to install a Tank Retention System which can be obtained through your Bull Dealer: Per CSA the following is required that any built-in cabinet must have enough room for only 1 LP tank. The LP tank enclosure must not exceed (24.5”...
  • Page 10 ANSI Z21.75 For post-mounted outdoor cooking gas appliances, in-ground metallic posts shall be protected against corrosion as warranted by soil conditions. A suitable coating of corrosion protection will retard the effects of corrosion and help your Bull purchase last longer.
  • Page 11 LIGHT SYSTEM TRANSFORMER INSTALLATION NOTE: Per illustration below, the transformer must be installed at least 6” above the ground to ensure transformer and interior light system longevity. The transformer has mounting holes so you can fasten to the frame inside your island or grill enclosure.
  • Page 12 GRILL ‘FIRST USE’ LIGHTING PROCEDURE • DO NOT SMOKE WHILE LIGHTING GRILL OR CHECKING GAS SUPPLY • CONNECTIONS BECOME FAMILIAR WITH THE SAFETY GUIDELINES AT THE FRONT OF THE MANUAL • DO NOT LEAVE GRILL UNATTENDED DURING USE • DO NOT MOVE GRILL DURING USE •...
  • Page 13 GRILL STANDARD LIGHTING PROCEDURE DO NOT SMOKE WHILE LIGHTING GRILL OR CHECKING GAS SUPPLY CONNECTIONS! Set ALL BBQ Grill control knobs to “OFF” Control Knob and open gas supply, LP cylinder or Natural Gas Valve. Control Knob ‘OFF’ Position HIGH’ LIGHTING MAIN BURNER(S): 1) Become familiar with the safety guidelines at the front of the manual.
  • Page 14 TO LIGHT GRILL WITH A FIREPLACE-TYPE MATCH NOTE: To light gas grill with a fireplace-type match, Remove cooking grid and flame tamer from burner you wish to light. Use provided Lighting Rod to hold a lighted fireplace type match or long-necked butane lighter placing flame near to burner ports.
  • Page 15 COOKING COMPONENT INSTALLATION, CAUTION, BEFORE YOU START: Turn off the gas supply at the gas supply source first It is recommended you use protective gloves while operating the grill or when handling any components with transferred heat temperature. Do not move the grill during use. Check gas valve orifices, burner tubes and burner ports for any obstructions PER DRAWING BELOW: Place stainless steel heat shields on lowest ledge under / between burners in grill insert.

  • Page 16: Rotisserie System Operation

    ROTISSERIE SYSTEM INSTALLATION TO ANGUS GRILL 1) The trolley thumb screw should be located on the inside of the grill, screw the knurled nut on next, next add the counterweight followed by screw on the black handle. 2) SETTING THE COUNTERWEIGHT, the purpose of the counterweight is to balance the rotation and prevent lopsided movement of the motor.

  • Page 17: Burner Removal Instructions

    There is no need to replace the cotter pins, they are for shipping purposes only. You can also refer to our video for help at https://bullbbq.com/video/how-remove-cotter-pins-bull-grill Each burner is held to the grill by a cotter pin. The detail below shows how to remove the cotter pin.
  • Page 18 REMOVING THE BURNERS FROM YOUR GRILL (CONTINUED) To remove burners, remove cotter pin and lift the burner out of the retaining hole enough to clear so you slide the burner free from the gas valve tip as shown. To re-install burners, install burner back on gas valve tip far enough to allow the burner retainer post to go GAS VALVE TIP BURNER BURNER INSPECTION INSTRUCTIONS:...

  • Page 19: Installing Burners Back Into Grill

    INSTALLING BURNERS BACK IN GRILL Note, there is no need to use the cotter pin while installing the back into position. It is for shipping purposes only. IMPORTANT NOTE Check the burner to make sure it is proper located after replacing. Make sure the valve orifices are inside the burner tubes (see illustration below).

  • Page 20: Grill Lighting System Light Bulb Replacement

    GRILL LIGHTING SYSTEM LIGHT BULB REPLACEMENT INSTRUCTIONS Remove screw with a small Phillips screwdriver. Caution: Glass cover may be loose, ensure the cover supported before completely removing the screw. GLASS COVER There is a metal clip that clamps onto the glass cover and snaps into the light housing on the screw end.

  • Page 21: Annual Cleaning & Maintenance

    Grease will not be able to drip down into the grease collector and a grease fire could occur. It is that you use Bull Grease Tray Liners for ease clean up and maintenance. STAINLESS STEEL CLEANING AND MAINTENANCE Your Grill’s outstanding lustre and durability is attributed to Stainless Steel construction.
  • Page 22 CLEANING (CONTINUED) REQUIRED INSTALLATION, OPERATION AND MAINTENANCE INSTRUCTIONS THAT MUST BE FOLLOWED PER ANSI Z210.58-CSA 1.6-2019 SECTION 4.24.2a FOR ALL OUTDOOR COOKING GAS APPLIANCES. I. Installation must conform with local codes or, in the absence of local codes, with either of the following as applicable: a.

  • Page 23: Troubleshooting

    TROUBLESHOOTING NEVER SMOKE DURING TROUBLESHOOTING IF GRILL FAILS TO OPERATE PROPERLY / Turn off gas at source, turn control knobs to “OFF”, and wait five minutes before trying again. / Check gas supply/connections. Repeat lighting procedure. If Grill still fails to operate properly, TURN “OFF” GAS AT SOURCE, TURN CONTROL KNOBS TO “OFF”, wait for grill to cool, and check for the following potential causes below and how to address: MISALIGNMENT OF BURNER TUBE(S) OVER ORIFICE(S) / CORRECTION: Reposition burner tube to properly seat over orifice.
  • Page 24 Before you start, be sure to contact your gas supplier or your Bull Grill Dealer who will be ready to supply the correct conversion kits needed.
  • Page 25 Any item with a next to it requires a serial number) # NO. USED IN WARRANTY PARTS LIST PART DESCRIPTION PERIOD ILLUSTRATION BULL * INDICATES GRILL (YEARS) (NEXT PAGE) PART NO. SERIAL NUMBER REQUIRED 47003 INSERT ASSEMBLY (2016 & OLDER MODELS)
  • Page 26 OUTLAW GRILL REPLACEMENT PARTS ILLUSTRATION WARNING:Use of any part that is not factory authorized will void your warranty and may be dangerous.
  • Page 27 LONESTAR SELECT GRILL REPLACEMENT PARTS LIST MODEL #87048 LP & #87049 NG ( Any item with an * next to it requires a serial number) NUMBER USED ON BULL DESCRIPTION WARRANTY ILLUSTRATION, PG 33 PART NO. * SERIAL NUMBER REQUIRED...
  • Page 28 LONESTAR SELECT GRILL REPLACEMENT PARTS ILLUSTRATION WARNING:Use of any part that is not factory authorized will void your warranty and may be dangerous.
  • Page 29 ANGUS GRILL REPLACEMENT PARTS LIST MODEL #47628 LP & #47629 NG ( Any item with an * next to it requires a serial number) NUMBER USED ON BULL DESCRIPTION WARRANTY ILLUSTRATION, NEXT PART NO. * SERIAL NUMBER REQUIRED PERIOD (YEARS)
  • Page 30 ANGUS GRILL REPLACEMENT PARTS LIST ILLUSTRATION WARNING:Use of any part that is not factory authorized will void your warranty and may be dangerous.
  • Page 31 ROTISSERIE SYSTEM PARTS LIST WITH EXPLODED ILLUSTRATION AND INSTALL INSTRUCTIONS REF # PARTS # DESCRIPTION 16552 110 VAC MOTOR W/SWITCH 16554 MOTOR MOUNT BRACKET 16551 30" GRILL SPIT ROD 16553 LARGE 4-PRONG SPIT FORK 16591 SHAFT COLLAR 16587 1/4-20 X 1/2 THUMBSCREW 16675 KEY WASHER 16586...
  • Page 32 MAY NOT APPLY TO YOU. WHO MAY USE THIS WARRANTY? BULL OUTDOOR PRODUCTS, INC. located at address 1011 East Pine St. Lodi, CA. 95240 ("we") extend this limited warranty only to the consumer who originally purchased the product ("you") at the original site of delivery or installation.
  • Page 33 Warranty Policy (Continued) The following parts are covered for one year on all our current gas grill models: Grill Warranty Periods • The lid, control panel, grease tray, bezels, knobs, temperature gauge, valves, regulator, flex tubes, rotisserie burner, transformer, and all components of the lighting system. The following parts are covered for three years on all our current gas grill models: The manifold, handle end caps, flame tamers, heat shields, and warming rack.
  • Page 34 Warranty Policy (Continued) This limited warranty does not cover any damage due to: (a) transportation; (b) storage; (c) improper WHAT DOES THIS WARRANTY NOT COVER? installation or use; (d) use on improper fuel/gas supply; (e) failure to follow the product instructions or to perform any preventive maintenance;...
